Siemens SIPROTEC 5 Hardware Description

Figure
Connector type 1 x duplex LC
Wavelength λ = 1300 nm
Baud rate 2 Mbit/s for the protection-interface communication
Protocol Protection-interface communication
Max. line length 60 km for singlemode optical fibers or
8 km with multimode optical fiber
Distance 8 km
Laser class 1 as per EN 60825-1/-2 With the use of 62.5 μm/125 μm and 50 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in
multimode optical fiber
-5.0 dBm
avg
0 dBm
avg
Receiver sensitivity -34.0 dBm
avg
-34.5 dBm
avg
Optical budget 29.0 dB –
i
i
NOTE
If you use the protection-interface module USART-AG-1LDFO for distances under 4 km, then connect
2 attenuators 7XV5107-0AA00. To continue using the Duplex LC plugs, attach both attenuators at one end
of the remote connection (see the following figure).

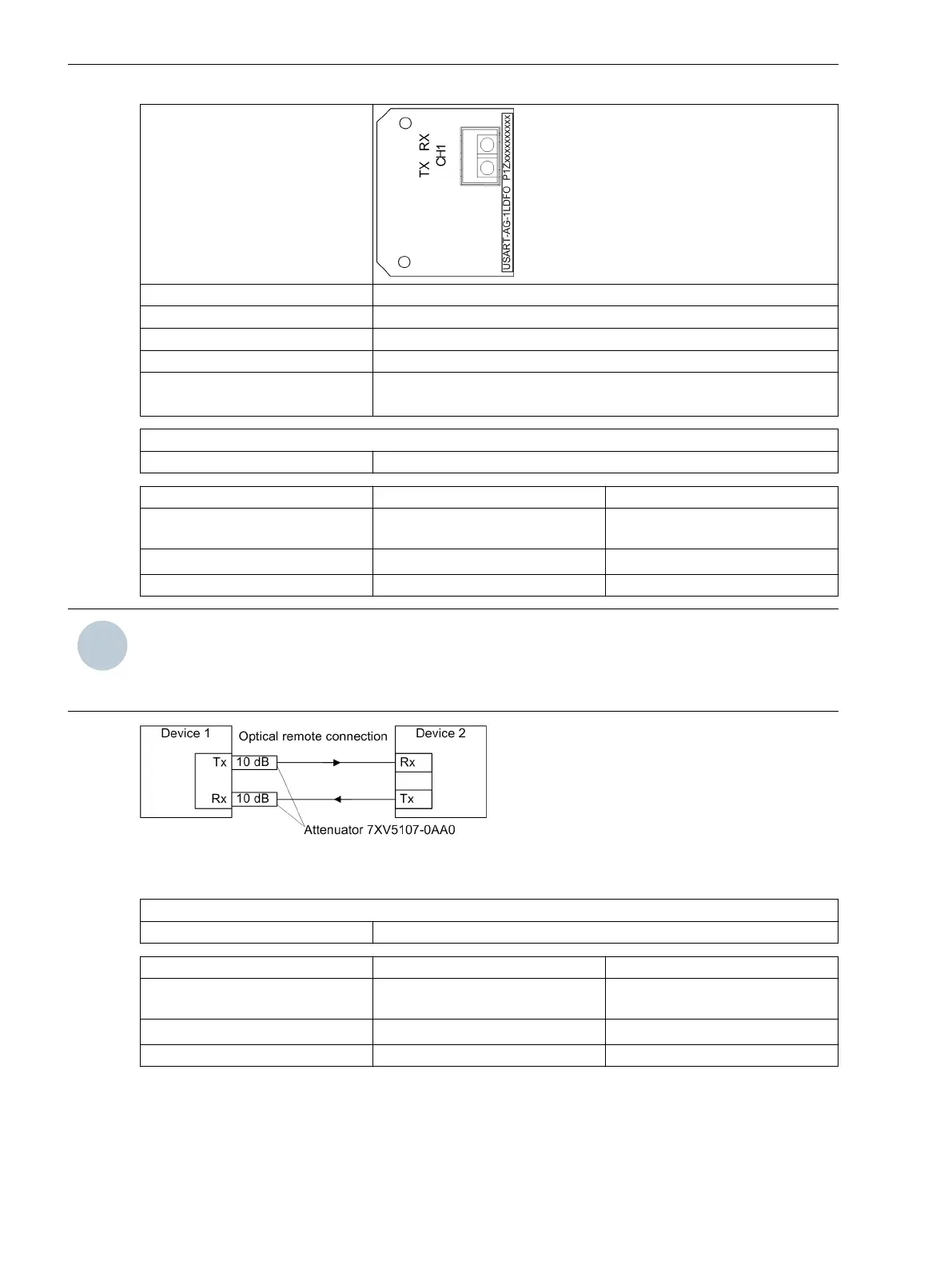

[dwdaempf-030211-01.tif, 2, en_US]
Figure 4-7 Optical Remote Connection with Attenuators
Distance 60 km
Laser class 1 as per EN 60825-1/-2 With the use of 9 μm/125 μm optical fibers
Minimum Maximum
Transmitter power coupled in
singlemode optical fiber
-5.0 dBm
avg
0 dBm
avg
Receiver sensitivity -34.0 dBm
avg
-34.5 dBm
avg
Optical budget 29.0 dB –
Plug-In Modules
4.2 Communication Modules
140 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017
