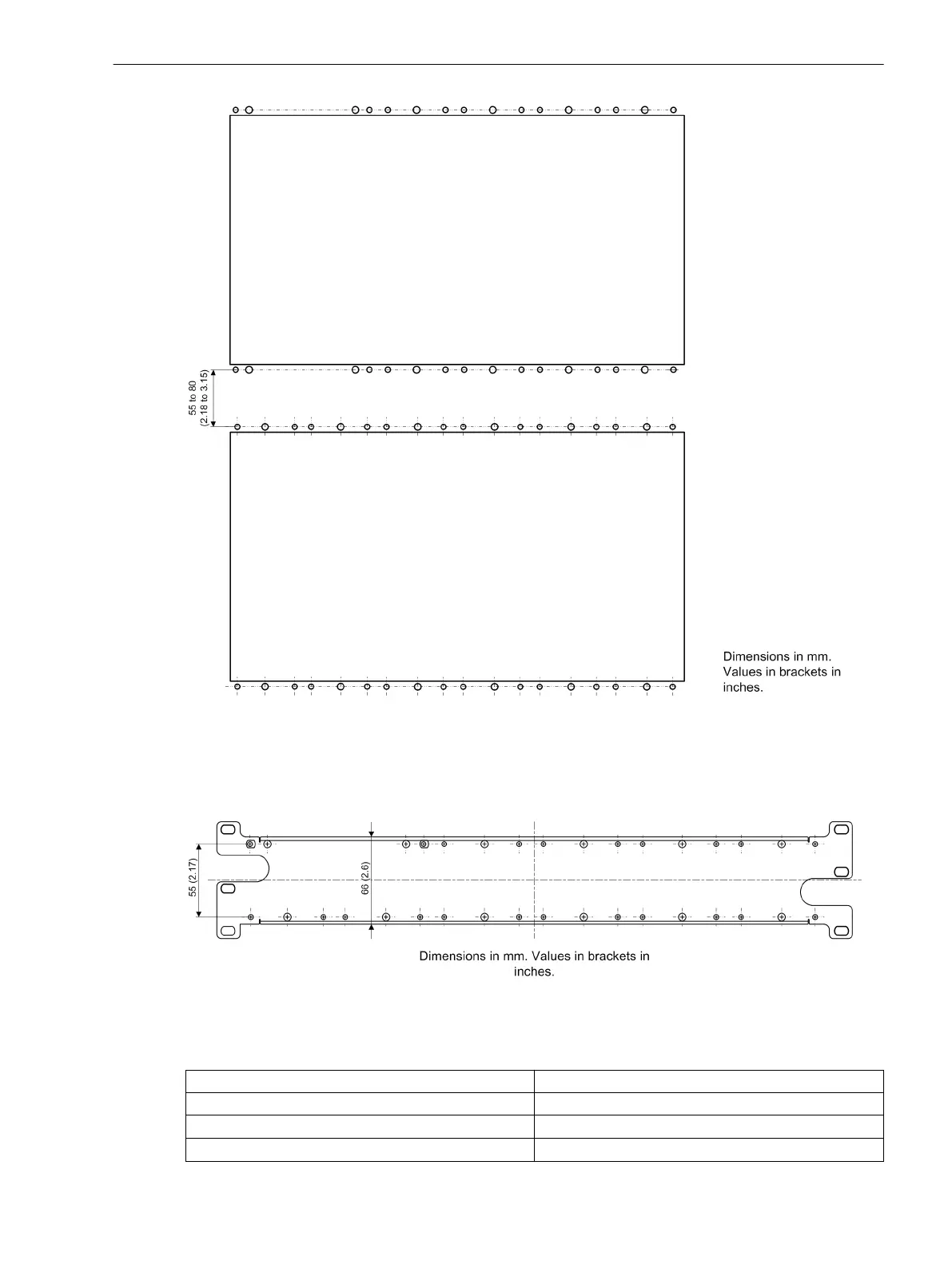

Figure 6-11
Drilling Pattern – 1/1 Devices, 1st and 2nd Device Row
Siemens recommends a drilling space of at least 55 mm (2.17 in) between the 1st and 2nd device row. Due to
the connecting-cable length, the maximum space may be approx. 80 mm (3.15 in). The length of the cable is
890 mm (35.04 in) from the center of the plug to the center of the plug.
[dw_angle rail, 1, en_US]
Figure 6-12 Angle Rail for Connection of the 1st and 2nd Device Row
Table 6-6 Cut-Out Widths
Width of the Assembly Opening in mm (in Inches)
1/3 device (base module)
146
+2
mm (5.75
+0.08
)
1/2 device (base module with one expansion module)
221
+2
mm (8.7
+0.08
)
2/3 device (base module with 2 expansion modules)
296
+2
mm (11.65
+0.08
)
Technical Data
6.14 Assembly Dimensions
SIPROTEC 5, Hardware Description, Manual 221
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
