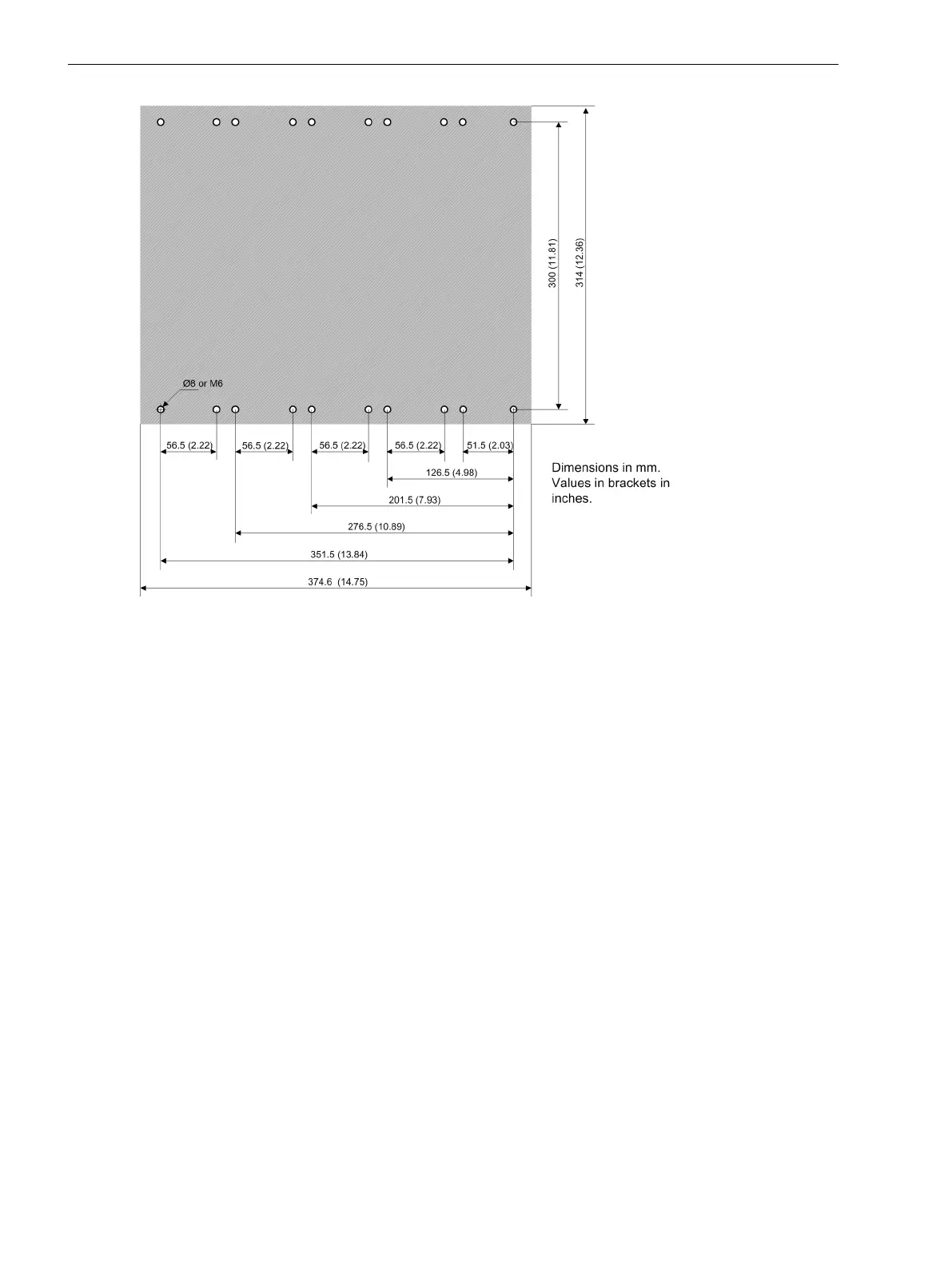

Siemens SIPROTEC 5

Inputs for Optical Sensors for Arc Protection (via Module ARC-CD-3FO)
Connector type AVAGO AFBR-4526Z
Number of transceivers 3
Fiber type Plastic Optical Fiber (POF) 1 mm
Receiver
Maximum -10 dBm ± 2 dBm
Minimum -40 dBm ± 2 dBm
Spectrum 400 nm to 1100 nm
Attenuation In the case of plastic optical fibers, you can expect a path attenuation of
0.2 dB/m. Additional attenuation comes from the plug and sensor head.
Optical budget
18
Minimal 25 dB
Analog sampling rate 16 kHz
ADC type 10-bit successive approximation
Transmitter
Type LED
Wavelength λ = 650 nm
Transmitter power Minimum 0 dBm
Maximum 2 dBm
Numerical aperture
0.5
19
Signal rate connection test 1 pulse per second
Pulse duration connection test 11 μs
Fast Measuring Transducer Inputs, Voltage/Current (via IO210, IO212)
i
i
NOTE
Current and voltage must not be connected at the same time to one measuring transducer input. Instead,
only connect either current or voltage. For EMC reasons, do not connect a line to an unused input (current
or voltage).
Use shielded cables.
Table 6-1 Fast Measuring Transducer Inputs, Voltage
Differential voltage input channels
IO210: 4
20
IO212: 8
21
Measuring range DC -10 V to +10 V
Fault < 0.5 % of measuring range
Input impedance 48 kΩ
Max. permissible voltage with
respect to ground on the meas-
uring inputs
300 V
Permissible overload DC 20 V continuously
DC 60 V continuously (IO210 MU3 terminal point C9)
18
All values in combination with sensors approved by Siemens.
19
Numerical aperture (NA = sin θ (launch angle))
20
The IO210 has 4 fast measuring transducer inputs. They can be used either as a voltage or current input.
21
The IO212 has 8 fast measuring transducer inputs. They can be used either as a voltage or current input.
Technical Data
6.1 Analog Inputs
228 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-N, Edition 04.2022
