Siemens SIPROTEC 5

Surface-Mounted Devices with Integrated On-Site Operation Panel (Non-Modular Device)
[dw_console side view, 4, en_US]

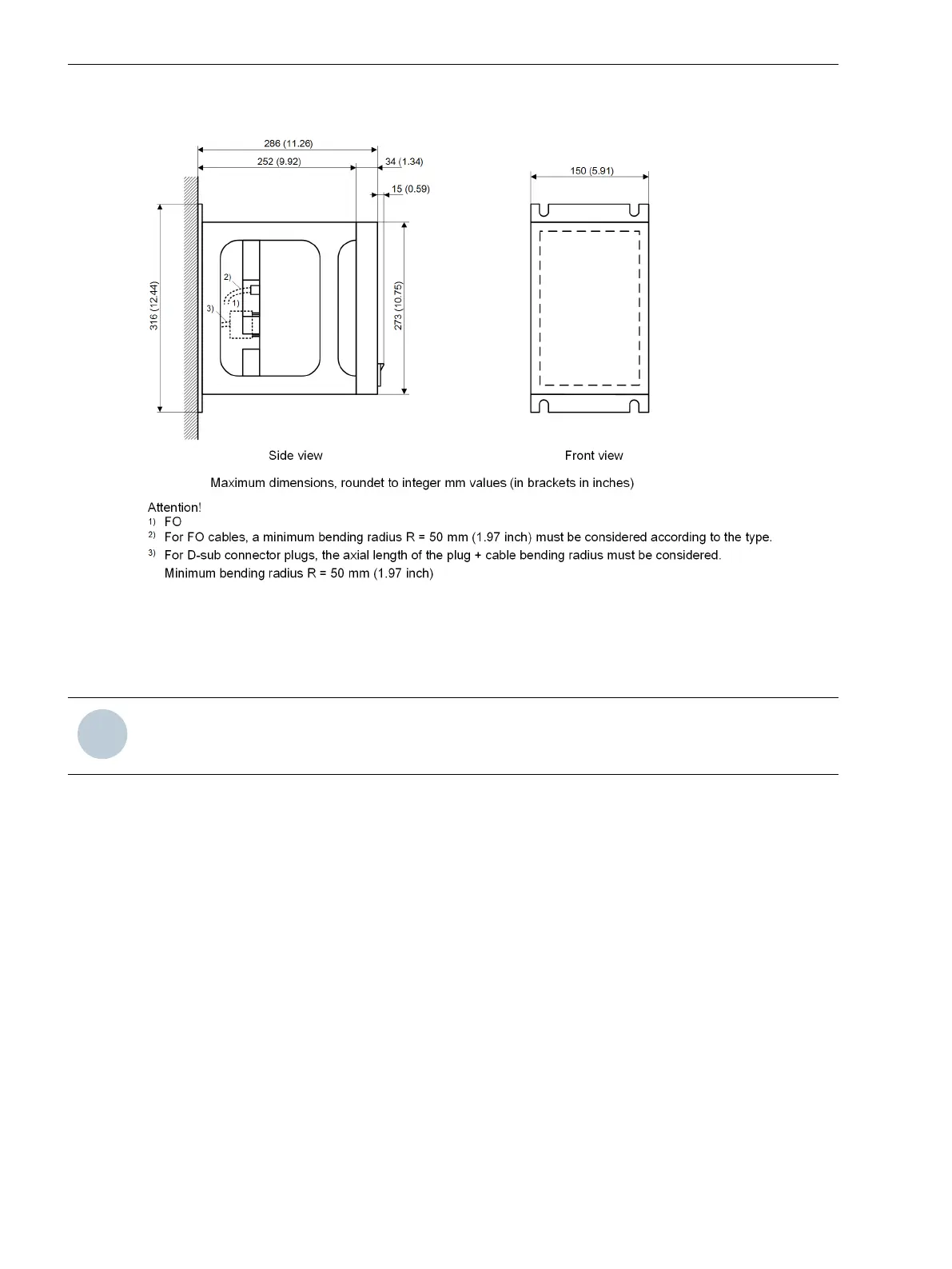

Figure 6-25
Non-Modular Surface-Mounted Device with Integrated On-Site Operation Panel, Dimensions in
the Side and Front Views
Surface-Mounted Devices with Integrated On-Site Operation Panel (Non-Modular Device)
i
i
NOTE
When mounting the surface-mounted devices, ensure that the holes are dimensioned for a screw size M6.
Technical Data
6.14 Assembly Dimensions
