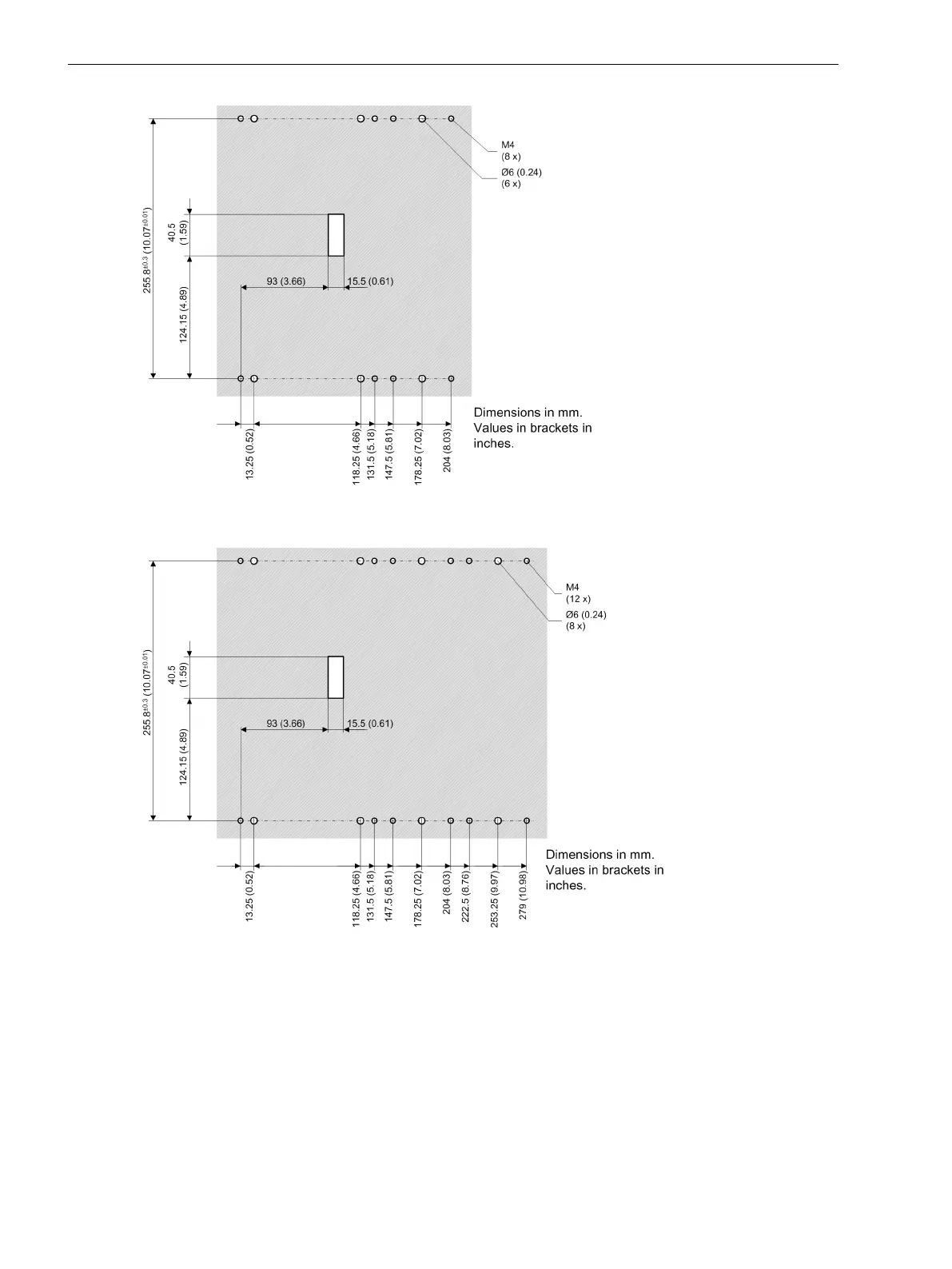

Figure 6-28 On-Site Operation Panel Drilling Pattern of the 1/2 Device
[dw_z1_osop_2-3, 1, en_US]
Figure 6-29 On-Site Operation Panel Drilling Pattern of the 2/3 Device
Technical Data
6.14 Assembly Dimensions
274 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-N, Edition 04.2022
