Siemens SIPROTEC 5 Hardware Description

[dwkl2pol-030211-01.tif, 1, --_--]

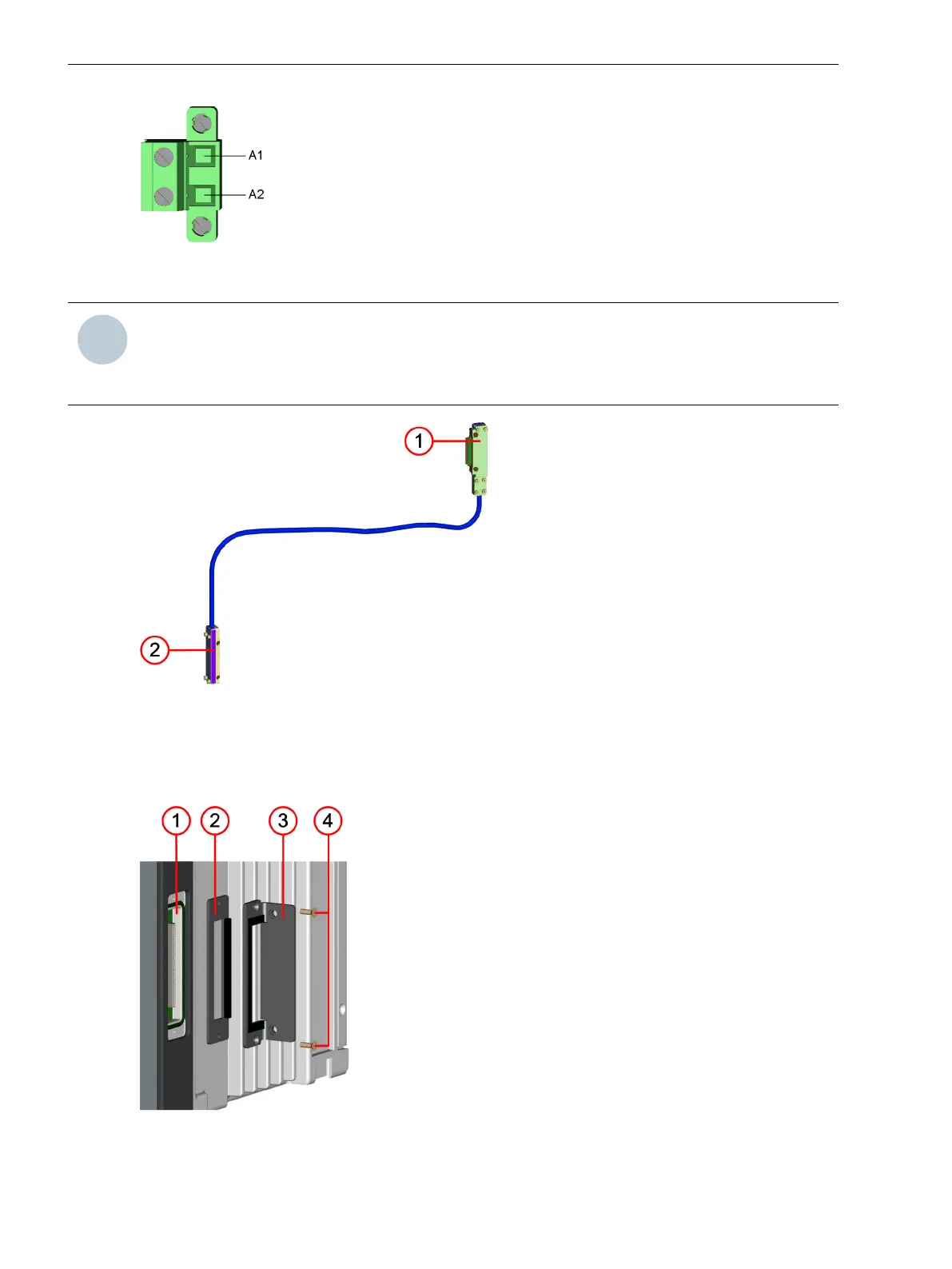

Figure 3-6 Connection of External Power Supply
i
i
NOTE
When expanding a device with the 2nd device row, you must install the connecting cable for the 2nd
device row together with the associated angle rail. All required components are included with a power-
supply module PS203.
[dw_kabel1-020414-01, 1, --_--]
Figure 3-7 Connecting Cable for the Connection of a 2nd Device Row
(1) Handle mold for the connection to the 1st device row
(2) Handle mold for the connection to the 2nd device row
[dw_winkel-020414-01, 1, --_--]
Figure 3-8 Sealing Plate and Adaptor Bracket for the Expansion Module of the 1st Device Row
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
50 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-C, Edition 10.2017

Siemens SIPROTEC 5 Specifications

General

Series	SIPROTEC 5
Communication Protocols	IEC 61850, DNP3, Modbus
Cybersecurity	Role-based access control, secure communication
Modular Design	Yes
Hardware Redundancy	Optional
Operating Temperature	-25°C to +70°C
Digital Inputs	Configurable, number depends on I/O modules
Digital Outputs	Configurable, number depends on I/O modules
Analog Inputs	Configurable, number depends on I/O modules
Current Transformer Inputs	Configurable, number depends on I/O modules
Voltage Transformer Inputs	Configurable, number depends on I/O modules
Time Synchronization	IRIG-B, SNTP, PTP
Protection Functions	Overcurrent, Differential, Distance, Over/Under Voltage, Frequency
Housing	19-inch Rack Mount
Dimensions	Depends on module configuration
Weight	Depends on module configuration
Voltage Input	24V DC, 48V DC, 110V DC, 125V DC, 220V DC, 250V DC
