Siemens SIPROTEC 5

•
2nd device row:
– Mounting position 7: PS203

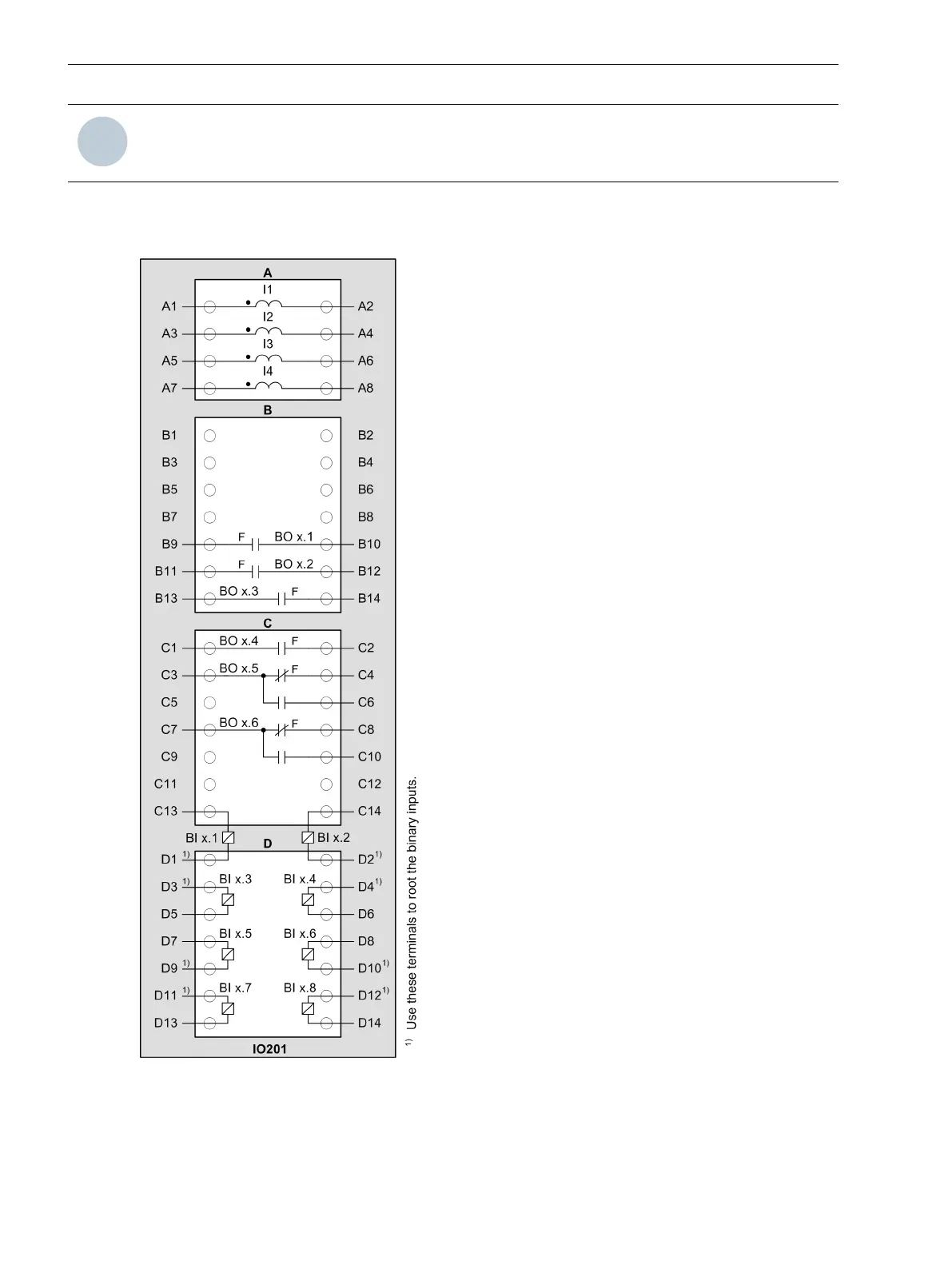

– Mounting positions 8 to 11: IO2xx
– Mounting position 12: PS204
[dw_module_position_PS204, 1, en_US]
Figure 3-10
Arrangement of Modules with 2 PS204 Modules – Rear View
There is an exception if a CB202 PCB assembly with integrated power supply is to be used: The CB202 PCB
assembly with integrated power supply must always be positioned to the right (front view) of the PS204
module in the 1st or 2nd row.
Electronic Modules
3.1 Power-Supply Modules of the Modular Devices
56 SIPROTEC 5, Hardware Description, Manual
C53000-G5040-C002-N, Edition 04.2022
