Siemens SIPROTEC 5

Input and Output Modules of the Modular Devices
Function Description of the Input and Output Modules of the Modular Devices
Module Designation Function Description
IO201
•
Input and output module
•
4 current measuring inputs, 8 binary inputs, 6 binary outputs
IO202
•
Input and output module
•
4 current measuring inputs, 4 voltage measuring inputs, 8 binary inputs,
6 binary outputs

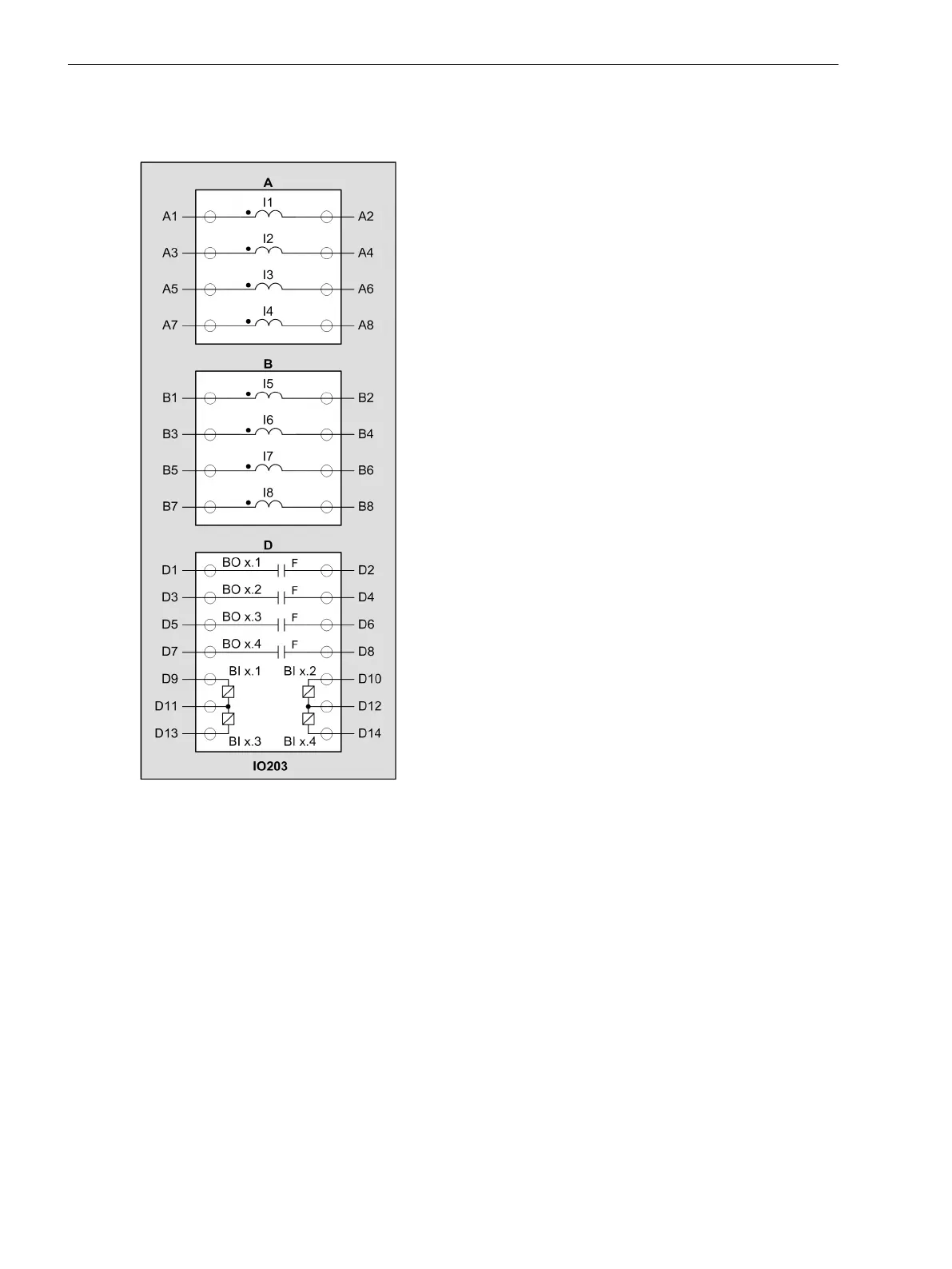

IO203
•
Input and output module
•
8 current measuring inputs, 4 binary inputs, 4 binary outputs
IO204
•
Input and output module
•
10 binary inputs, 4 binary outputs, 4 power relays for controlling 2 motors
IO205
•
Input and output module
•
12 binary inputs, 16 binary outputs
IO206
•
Input and output module
•
6 binary inputs, 7 binary outputs
IO207
•
Input and output module
•
16 binary inputs, 8 binary outputs
IO208
•
Input and output module
•
4 current measuring inputs, 4 voltage measuring inputs, 4 binary inputs,
11 binary outputs
IO209
•
Input and output module
•
8 binary inputs, 4 high-speed binary outputs (semiconductor accelerated)
IO210
•
Input and output module
•
4 current measuring inputs, 3 voltage measuring inputs, 4 high-speed meas-
uring-transducer inputs for current or voltage, 7 binary outputs
IO211
•
Input and output module
•
8 voltage inputs, 8 binary inputs
IO212
•
Input and output module
•
8 high-speed measuring-transducer inputs for current or voltage, 8 binary
inputs
IO214
•
Input and output module
•
4 current measuring inputs, 4 voltage measuring inputs, 2 binary inputs,
5 binary outputs
IO215
•
Input and output module
•
4 current measuring inputs, 4 voltage measuring inputs (measuring range:
7.07 V), 8 binary inputs, 6 binary outputs
IO216
•
Input module
•
16 special binary inputs with maximized robustness against electrical distur-
bances and failures
IO230
•
Input module
•
48 binary inputs
IO231
•
Input and output module
•
24 binary inputs
•
24 binary outputs
