Siemens AG ⋅ January 1999
The operator interface consists of a hierarchically
structured menu tree which can be moved through
with the scroll keys A, ", Y and B to reach every
desired operating object. A general overview is given
in the appendix A.1.
The initial position in the relay which is switched on
and in service, can be left to reach the parameterizaĆ
tion area by pressing the key B. The "SETTINGS"
item appears, which contains all parameter blocks.
With the " key the next operating level is reached.
Initially the operating block for the configuration apĆ
pears. This was dealt with in sections 5.3 and 5.4.
The parameter blocks are reached by pressing the B
key. Block 01 with the "NETWORK and station
DATA" appears first.
Other parameter blocks follow after repeated presĆ
sing of the B key providing the appropriate functions
are available in the device and these have been confiĆ
gured as AVAILable.
Press the " key to jump to the next operating level in
which the actual parameterization, i.e. the setting of
threshold values or selection of offered alternatives
takes place.
If, for example, the " key is pressed, starting at
block 01 ("NETWORK DATA"), the 3rd operating level
with the individual network and station data may be
reached (see Figure 6.2):
01 Wdl.2
IL2
01 Net f
50 Hz
01 NETWORK
DATA
7SD600
V3.0
00 PROSETTING
01 INSEK
1A
01 INPRI
400 A
01 TAUSK
0.15 s

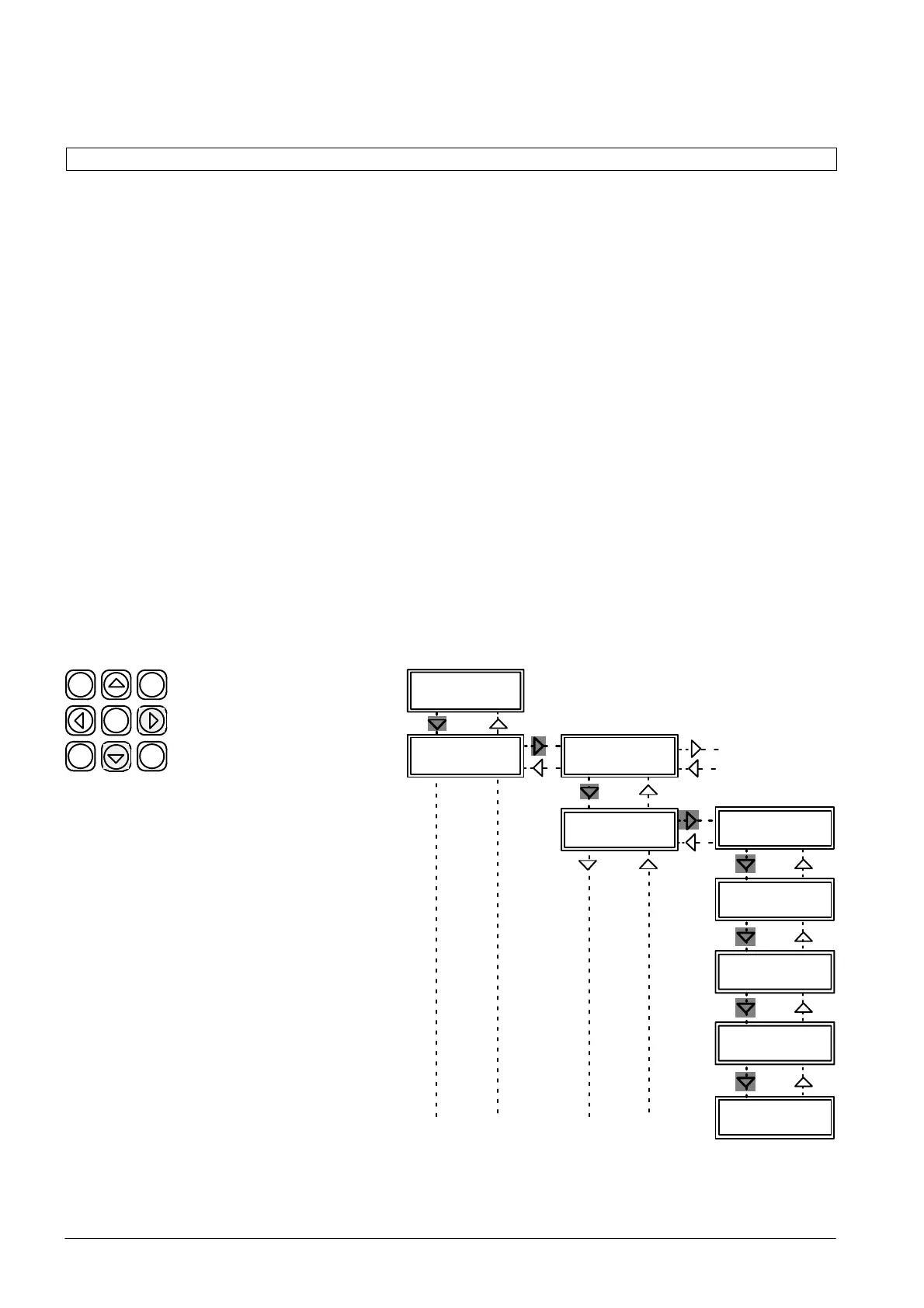

1st operating level 2nd operating level 3rd operating level
Figure 6.2 Selection of parameters for the system and station data
