Functions

7.7 Condition Monitoring

SIRIUS 3RW55 soft starter

Manual, 08/2018, A5E35630887002A/RS-AB/002

127

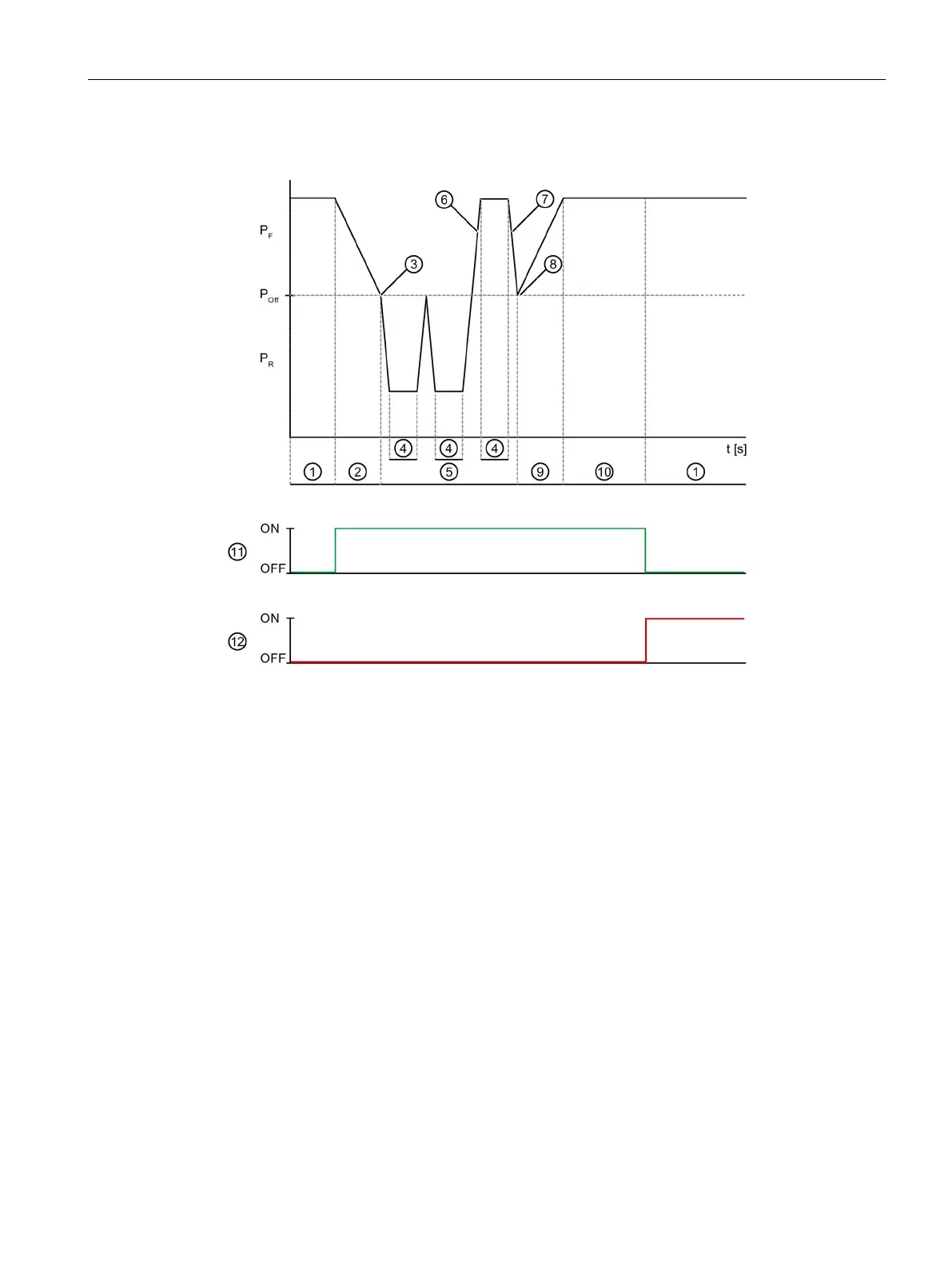

Diagram

①

Operation

②

Operation / stopping

③

Start of the cleaning process with the set pump cleaning start/stop parameters

④

Pump cleaning - time

⑤

Pump cleaning - cycles

⑥

Pump cleaning start

⑦

Pump cleaning stop

⑧

End of cleaning process

⑨

Operation starting

⑩

Monitoring time (3 x pump cleaning - time)

⑪

Pump cleaning active

⑫

Pump cleaning failed

Pump running forward

Off

Pump is off

Pump running in reverse
