Mounting and dismantling
3.4 Installing / mounting / removing 3RW5 HMI High Feature
SIRIUS 3RW55 soft starter
50 Manual, 08/2018, A5E35630887002A/RS-AB/002
Procedure for installing the cable
● Connect the connecting cable of the 3RW5 HMI High Feature to the 3RW55 soft starter.
Pay attention to the coding of the plug and socket.

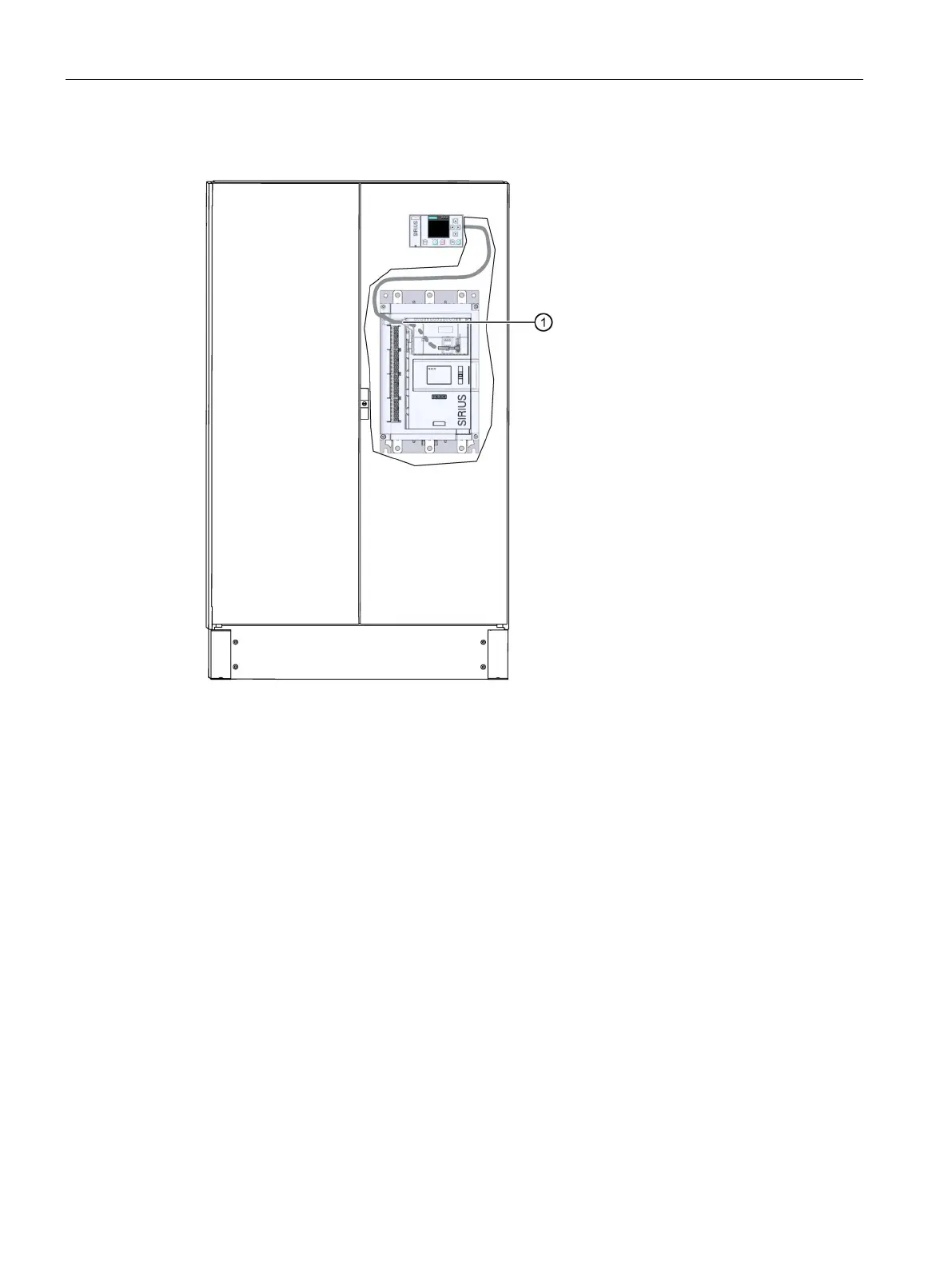

● Use the opening to the cable duct
① to install the cable in the 3RW55 soft starter.
● It is possible to route the cable up or down in the cable duct.
Make sure that you install the cable in accordance with EMC requirements. For example,
route data cables separately from the motor cable. Connect both sides of shielded cables
over a large surface area.
