Functions
8.4 Configuration
ULTRAMAT 23
140 Manual, 3/2016, A5E37100388-003
Status messages

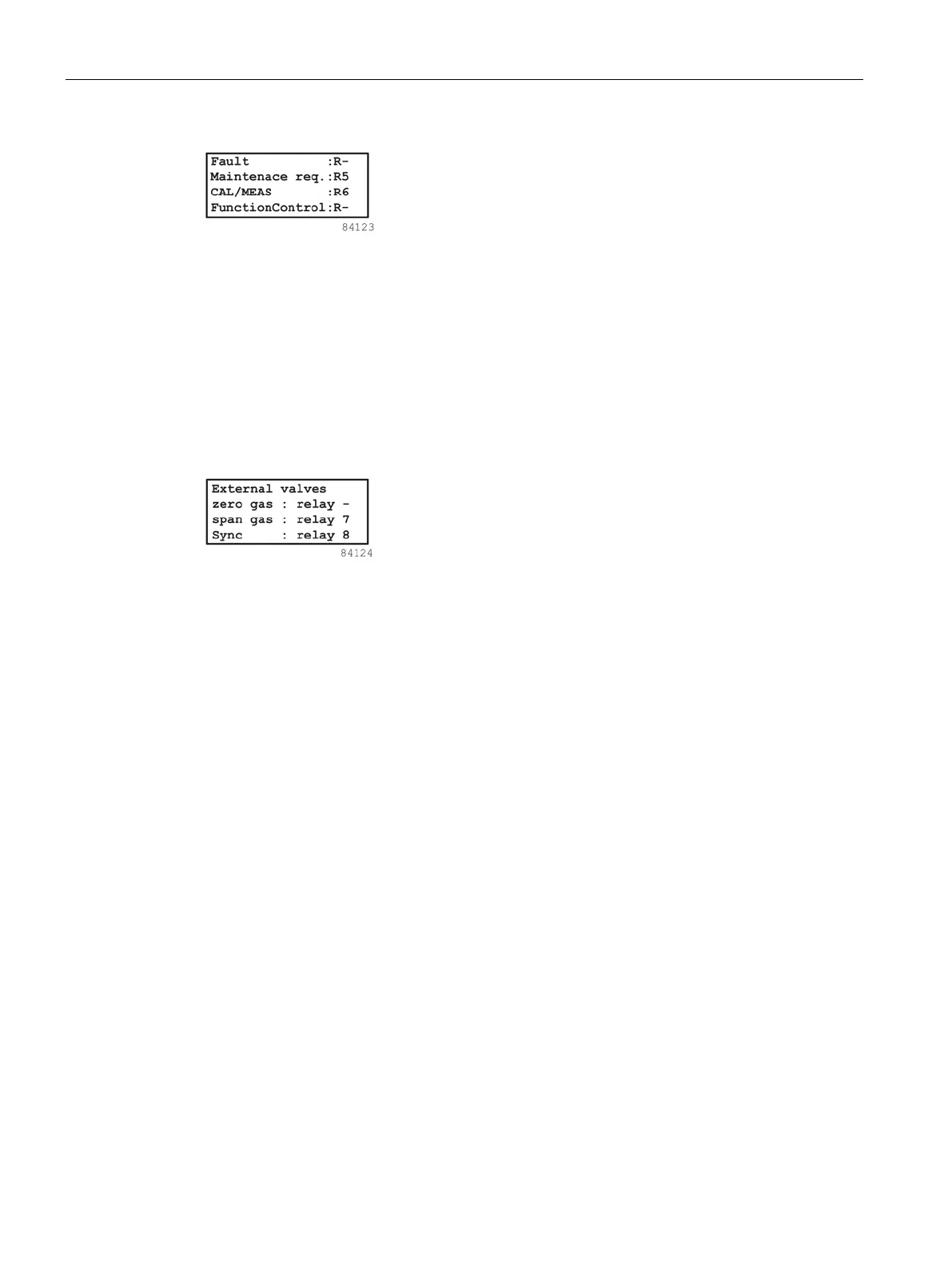

You can use this menu to apply the signaling of various operat-
ing states of the analyzer as an event for relay control
(R in the display means Relay).
The following signals are possible:
•
Fault
:
Occurrence of a fault and output of a fault message
•
Maintenance request
:
Occurrence of maintenance request
(assigned to relay 5 in Fig.)
•
CAL/MEAS
:
Switching over from measuring
mode to AUTOCAL (applied
to relay 6 in Fig.)
•
Service switch
:
Occurrence of a function control.
In this menu you can trigger external solenoid valves via relay
contacts:
•
Zero gas
:
The zero gas supply which is triggered with AUTOCAL
•
Span gas
:
The calibration gas supply (assigned to relay 7 in Fig.)
•
Sync
:
Synchronization of an AUTOCAL with other devices within
a system (assigned to relay 8 in Fig.; see section
System
setup with several analyzers in parallel (Page 84)).
