Refrigerated Centrifuge Sigma 8KS
Refrigerated Centrifuge Sigma 8KBS
Version 08/2012, Rev. 2.5 of 02/07/2018 • sb
Translation of the original operating manual, part no. 0702502
Pos: 141 /100 Sig ma/110 BA Ze ntrifugen Sig ma (Projekte)/8K S_8KBS_8KHB S/060 Betrie b/060-0020-002 0-0060 Blutb eutelsysteme @ 29\mod_1405 327451565_6 8.docx @ 19988 5 @ 4 @ 1
6.2.2.6 Blood bag systems
• All six places on the rotor must be loaded with buckets.
• It is required to fill just two opposite buckets must be filled with one
adapter for blood bags and two blood bag systems each.
• The opposite buckets, including the filled blood bag systems, must have
an equal weight. If the number of blood bags is uneven, a balance
adapter must be used. For taring, several balance weights are
available.
• The blood bags must be put into opposite buckets in a mirror-inverted
way (see figure).
• In both adapter compartments, the main blood bag must be situated
towards the middle. The opposite bucket must be loaded
correspondingly (see figure, item 1).
• When using smaller bag systems or in the case of incompletely filled
blood bags, adapters (e.g. part no. 17750) must be inserted together
with the blood bag systems. This will help to avoid any slipping of the
bags, which could result in an imbalance.

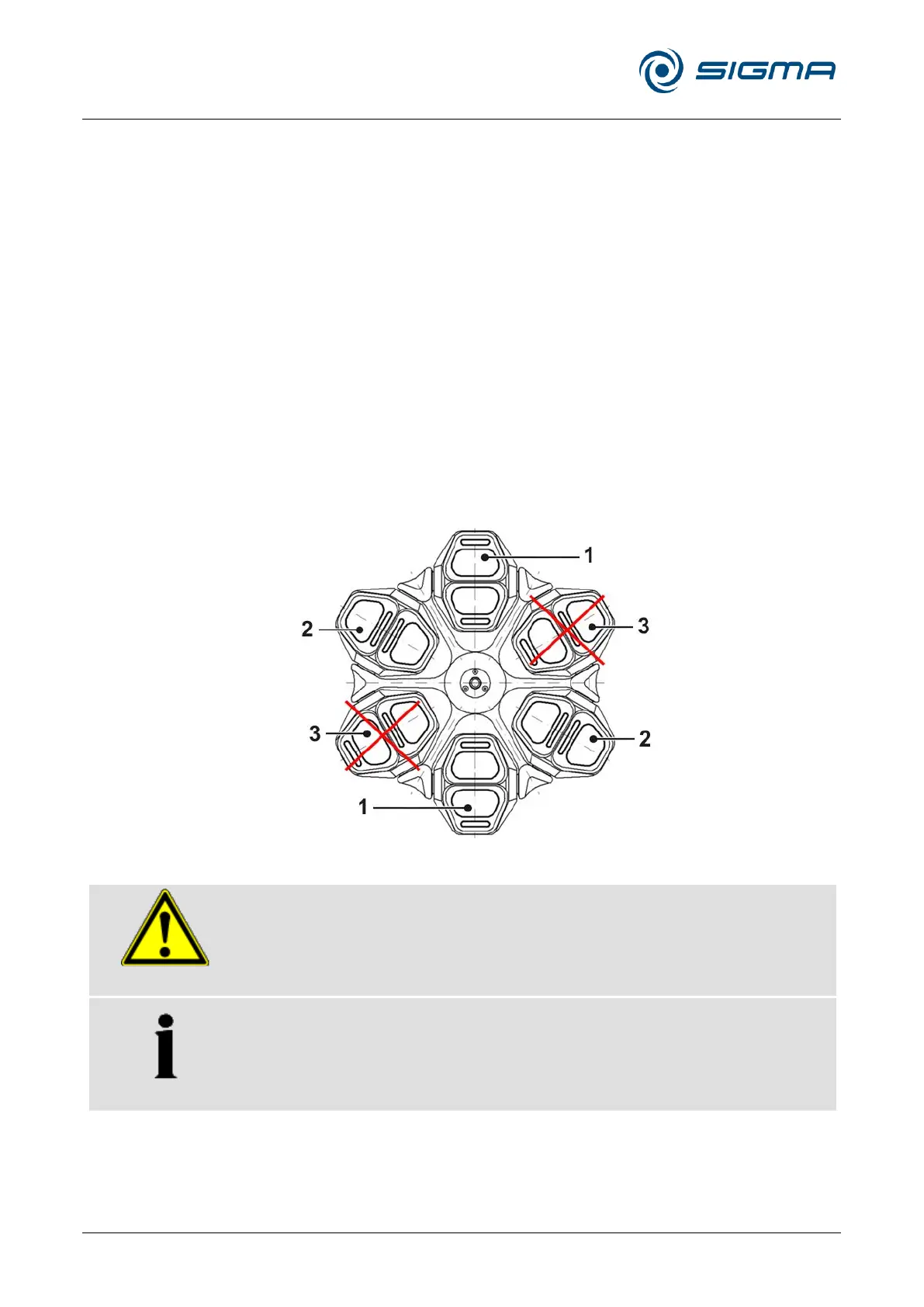

1 Proper loading
2 Possible loading
3 Improper loading
Fig. 21: Loading of blood bag systems
The service life of the adapter for blood bags no. 13867 is limited. Refer to
the table of rotors and accessories with a different service life (see chapter
11.4 - " Table of the service life of rotors and accessories ")!
At maximum speed, the plastic adapter 13867 must not be used at a
temperature above 25°C. If it is used at a considerably lower speed (up to
2,500 rpm), the temperature can be higher than 25°C.
