6.3 Control system "Spincontrol S"
Pos: 144 /100 Sig ma/100 BA Ze ntrifugen Sig ma (Standardmo dule)/060 Betrieb _Spincontr ol L+S/Spinco ntrol S (Zent7)/0 60-0030-0010 Bedienoberfläch e mit Temp eraturanzeige @ 27\mod_1405 320193718_6 8.docx @ 193123 @ 3 @ 1

6.3.1 User interface
The centrifuge is operated via three buttons with integrated light-emitting
diodes and one function knob. The display is divided into several different
fields. The various functions of the system can be called up by pressing
and turning the function knob.
1 Start button
2 Display
3 Function knob
4 Stop button
5 Lid button

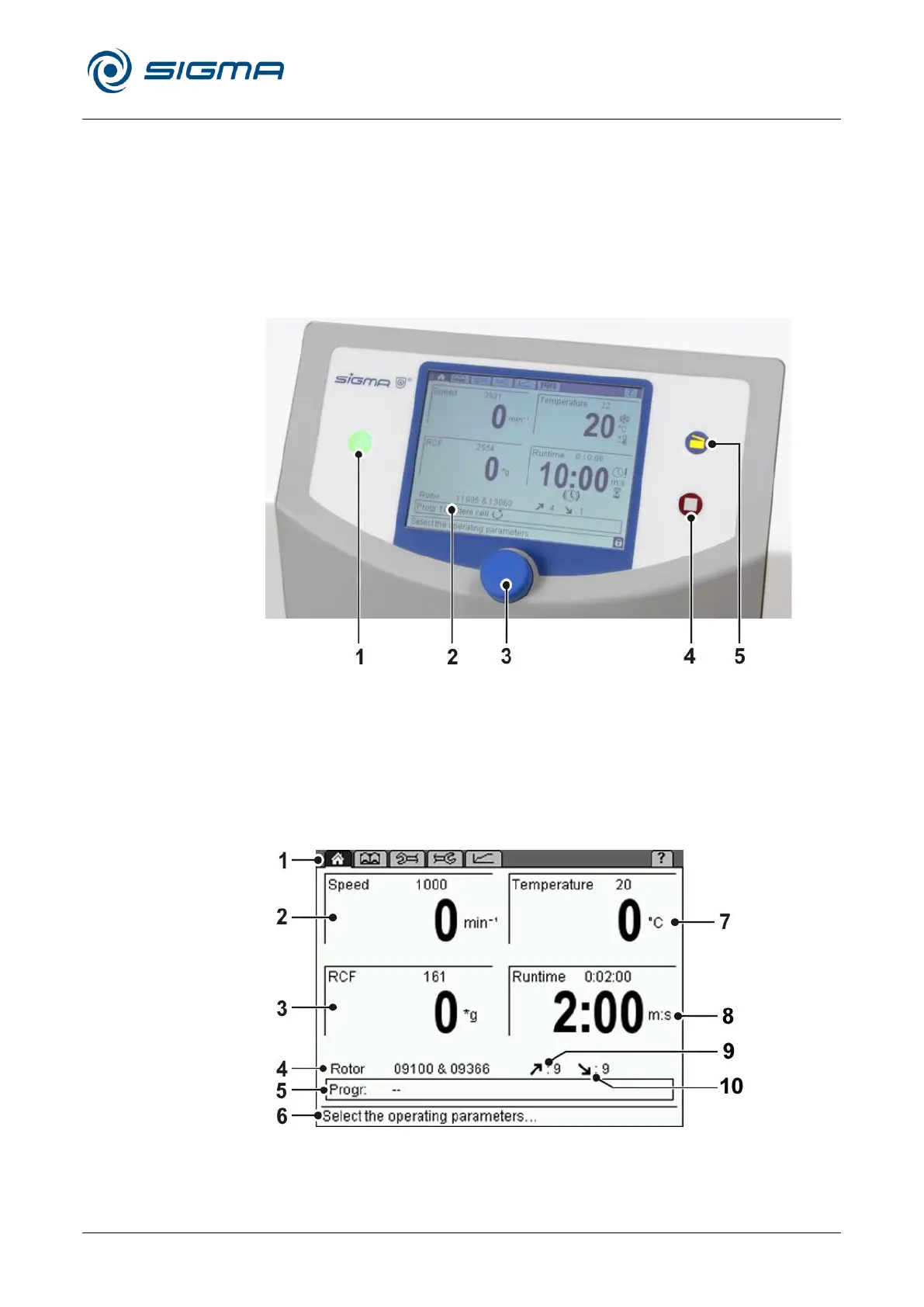

Fig. 22: User interface of the Spincontrol S control system
Display
The centrifuge display has the following fields:
1 Menu bar
2 Speed field
3 RCF field
4 Rotor field
5 Program field
6 Status bar
7 Temperature field
8 Time field
9 Acceleration curve
10 Deceleration curve
Fig. 23: Display of the Spincontrol S control system
