Access Control Installation and Operation
150963 3-7
3.2.3 Wiring the 4300 Swipe Card Reader
Wire the swipe card reader to the 4421 Door Access Module as shown in Figure 3-5. The card
reader LED is on when the door relay is activated. The LED is off when the relay is deacti-
vated or when there is no power. (The 4421 LED has the same meaning.)

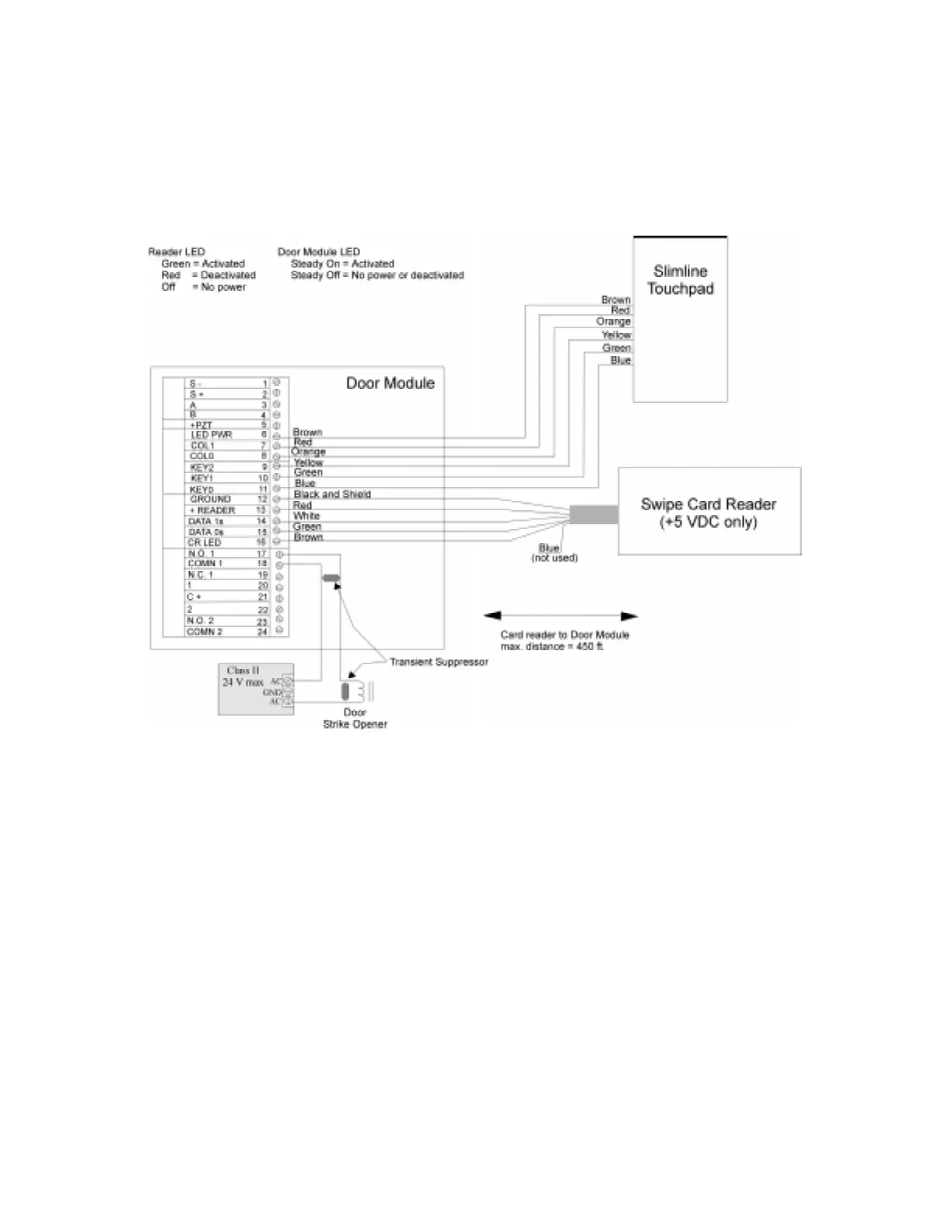

Figure 3-5 Model 4421 to 4300 Connection
