3.3 Wiring the 4860C Touchpad for Door Access
The 4860C commercial touchpad can be used as a door access station. The zone inputs on the
back of the touchpad can be wired to a door contact or could be used for any other purpose.

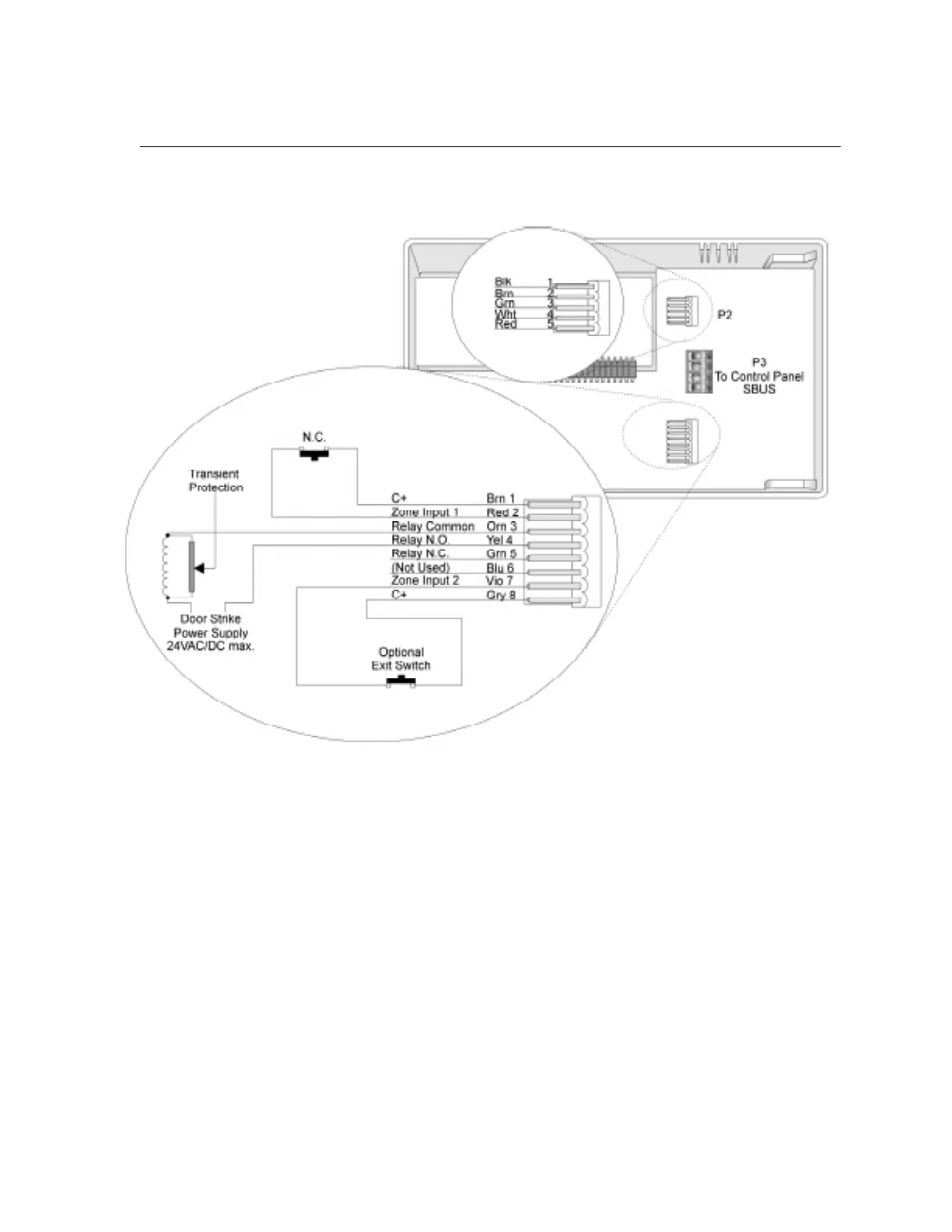

Figure 3-7 Wiring the 4860C Touchpad for Door Access
Connecting wires are included with the card readers.
*Use Cable Assembly
P/N
130375
*Use Cable Assembly
P/N
130378
N-750-
