Model 4821/4820 Control/Communicator Installation Manual
5-4 150965
5.2 Touchpad Models
The touchpads shown in Figure 5-4 can be used with the 4821/4820.

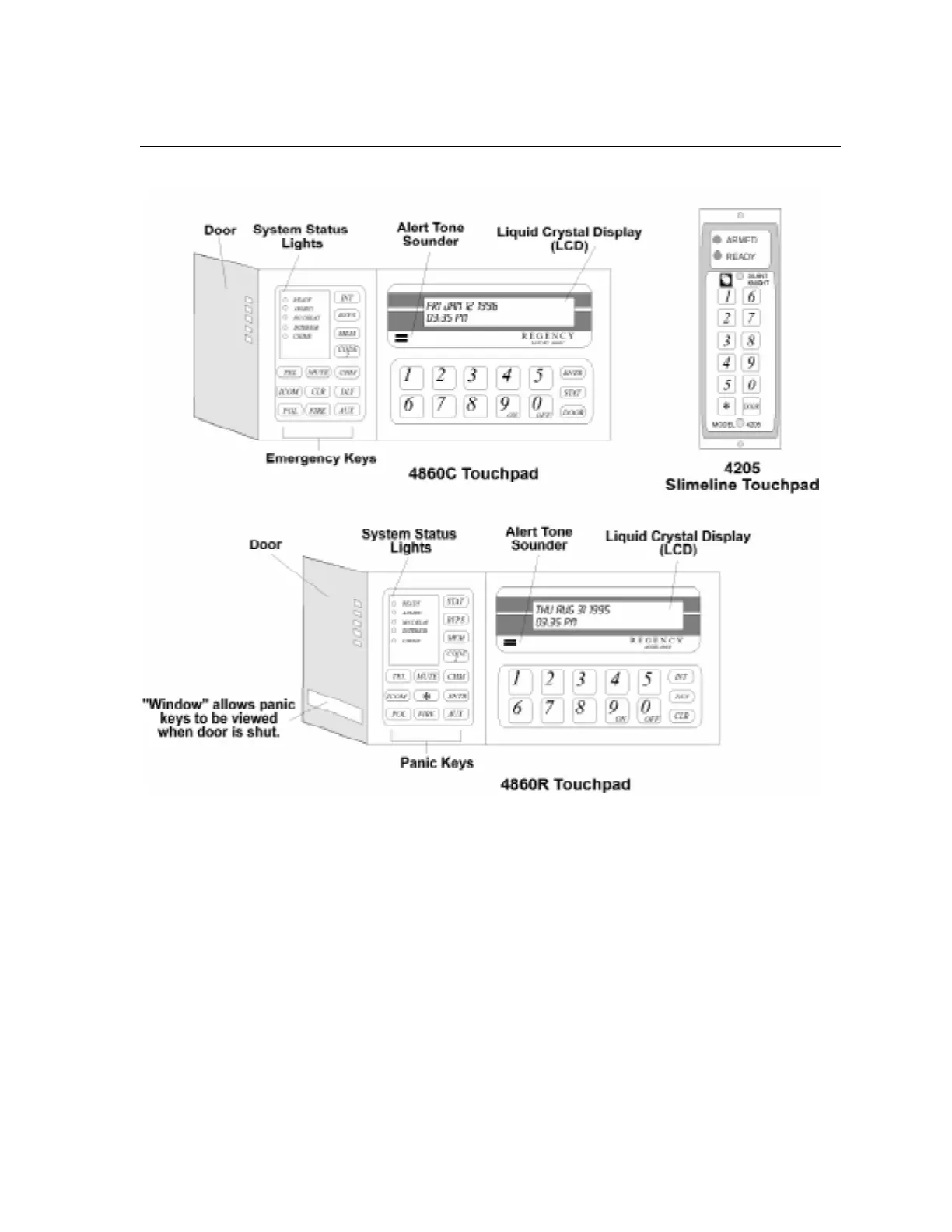

Figure 5-4 Model 4860C Commercial LCD Touchpad, Model 4205 Slimline Door Access Touchpad
and Model 4860R (for Residential burglary. and Fire Installations)
Note: The Model 4205 Slimeline Door Access Touchpad cannot be used with the 4820 control Panel. The Model
4205 is not UL listed for access control.
