Model 4821/4820 Control/Communicator Installation Manual
4-16 150964
4.13.2 Distribution of Modules Between SBUS1 and SBUS2
SBUS modules can be distributed between the two serial buses in any combination.
Note: In a UL installation, each SBUS must have at least one touchpad.

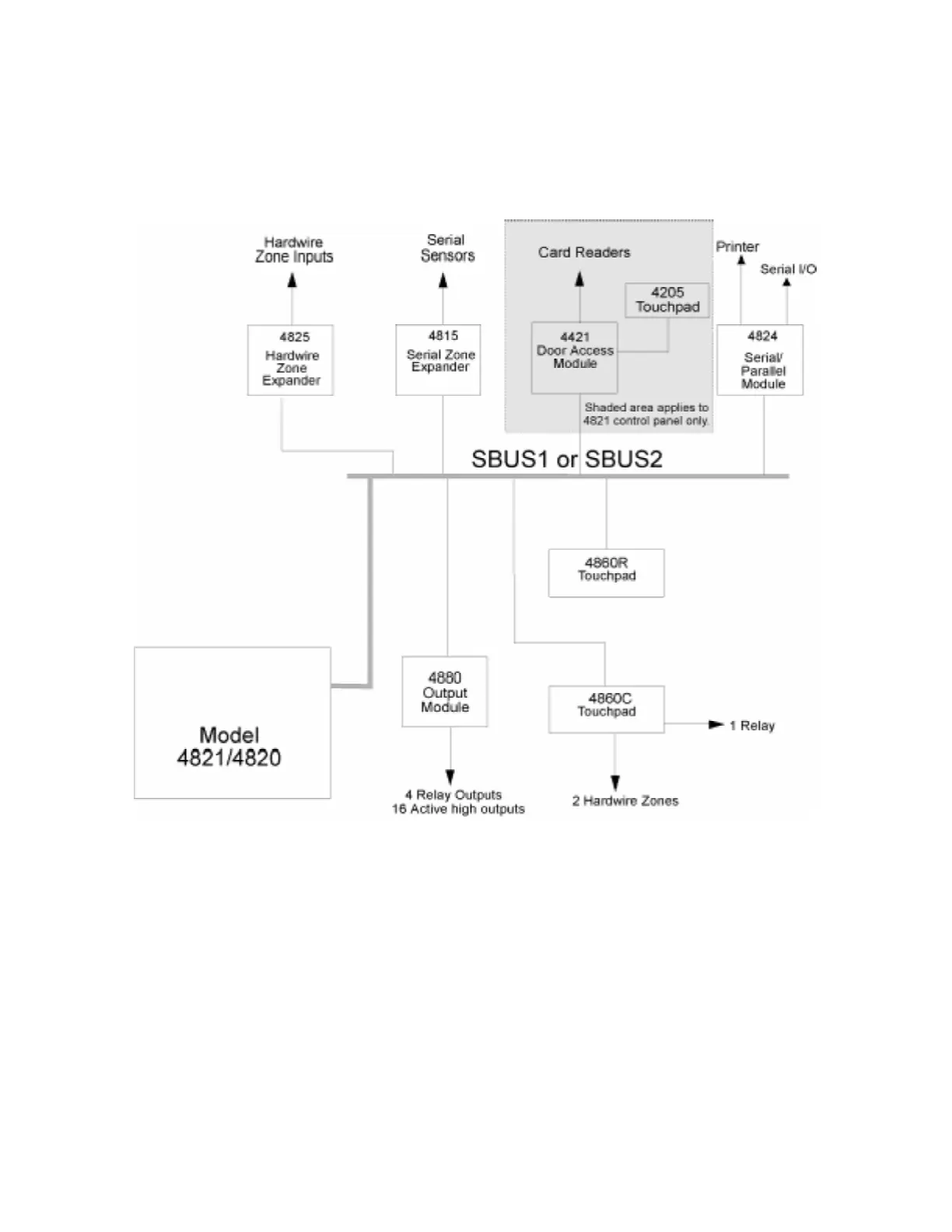

Figure 4-10 Sample SBUS Connections
