Model 4821/4820 Control/Communicator Installation Manual
5-6 150965
5.3.2 Normal Display Messages
Two 2-line messages alternate on the LCD when the system is inactive. These messages dis-
play on all touchpads. Through programming, you can customize the messages for each parti-
tion (see Section 6.3.2.1).

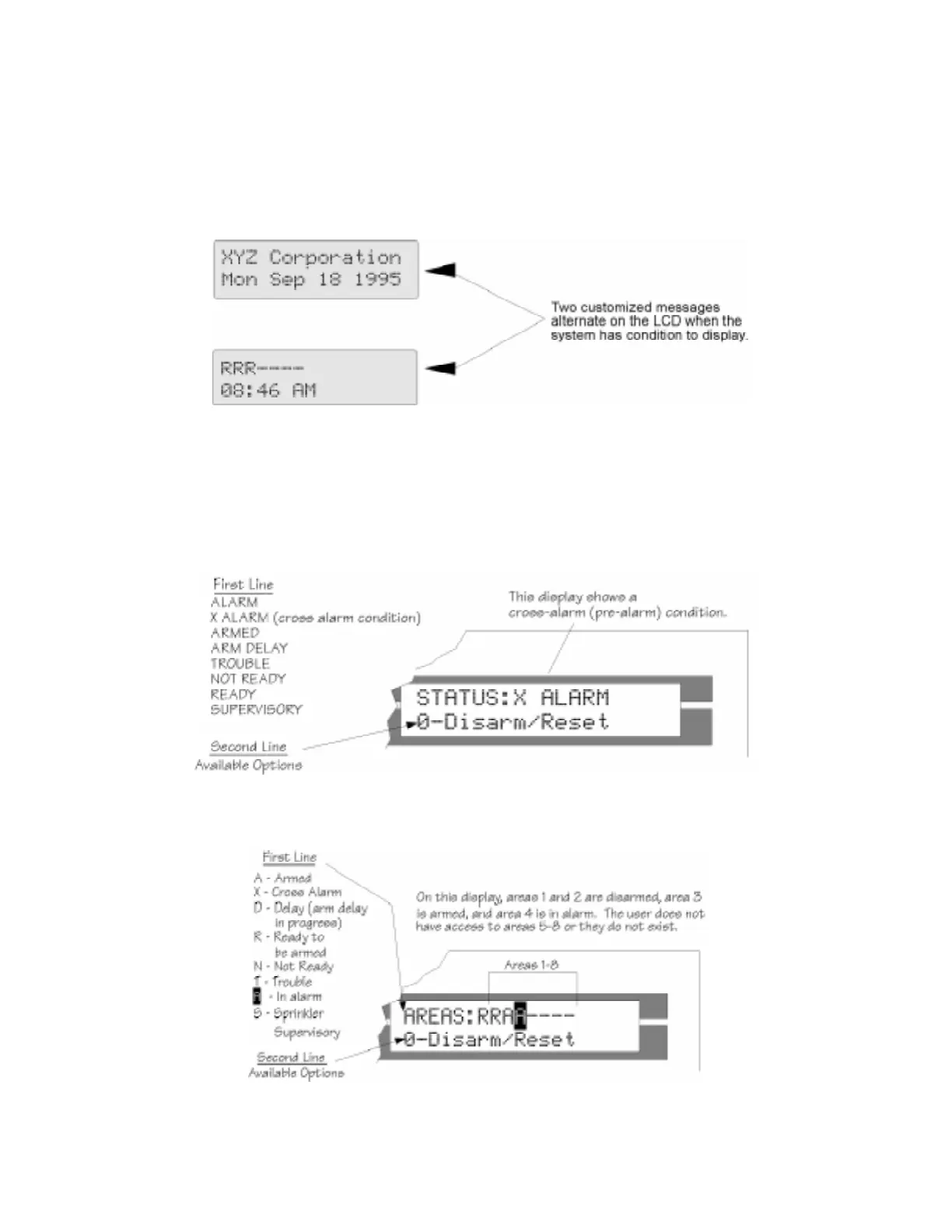

Figure 5-1 Example Normal Display Messages
5.3.3 System Status Messages
Figure 5-1 and Figure 5-2 are examples of messages the system will display when active.
Figure 5-1 Example Status Display Message (Single-Area Menu System)
Figure 5-2 Example Status Display Message (Multi-Area Menu System)
