3.5 Egress Fail-safe Override Application
An egress fail-safe override is an optional configuration that can be used to give the installa-
tion an additional means of exit through access controlled doors in the case of power loss or a
system failure.
Use the following diagrams to configure your system for egress fail-safe override.
Note: In each of the diagrams the egress device can be a motion detector, a crash bar, a button, a beam, etc.

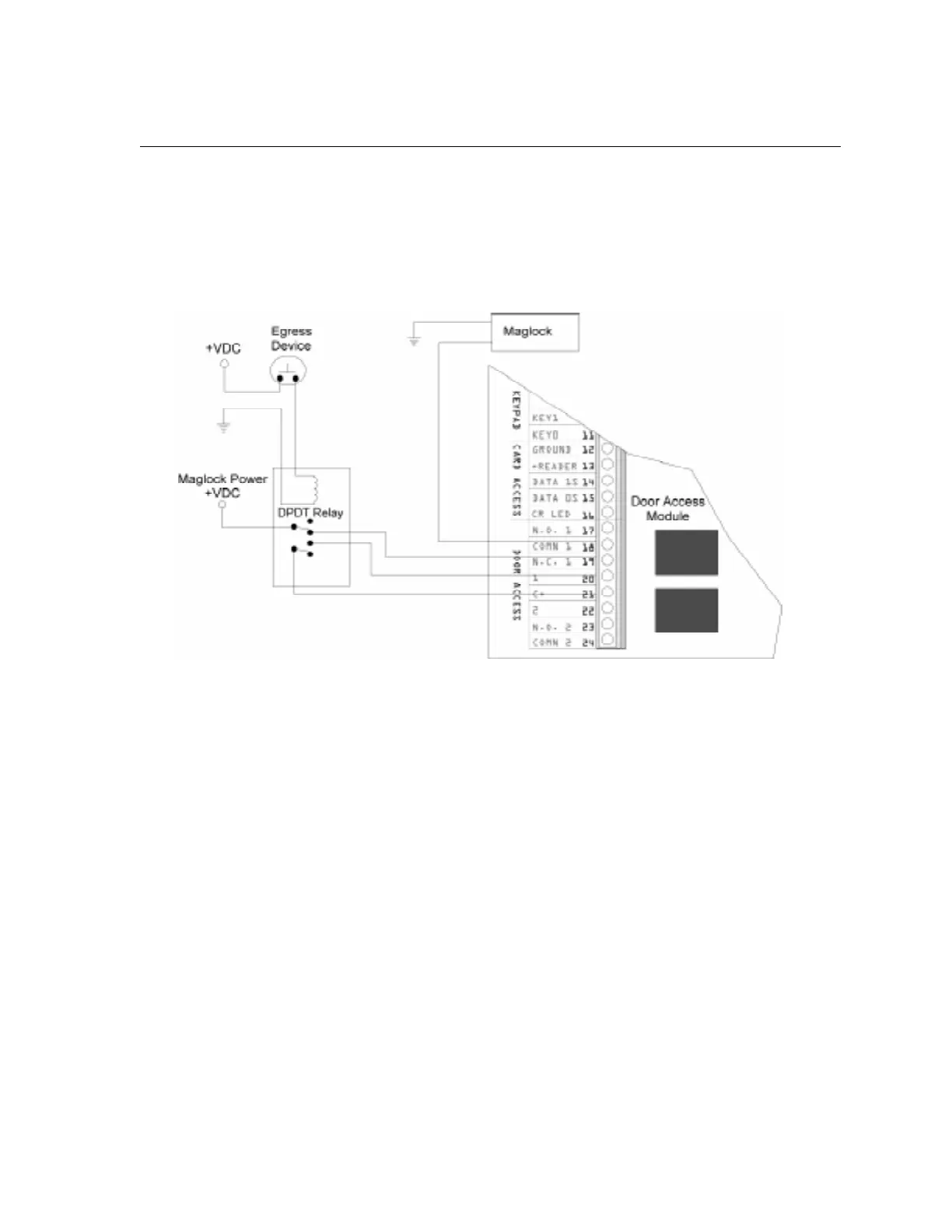

Figure 3-9 Fail-safe Override N.C. Configuration to a Door Access Module
