Simplex 4100U Application Guide

3-2

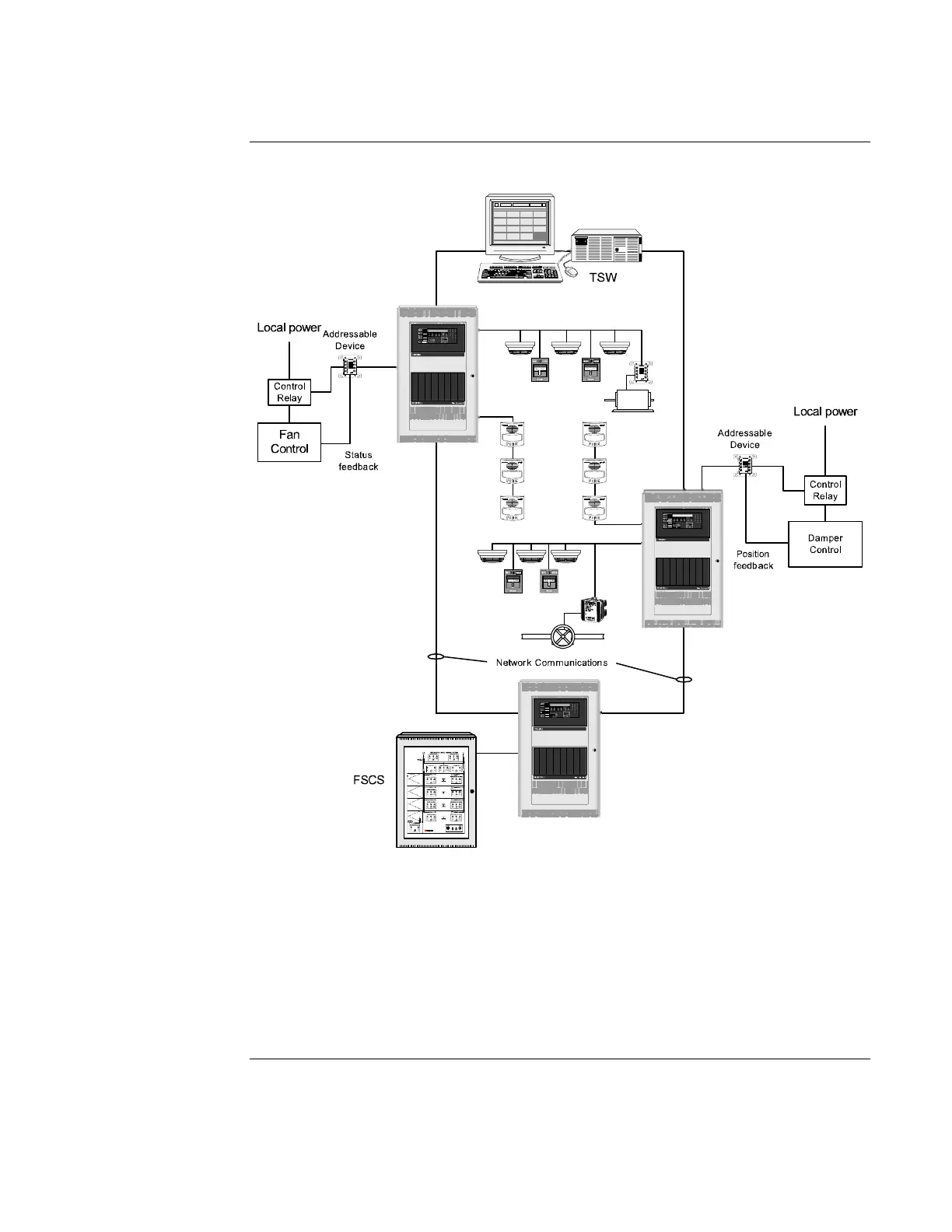

A typical Simplex smoke control system is shown below:
Figure 3-1. Typical Network Smoke Control System
The following major components are used in the Simplex Smoke Control System:
• 4100U/4100ES Control Panel (used as the system controller).
• 4190 TrueSite Workstation System (TSW).
• Firefighter’s Smoke Control Station (FSCS).
These components are described in the following sections.
Smoke Control System
Smoke Control
System

Simplex 4100U Specifications

General

Control Panel Type	Addressable Fire Alarm Control Panel
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Max Signaling Line Circuits (SLC)	2
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	10% to 93% non-condensing
Network Capability	Yes
Communication Protocol	RS-232, RS-485
Battery Backup	24 VDC
NAC Outputs	4
Signaling Line Circuits (SLCs)	2
Power Supply Current	3.0 A
Max Notification Appliance Circuits (NAC)	4
Max Releasing Circuits	4
Max Relay Circuits	4
Communication Ports	RS-232, RS-485
