Simpsons SC213 - Section K CYLINDER HEAD; INDUCTION MANIFOLD; EXHAUST MANIFOLD

46
SC213 Diesel Engines
INDUCTION MANIFOLD
To Disconnect the Air Cleaner
1. Loosen the inlet flexible pipe securing clips from air
cleaner to induction manifold pipe(1) and remove
the inlet flexible pipe.
2. Remove the inlet pipe secured to induction
manifold.
Note: The induction manifold is the integral part of the
cylinder head.
To Connet the Air Cleaner
1. Clean the induction manifold and inlet passage in
the cylinder head.
2. Ensure the mounting surfaces are clean.
3. Fit the induction manifold pipe with new gasket and
tighten the mounting bolts.
4. Refit air cleaner pipes in reverse order.
EXHAUST MANIFOLD
To Remove
1. Loosen and remove exhaust pipe fixing screws to
exhaust manifold.
2. Disconnect the exhaust pipe connection from
exhaust manifold.
3. Loosen and remove the exhaust manifold securing
bolts and remove the manifold with gasket. (Fig:
K.1 & 2)
To Fit
1. Clean the Exhaust manifold and exhaust passage in
the cylinder head.
2. Ensure the mounting surfaces are clean.
3. Fit the exhaust manifold with new gasket and
tighten the mounting bolts.(Fig: K.3 & 4)
4. Refit the exhaust pipe connection.

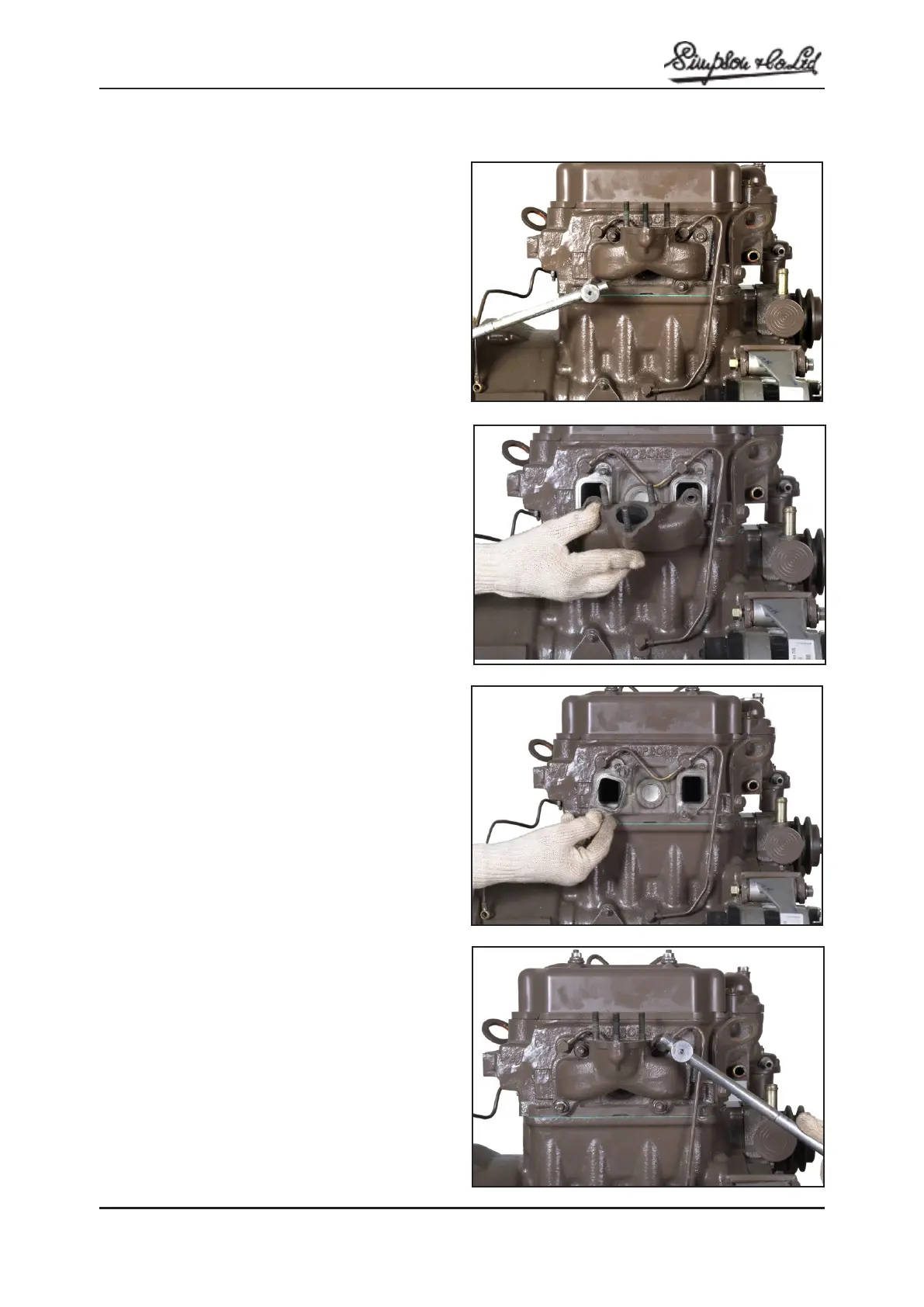

Fig: K.1
Fig: K.2
Fig: K.3
Fig: K.4
Section K
CYLINDER HEAD
