STARTER MOTOR

To remove

I. Disconnect the battery.

2. Disconnect the starter motor cables.

3. Release the fasteners and remove the starter motor

and, if necessary, the distance piece and dowls.

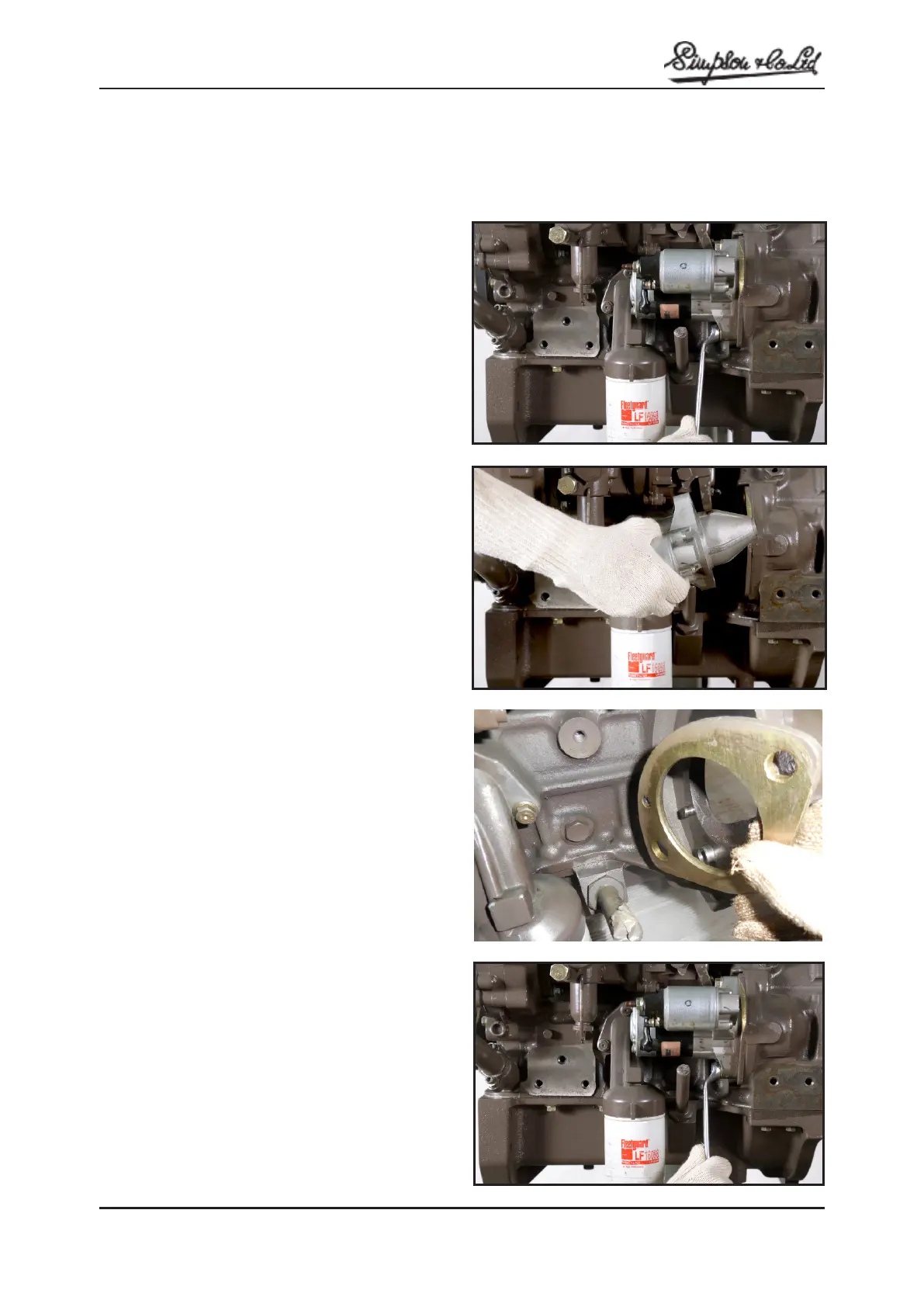

(Fig.Q.1 & 2)

To t

I. Fit the spacer plate locating dowls.

2. Fit the starter motor and tighten the fasteners.

(Fig.Q.3)

3. Connect the starter motor cables.

3. Connect the battery terminals.

Fig: Q.1

Fig: Q.2

Fig: Q.3

Fig: Q.4
