Simrad AP50 User Manual

Operation
20221032B 21

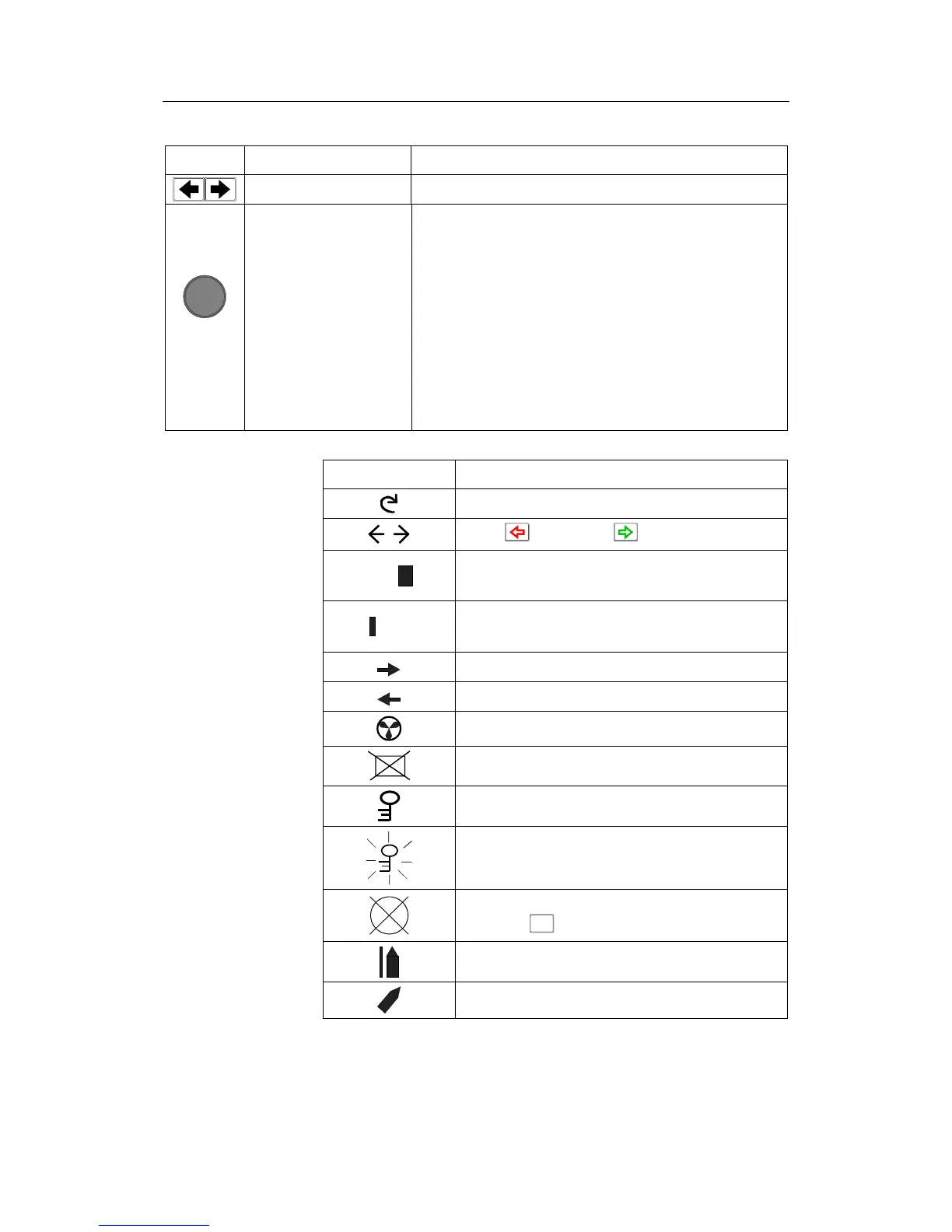

Buttons Action Function
Press simultaneously Activates Follow-up steering mode.
Rotate in Follow-up
steering mode:
Sets commanded rudder angle.
Rotate in AUTO
mode:
Counter clock-wise = Port course change
Clock-wise = Starboard course change
Rotate in NAV
mode:
Verifies new course to steer when alert screen is
shown.
Course
knob
Rotate in User Set-up
or Installation
menus:
Adjusts or confirms reading.
Screen Symbol Description
Rotate course knob
Press (PORT) or (STBD) button
04
Rudder angle 4° to starboard
(Rudder command when analog rudder)
02
Rudder angle 2° to port
(Rudder command when analog rudder)
Rudder command to starboard
Rudder command to port
Thruster connected to autopilot system
Control unit inactive or disengaged
Control unit locked
Key symbol alternates with mode index on
unlocked master unit
No course changes can be made unless you
press the
AUTO
(AUTO) button
Cross track error to starboard
Boat turning to starboard
