Basic operation | GN70/MX610/MX612 Operator and Installation Manual
Main pages
The four keys below the display are called hot keys because they can bring up the position,
navigation, heading and AIS (plot) pages directly when pressed.

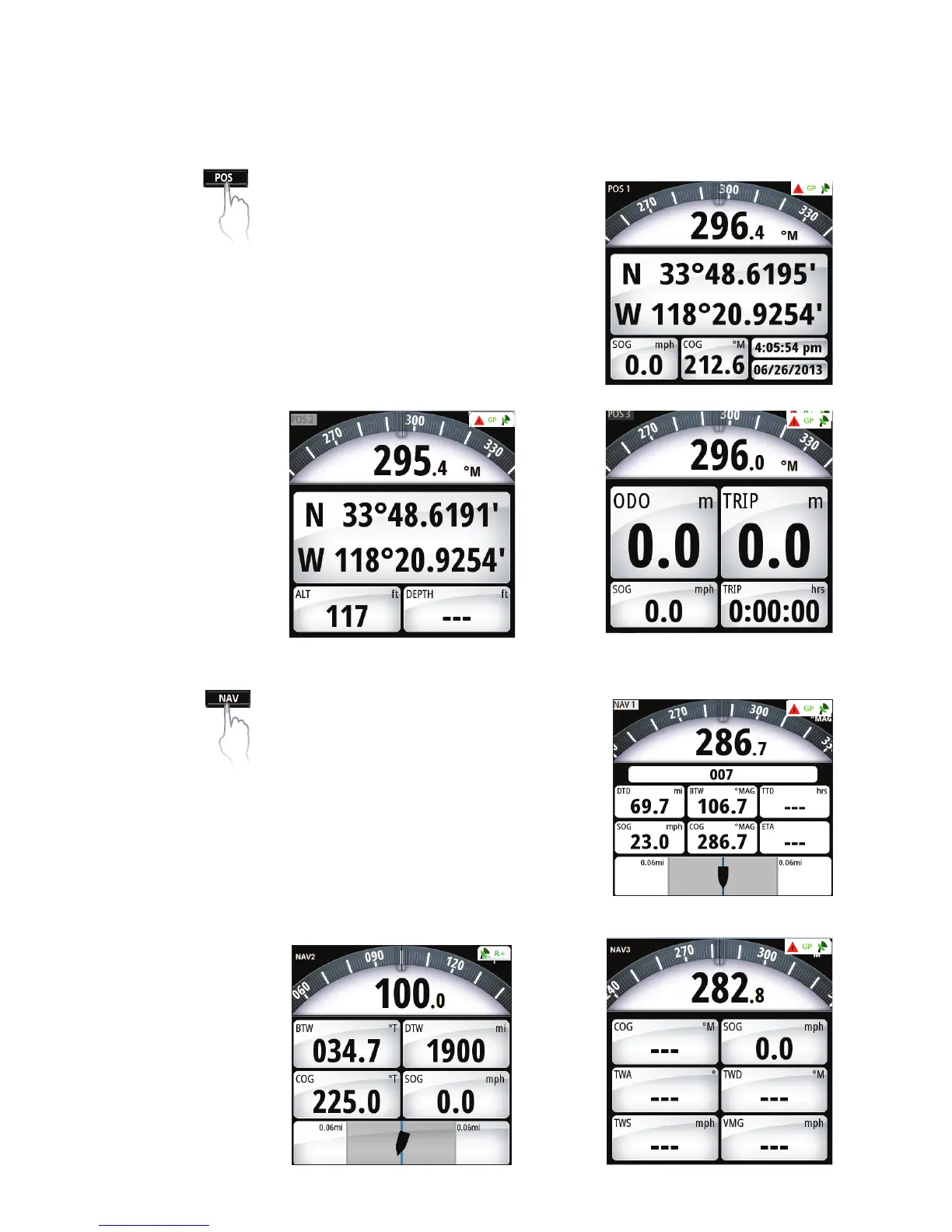

POS page
There are three POS pages available: POS1, POS2*
and POS3*. The page indicator located on the top
left corner pulses every second to indicate the
display is updated every second. Pressing the POS
key will bring up the POS1 indicating the present
position Lat/Long, SOG, COG, Date/Time and the
compass heading. Pressing the POS key again will
show the POS2 page showing the L/L, Altitude and
Depth. Pressing the POS key the third time will
bring up the POS3 page showing the Odometer, Trip
meter, SOG and the trip time (hh:mm:ss).
*) Not for GN70.
NAV page
There are three NAV pages available: NAV1, NAV2*
and NAV3*. The page indicator on the top left corner
pulses every second to indicate the display is updated
every second. Pressing the NAV key will bring up
the NAV1 page showing the WPT# you are headed to,
the range, bearing, SOG, COG and ETA to destination.
It also shows the graphical display of the cross-track
error. Pressing the NAV key again will show the NAV2
page and provide e.g. distance to waypoint. Pressing
the NAV key the third time will show the NAV3 page
showing the COG, SOG, TWA, TWD, TWS and VMG
information.
*) Not for GN70.
