| 19
Menu overview | GN70/MX610/MX612 Installation and Installation Manual

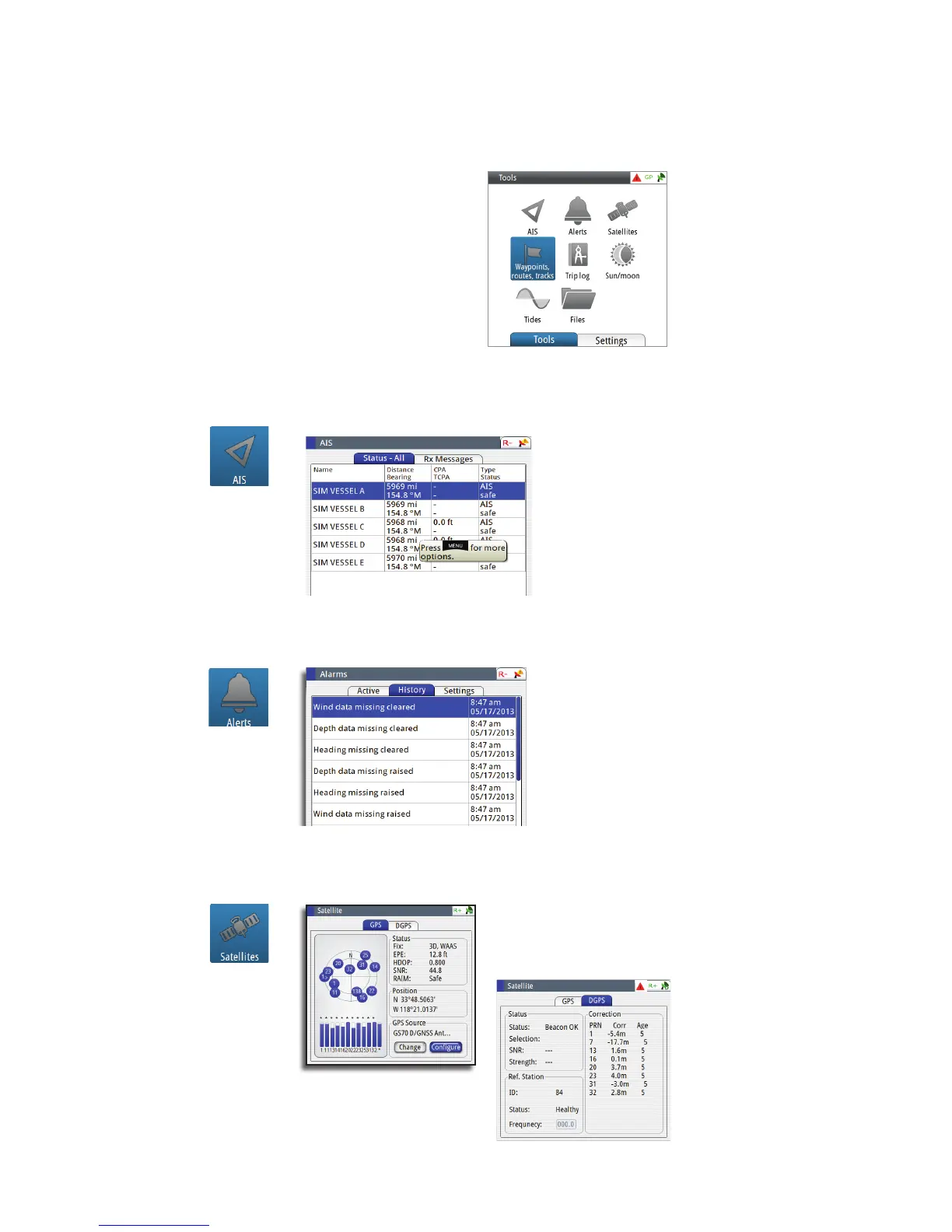

Tools dialog and submenus
Several tools are available to help you operate the CDU unit. To bring up the TOOLS page, press
the PAGE key to change tab from SETTINGS to TOOLS.
AIS tool
Two tabs are available in this submenu, namely:
Status-All and RX Messages. Press the PAGE key
to change tabs. The Status-All provides a list of
targets received from AIS or GMDSS as well as
their distance and bearing with reference to your
vessel. The RX message tab, provides a list of text
messages received from other AIS enabled vessels
who sent you a directed or broadcast message.
Alerts tool
This screen is used to manage and control the
alert feature. Press the PAGE key to change tabs
-Settings tab is used to turn on/off alerts and set
limits.
-History tab lists all previous alerts. Press MENU to
delete alert history
-Active tab shows alerts that are still active. The
alert is removed from the list when the fault is
corrected.
Satellite tool
Provides the status display of the GPS satellites and
differential correction status. Press the PAGE key
to change tab to DGPS status screen. Press MENU
to toggle Automatic, Database or Manual beacon
To Next Page
