Waypoints, Routes & Tracks | GN70/MX610/MX612 Operator and Installation Manual
Waypoints, Routes & Tracks

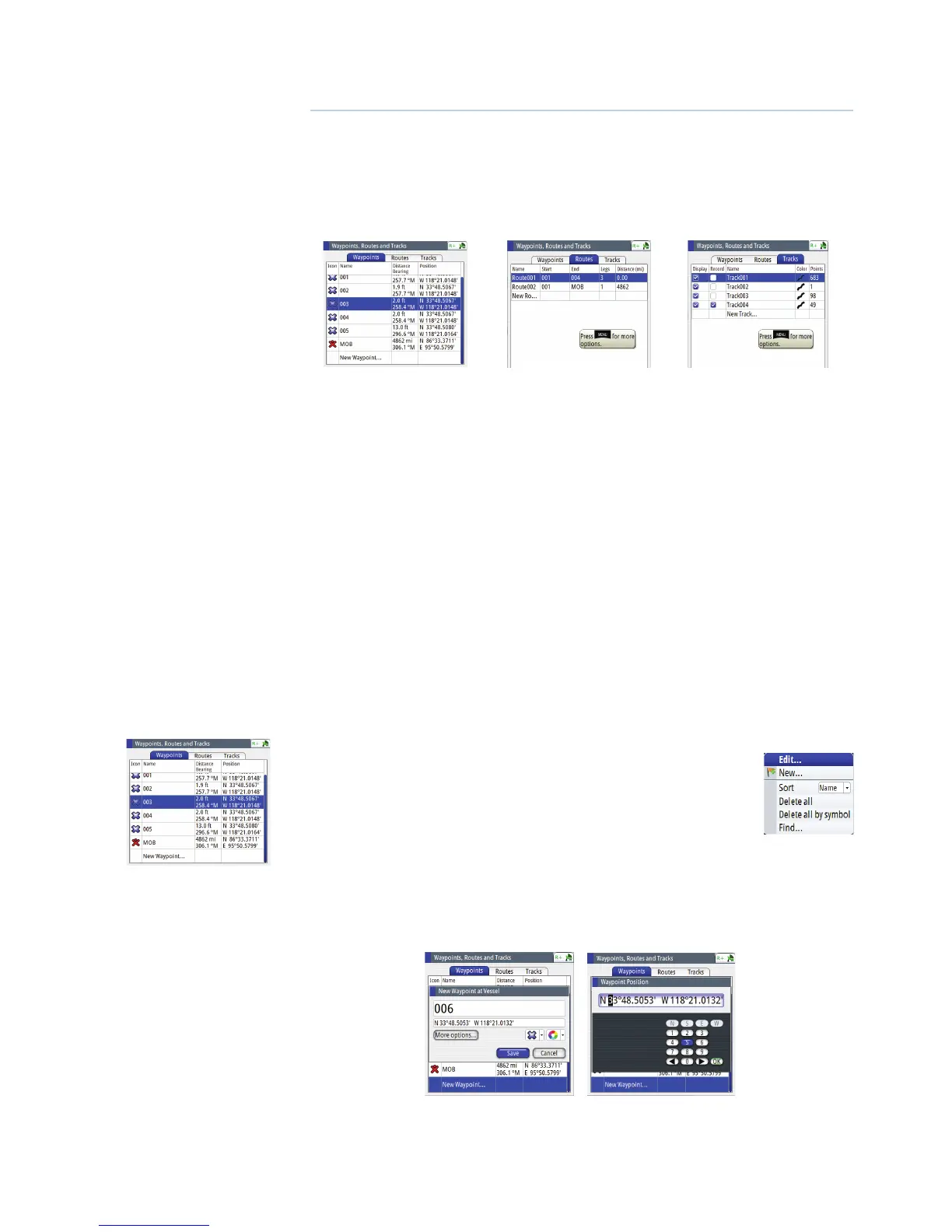

Waypoints, Routes and Tracks panels
The Waypoints, Routes and Tracks panels gives access to advanced edit functions and settings
for all these items available on your system.
The edit and settings options are accessed from the tools menu or by using the dialog buttons
when one of the items is selected.
Waypoints
A waypoint is a location on the chart defined by unique latitude and longitude coordinates.
They can be created in the GN70/MX61x using the following methods:
• Saving the vessel position
• Using Lat/Long coordinates taken from a chart
• Specified range and bearing.
Positioning waypoints
Saving the vessel’s position as a waypoint
The easiest method to create a waypoint is by saving the vessel’s position. This is done by a
momentary press of the MOB key. This action will save the position Lat/Long into the next
vacant waypoint number.
¼ Note: The MOB key is a two function key. A momentarily press saves the position L/L into the
next vacant waypoint. Press and hold the MOB key for 3 seconds, will save the position as
MOB and will calculate range and bearing back to that point.
Creating or editing waypoints
A Waypoint can be created (or edited) by using the procedure below:
1. Press the MENU key to bring up the quick menu.
2. Scroll to Wpt/Rte/Trk... and press the ENT key.
3. Turn the rotary knob to highlight the “New Waypoint...”
4. Press the ENT key to bring up the waypoint dialog box.
¼ Note: You may also press the MENU key to bring up the sub-menu and then select “New...”
for a new waypoint entry, then press the ENT key.
The position L/L coordinates is copied on the waypoint position field for a new waypoint.
5. Rotate the knob to move the highlight to the Waypoint L/L field, then press the ENT key. The
virtual numeric keypad will appear.
6
