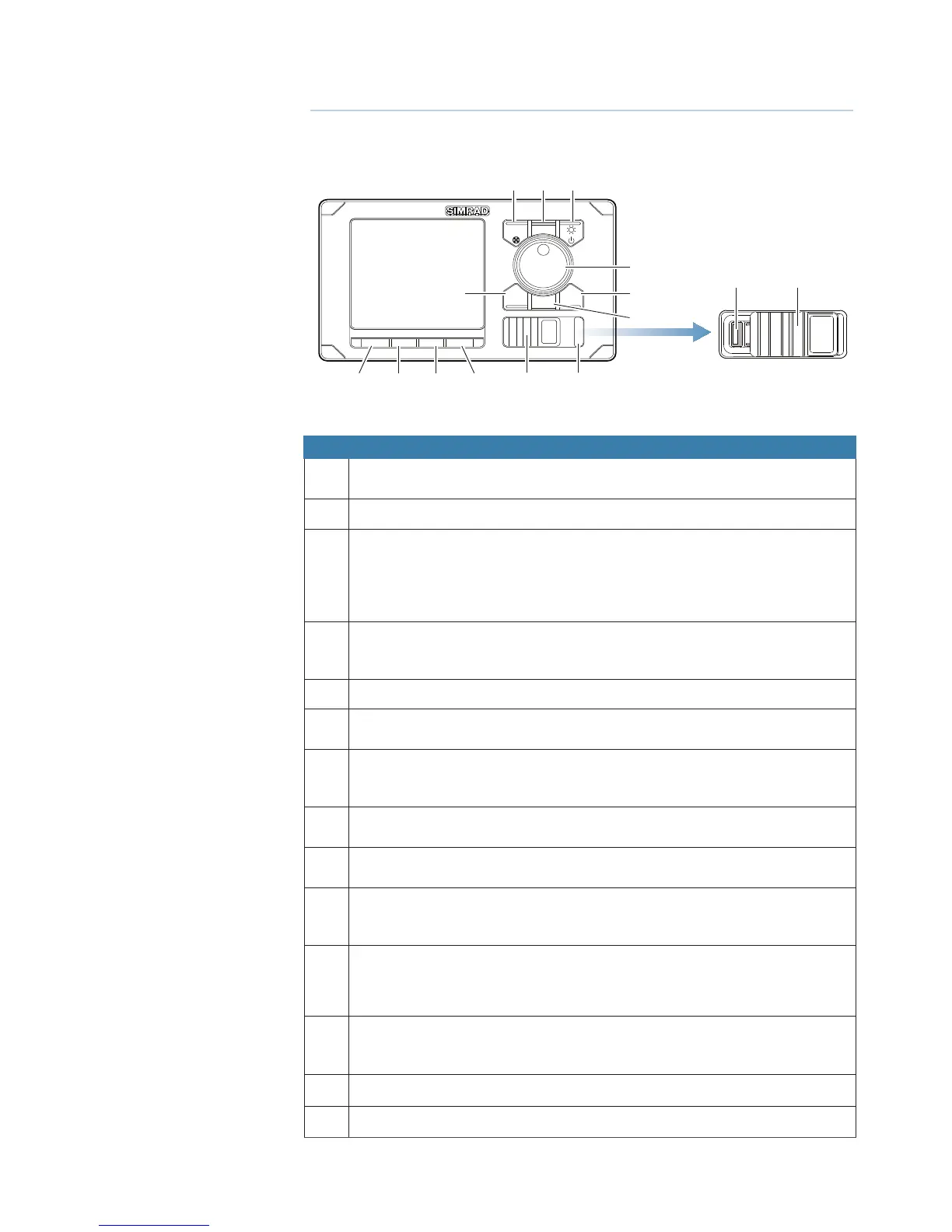

No. Description
1
PAGE key: Brings up different screen page every time this key is pressed or to
change tab in the settings and tools menu.
2
MENU key: Brings up the quick menu dialog box.
3
POWER/LIGHT key
Short press will turn ON the unit.
Momentary press brings up the backlight and night view controls.
Series of short presses will cycle through 6 levels of display brilliance.
Long press will turn power off.
4
ROTARY KNOB: Rotate to scroll through menu icons or numbers in the virtual
keypad. Press the center of the knob to select menu item or accept entry. Same entry
action when you press the ENT key.
5
CLR key: Press to clear, escape or back out of the menu or data entry.
6
ENT key: Press to accept menu selection or data entry. Same entry action when you
press the center of the rotary knob.
7
MOB key: Short press will save the present position L/L into the next vacant
waypoint. Press and hold for 3 seconds will activate the Man-Over-Board (MOB)
function.
8
POS hot key: Position page will display the present position Latitude, Longitude,
COG, SOG, Date and Time. Press repeatedly to show POS1, POS2 or POS3 pages.
9
NAV hot key: Navigation page will display the navigation information.
Press repeatedly to show NAV1, NAV2 or NAV3 pages.
10
HDG hot key: Heading page will show the compass rose, Pitch, ROT and Yaw
information coming from a gyro or a GPS compass. Press repeatedly to show HDG1
or HDG2 pages.
11
AIS hot key: AIS page will display the PLOT screen showing your vessel, waypoints,
route and other navigation information. Will also show AIS targets when connected
to an AIS receiver via the NMEA 2000 network.
12
USB* door: To open, lift the right tab and slide the cover to the right. To close, slide
cover to left and push the tab down. Close USB door at all times to prevent moisture
intrusion.
13 USB* key: Press to view the files contained in the USB memory stick.
14 USB* Connector
*) Not for GN70
