22 |
Tools page | GN70/MX610/MX612 Operator and Installation Manual

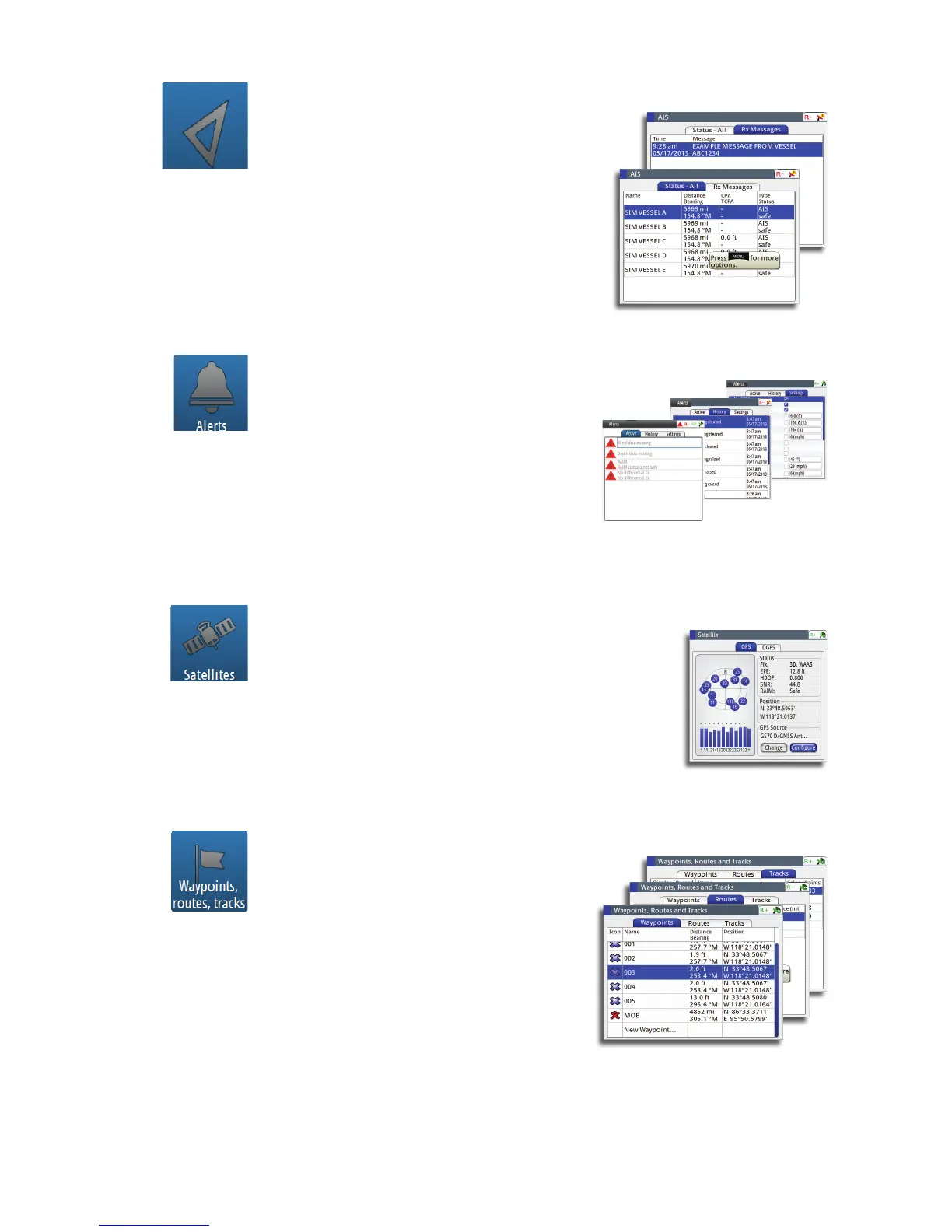

AIS (Vessel info)
Status-All
Provides a list of all AIS target vessels with their
information when the GN70/MX61x is connected
to the AIS transponder via the NMEA 2000 network.
Pressing the MENU key will show a dialog box that
allows you to sort the list based on names, distance,
bearing, status, type, CPA and TCPA to other vessels.
Message listing
Shows the list of all text messages received from
other vessels with time/date stamp.
Alerts
Active alerts
List of active alerts.
Alert history
List of all previous alerts with time stamp and
description.
Alert settings
List of all available alert options in the system, with
current settings.
Satellites
Status page for GPS satellites that are in view. The
SBAS (like WAAS, EGNOS) differential position
correction can be turned On or OFF using the
configure button. The source of GPS position can be
controlled from this screen if there are more than
one active antenna connected in the N2K buss.
Pressing the PAGE key will change the tab to the
DGPS status screen.
Waypoints/routes/tracks
The databank of waypoints, routes and tracks can
be viewed from this display. Pressing the PAGE key
repeatedly will change tabs from Waypoints, Routes
or Tracks.
Creating new or editing existing waypoints, routes
and tracks can be done in this screen. Pressing the
MENU key while in this screen will allow you to
easily GOTO the waypoint you selected or activate
the Route to follow pre-programmed routes or
tracks.
