Navigating with the NSO-II | NSO-II Operator Manual
Data elds
The Steer panel oers the following information:
DTD Distance to destination
BTW Bearing to waypoint
SOG Speed over ground
COG Course over ground
TTD Time to destination
ETA Estimated time of arrival at next waypoint
VMG Velocity Made Good towards next waypoint.
STEER Course to steer towards next waypoint
Course line
When travelling on a route the course line shows the intended course from one waypoint
towards the next.
When navigating towards a waypoint (cursor position, MOB or an entered lat/lon
position), the course line will show the intended course from the point at which
navigation was started towards the next waypoint.
Vessel symbol
The vessel symbol indicates distance and bearing relative to the intended course.
O course limit
If the XTE exceeds the dened o course limit (Refer “Steering alarm limits” on page 30),
this will be indicated with a red arrow including the distance from the track line.
If the o course alarm is enabled, the alarm will activate if the XTE exceeds the dened o
course limit.
Position panels
By default, there is one position panel available showing GPS position.
If Loran is enabled as described on page 31, there will be two position panels. This is
indicated with arrow symbols on left and right side of the panel.
You toggle between the panels by tapping the left or right side of the panel.

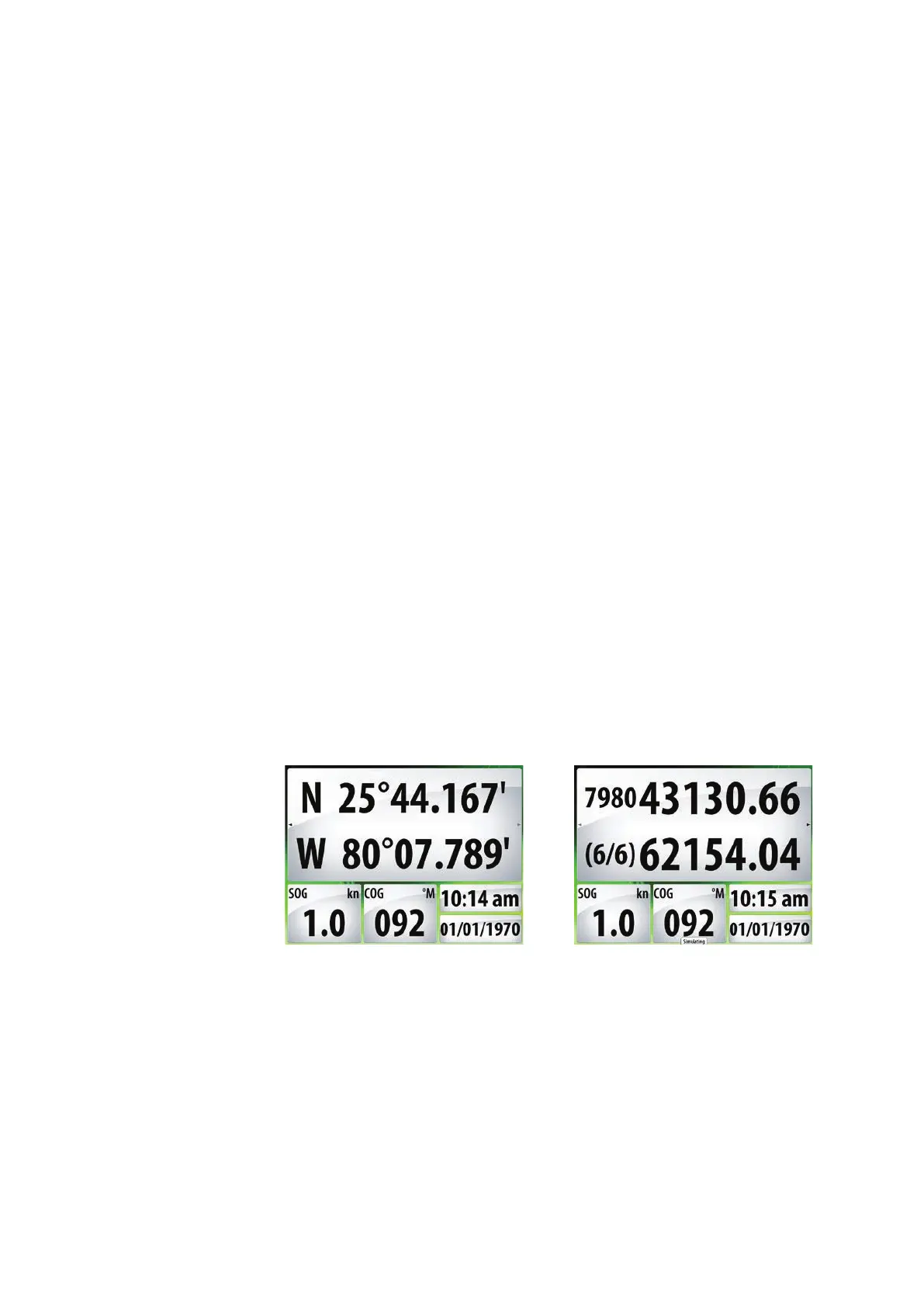

GPS position info Loran position info
Data elds
Position in lat. and lon. (GPS) or as Loran GRI and station values
Time and date
SOG Speed over ground
COG Course over ground
