StructureScan™ | NSO-II Operator Manual
StructureScan™
StructureScan™ is an optional hardware
module that uses high frequency to provide a
High resolution image of the seabed
StructureScan™ provides a 150 m (480 ft) wide
coverage in high detail with SideScan, while
the DownScan™ provides picture perfect
images of structure and sh directly below
your boat, down to 90 m (300 ft).
The StructureScan™ panel is accessed from the shortcut icon on the Pages panel when
the StructureScan external box and transducer are tted.
Setting up the StructureScan™ image
The view
The StructureScan panel can be set up as a traditional downscan image, or showing left/
right side scanning.
The DownScan image can also be added as an overlay to the traditional Echosounder
image. For more information, refer to “StructureScan™ overlay” on page 60.

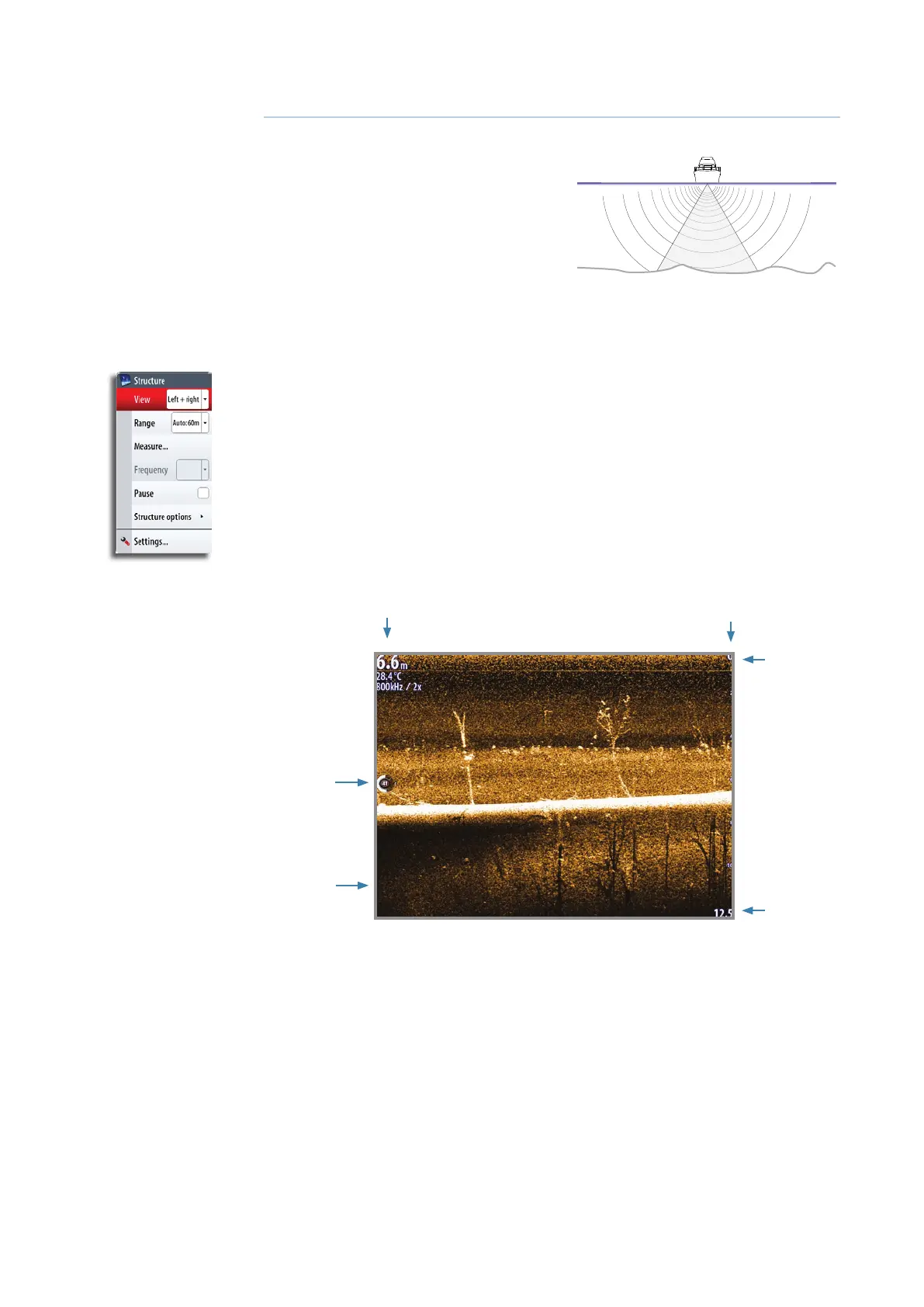

DownScan
Upper
range
Lower
range
Depth
Temperature
Frequency / zoom
Color
indicator
Sea bed
Range
scale
9
