15. Appendices
EN
15. Appendices
5. ST-102 control centre components
Table 3. ST-102 control centre components
Symbol Component Function
S1 Function button Selecting functions
J1 Connector Function button connector
J4A Selector switch Program jumper switch
J4B Selector switch Program jumper switch
J4C Selector switch Program jumper switch
J4D Selector switch Program jumper switch
J4E Selector switch Program jumper switch
J5 Screw terminal Extra button connector
J6 Screw terminal External alarm indicator connector
J8 Selector switch Test function jumper switch
J9 Selector switch Extra function jumper switch
SW1 Rotary switch Lubrication interval setting *)
SW2 Rotary switch Pressurisation time setting *)
LED LED indicator Indicator
X3 Connector Pump power supply and control
X5 Connector Programming connector
*) not in use when J9 is closed

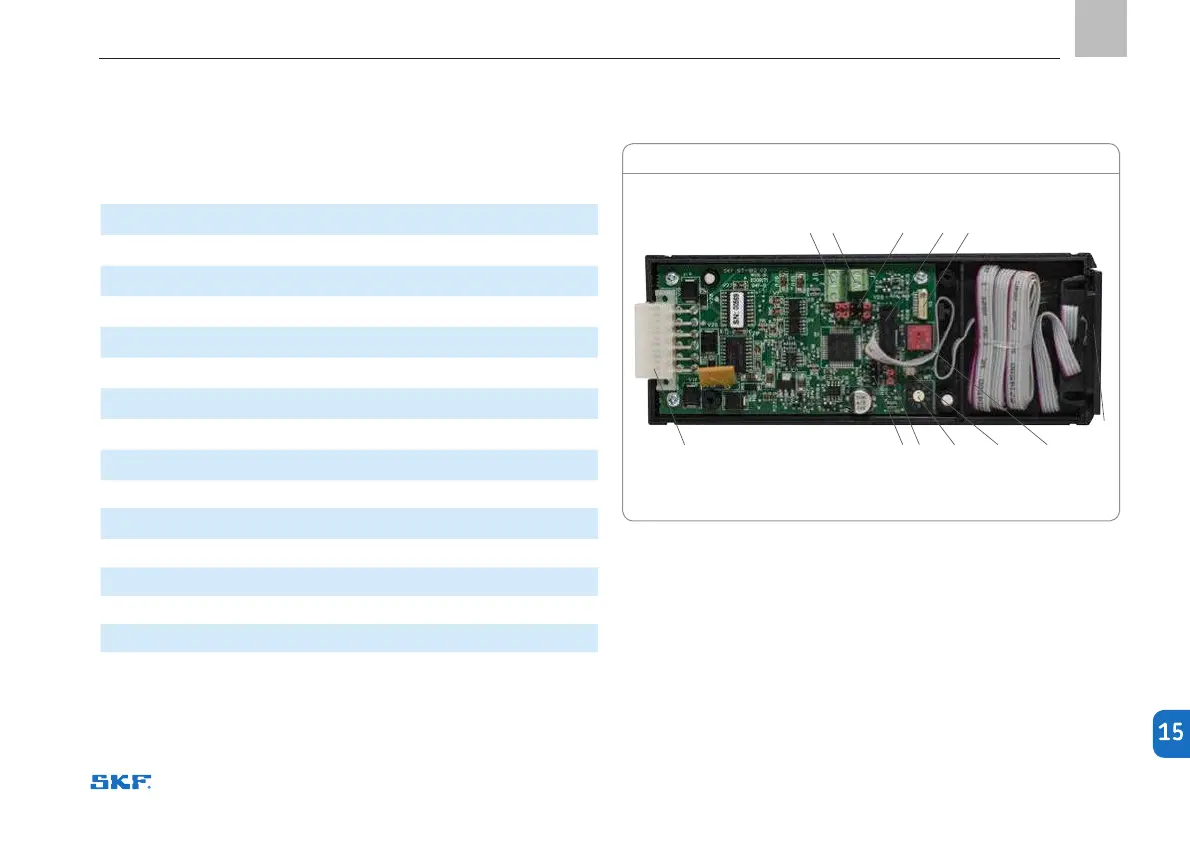

Figure 3
ST-102 control centre components
X5J1
J4: A-E
J5J6
X3
S1
J8 J9 SW1 SW2LED
