6. Changing lubrication system settings from the circuit board
Table 4. Selector switch J4A, lubrication system selection
Selector switch J4A Meaning
Closed SKF MonoFlex or ProFlex, single-line lubrication systems
Open SKF DuoFlex, a dual-line system
Table 5. Selector switches J4B, J4C and J4D
J4B J4C J4D Meaning
Closed Open Open
Pressure is maintained in the header line throughout the entire pres-
surisation time.
The pump will stop when the pressure switch acknowledges.
Open Closed Open
40PGA pump control. The pump will keep the line pressurised through-
out the entire pressurisation time. The pressure switch must acknowl-
edge pressurisation (i.e. close) at the end of pressurisation.
Open Open Closed Pressurisation stops when the pressure switch acknowledges.
Closed Closed Open Progressive lubrication system, ProFlex
Changes in the ST-102 control centre’s
circuit board settings will take effect once
the system has been restarted. It is recom-
mended to change the settings when the
control centre is unplugged, which means
that the changes will take effect when the
control centre is plugged back in.

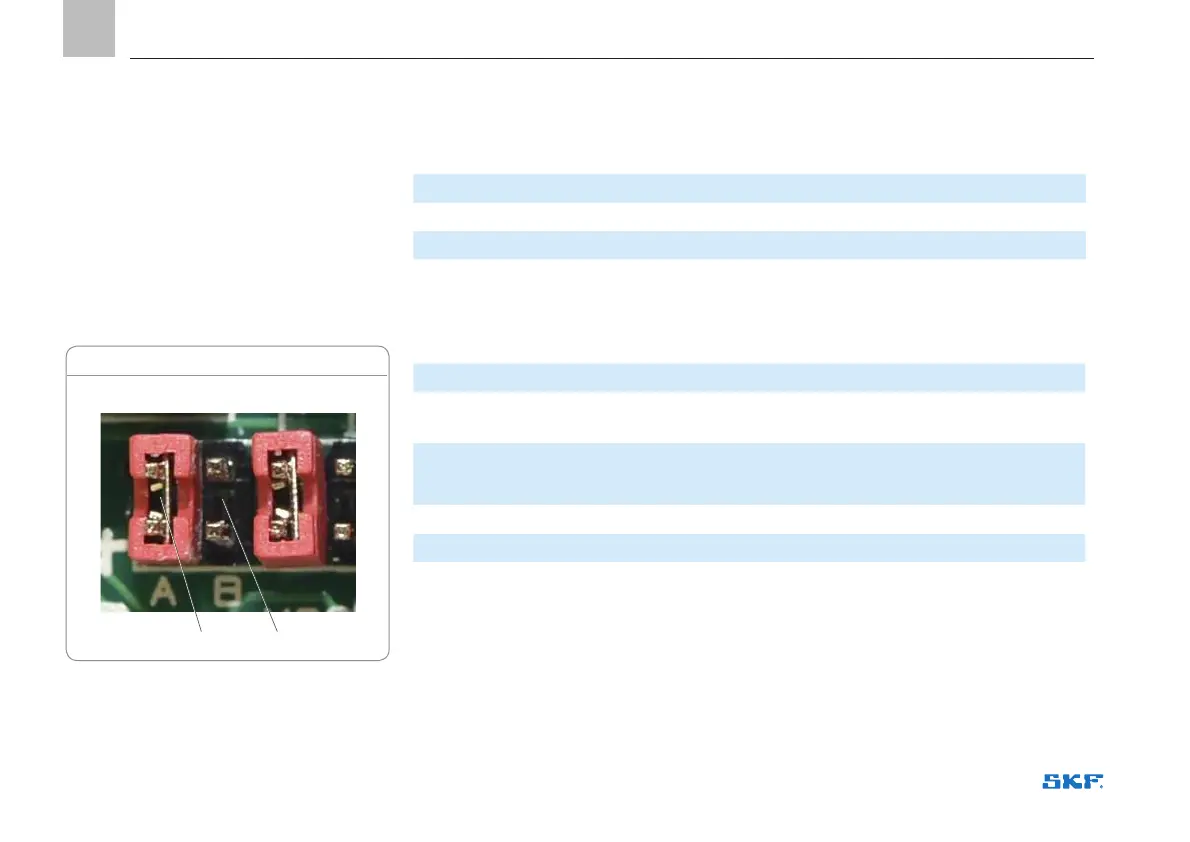

Figure 4
Selector switch open/closed
Closed Open
