SKF FL15 - Page 35

FMON10JEN 07.04.2017 Rev. 10J
34 (34)

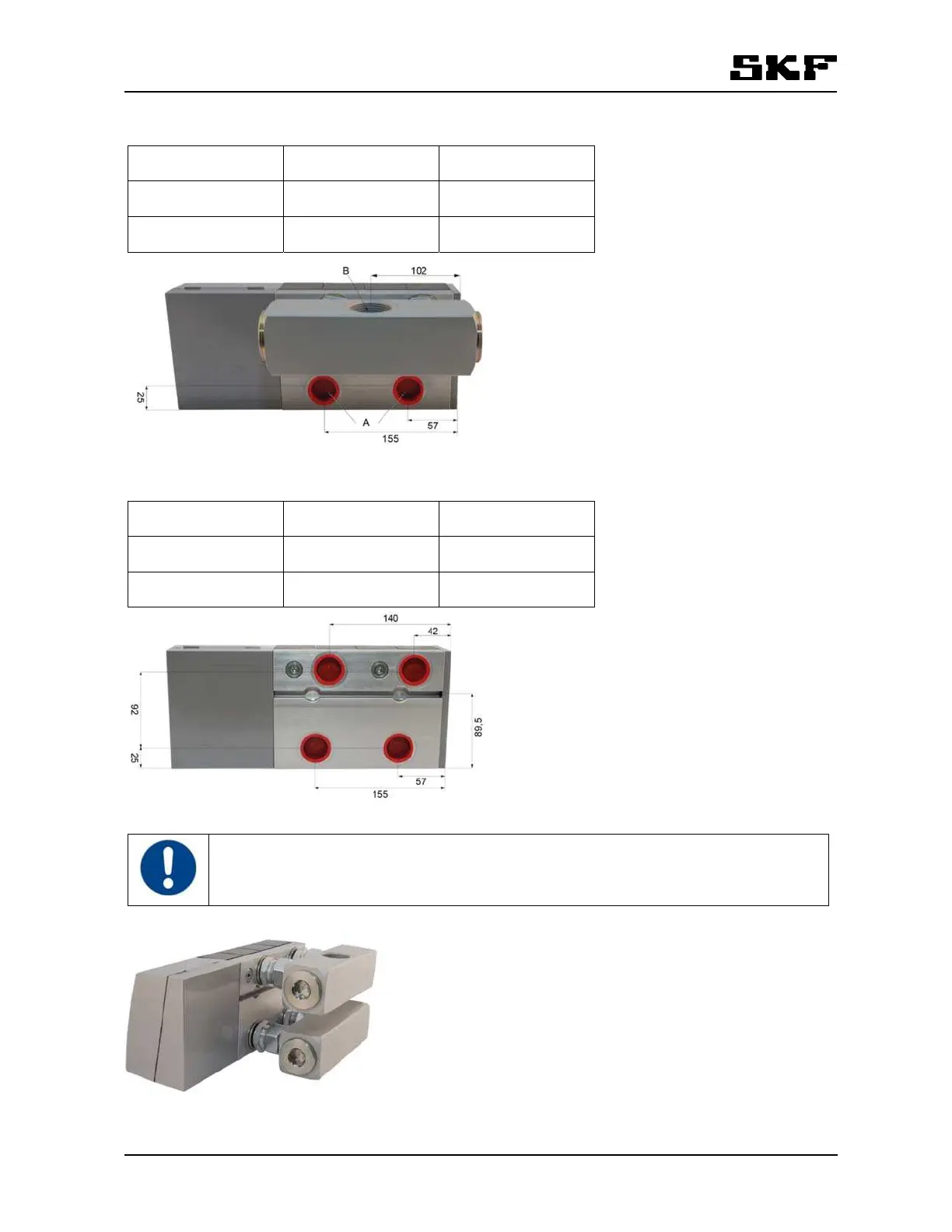

Table 9 Pipe connections standard, FL100 comes with one connection block
Connection Flowmeter type Type and size
A = Oil input FL100-01-R
FL100-01-U
2 x G 1”
2 x NPT 1”
B = Oil output FL100-01-R
FL100-01-U
1 x G 1 1/4”
1 x NPT 1 1/4”
Figure 9 Pipe connections standard, with connection block FL100
Connection Flowmeter type Type and size
A = Oil input FL100-01-R
FL100-01-U
2 x G 1”
2 x NPT 1”
B = Oil output FL100-01-R
FL100-01-U
2 x G 1”
2 x NPT 1”
Figure 10 Pipe connections, options without connection block.
For FL100 is available additional connection blocks 13120180 CONNECTION BLOCK G1 ¼
and 13120182 CONNECTION BLOCK NPT 1 1/4 (Figure 11)
Figure 11 FL100 with two connection block.
