SKF FL15 - Connections

FMON10JEN 07.04.2017 Rev. 10J
55 (55)
- Flows < SCL: mA output is linear down to 3,5mA,
Fault indication:
If flowline monitor indicates fault in flow measurement ( dashes - - - on display) the current output is 3,5mA.

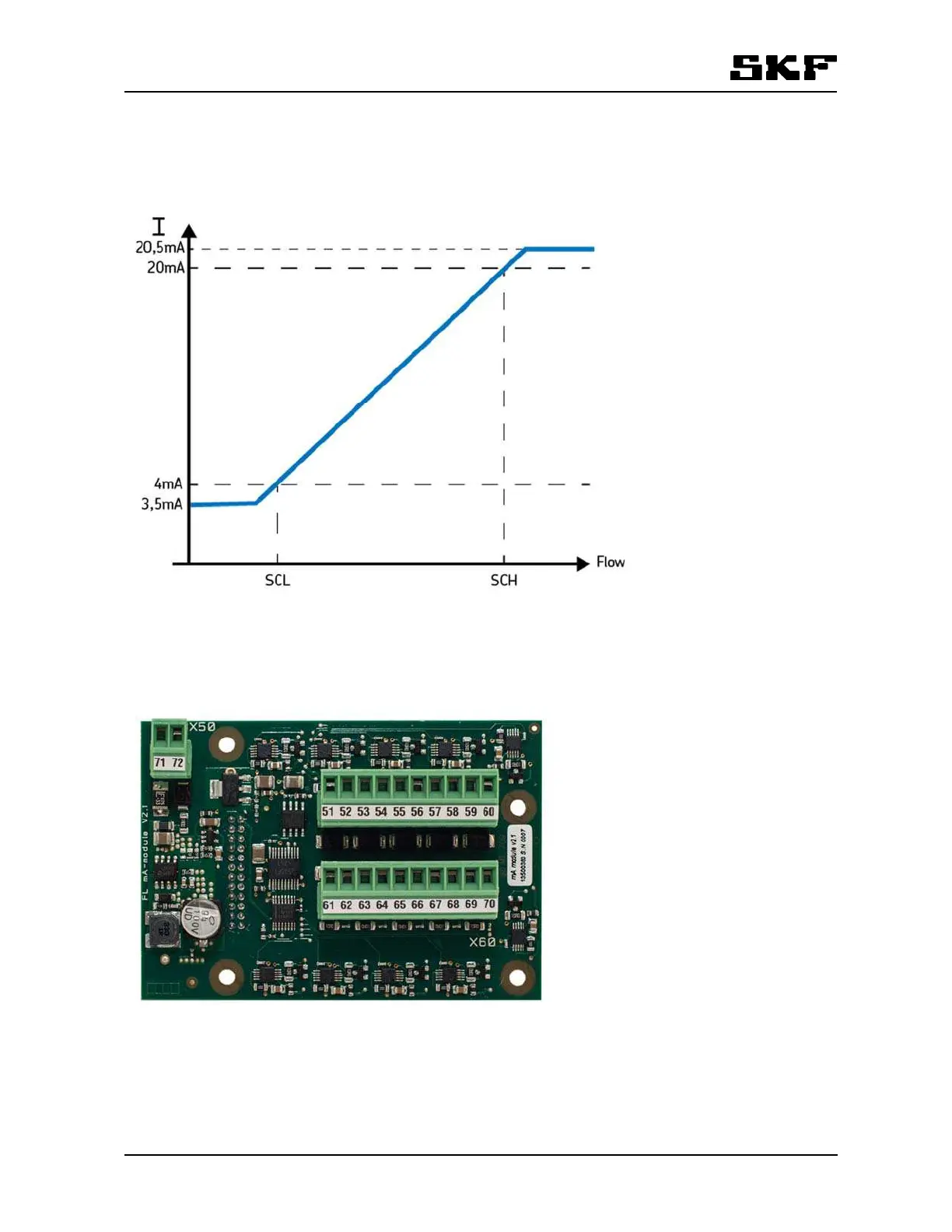

Figure 24 Scaling figure
14.3.3 Connections
There are screw terminals for max. 1,5mm2 wires on the module.
The FL mA module requires that a separate voltage supply for current outputs is connected to terminals
71: 24VDC+-20%. (19,2 … 28,8VDC)
72: 0V
