12.1.4 Removing and reinstalling flow valve
Close oil feed to the group and all flow valves of the group while replacing a flow valve.
Remove flow valve according to following instructions (numbers refer to part numbers in Figure 17).
1 Remove flow valve knob. (part 2)
2 Remove flow valve wheel. (part 1)
3 Remove flow valve flange. (part 4)
4 Pull flow valve out of its drillings. (part 3)
Replace required parts and reinstall the flow valve in reverse order.

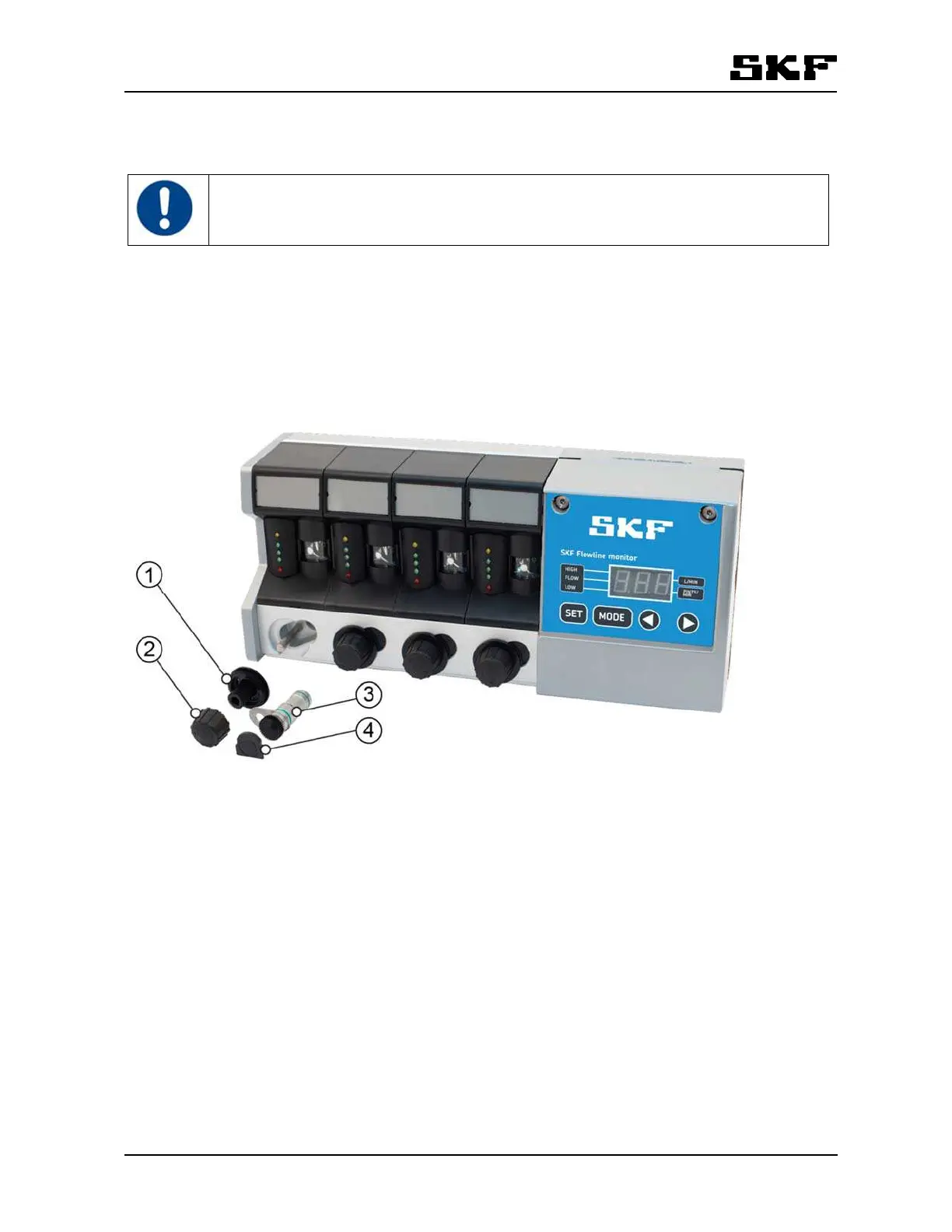

Figure 17 Replacing a flow valve
Spare parts: FL15-KIT-VALVE-A 13120480, FL50-KIT-VALVE 13120485 and 13120487 FL-KIT-KNOB (Refer
to section 16 Spare parts).
