11.1.2 Pipe connections
Table 7 Pipe connections, FL15
Connection Flowmeter type Type and size
A = Oil input FL15-XX-R
FL15-XX-U
G 1”
NPT 1”
B = Oil output FL15-XX-R
FL15-XX-U
G 1/2”
NPT 1/2”

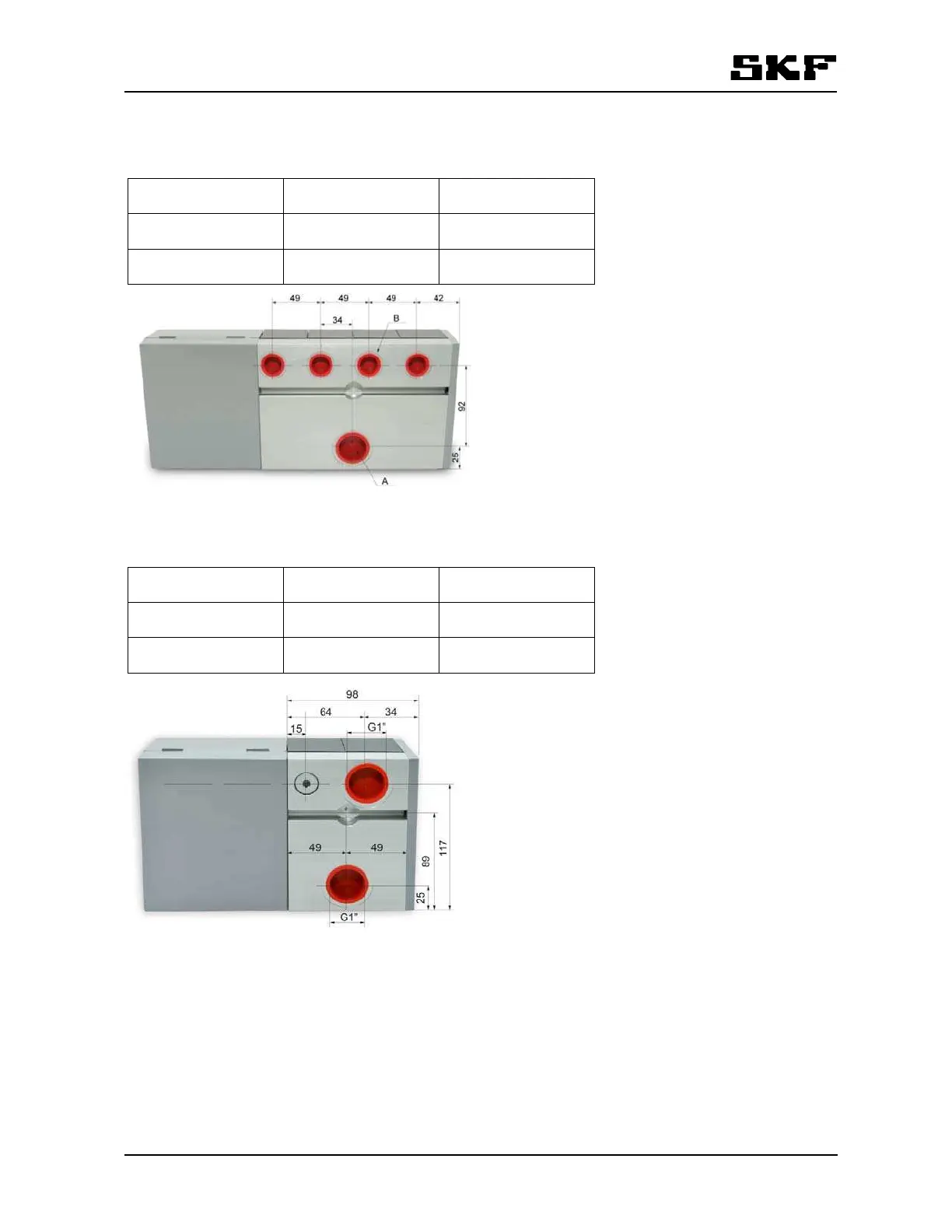

Figure 9 Pipe connections, FL15
Table 8 Pipe connections, FL50
Connection Flowmeter type Type and size
A = Oil input FL50-01-R
FL50-01-U
G 1”
NPT 1”
B = Oil output FL50-01-R
FL50-01-U
G 1”
NPT 1”
Figure 8 Pipe connections, FL50
