User’s interface in the control unit
The user’s interface in the control unit can be used for monitoring lubrication point flow rates and lubrication oil
temperature and for setting the measuring parameters for each flow meter and general parameters like oil vis-
cosity and temperature unit.
The user’s interface has two modes: measuring mode and setting mode. In measuring mode, the operator can
browse and monitor measurement results and settings for lubrication points. In setting mode, the operator can
adjust the settings, e.g. the alarm limit values. Setting mode requires a password, refer to the section 10.2
The password is used to make sure that the settings are not adjusted accidentally or without permission.

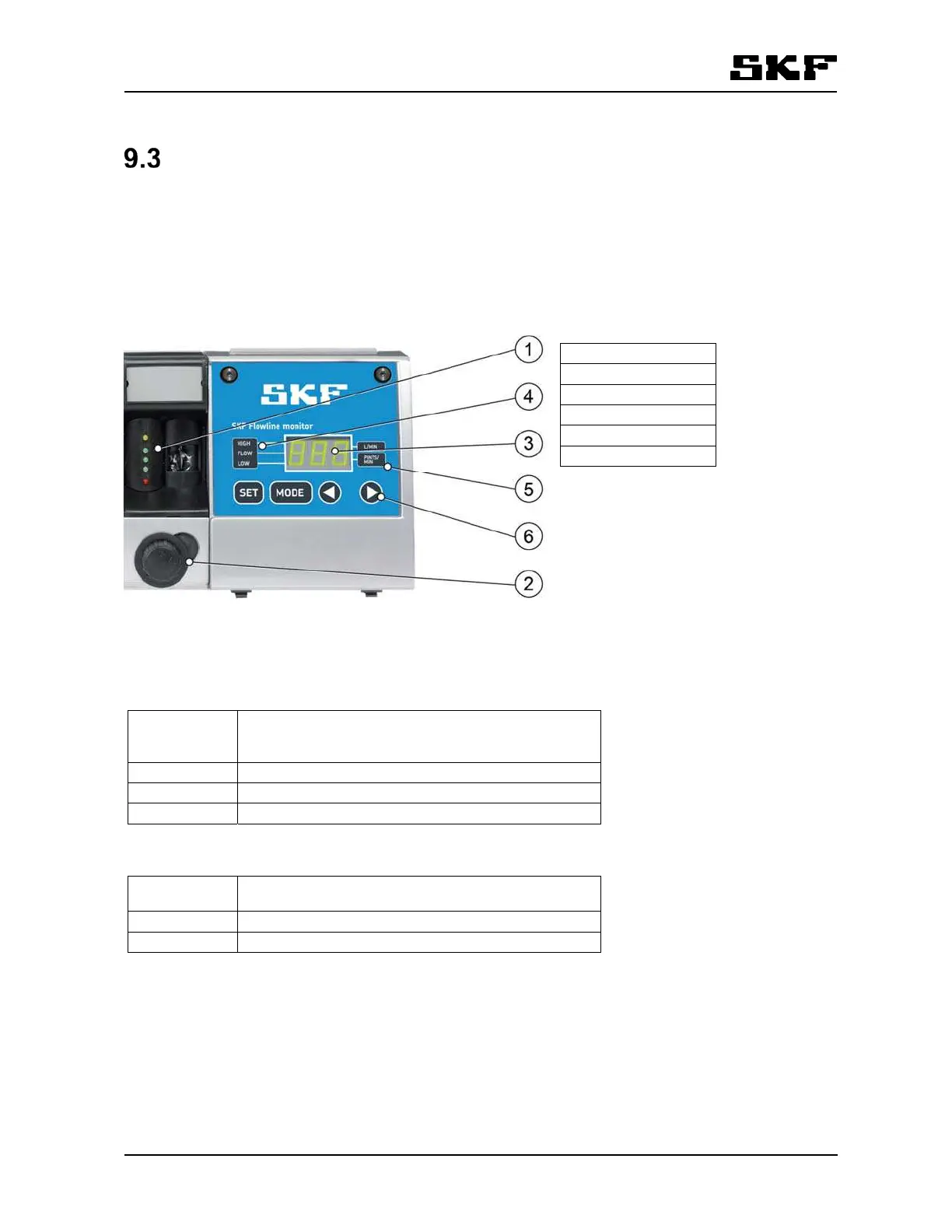

Figure 5 Control unit
Table 2 Display modes
Display
mode
Description
HIGH Flow rate high alarm limit selected on display.
FLOW Flow rate / Nominal flow rate selected on display.
LOW Flow rate low alarm limit selected on display.
Table 3 Display units
Display unit Description
L/MIN Flow rate displayed in liters per minute.
PINT/MIN Flow rate displayed in pints per minute.
1. LEDs
2. Flow adjusting
3. Display
4. Display mode
5. Display unit
6. Function keys
