14 Optional modules
Relay-CAN module overall
FL Relay-CAN module is a plug-in interface board for SKF Flowline monitor.
Features
-Individual alarms of flowmeters or specified common alarms, depending on the selected mode.
-CAN bus communication See part 13.2 CAN Module
The module is compatible with Flowline monitor models FL-15, FL-50 and FL-100.

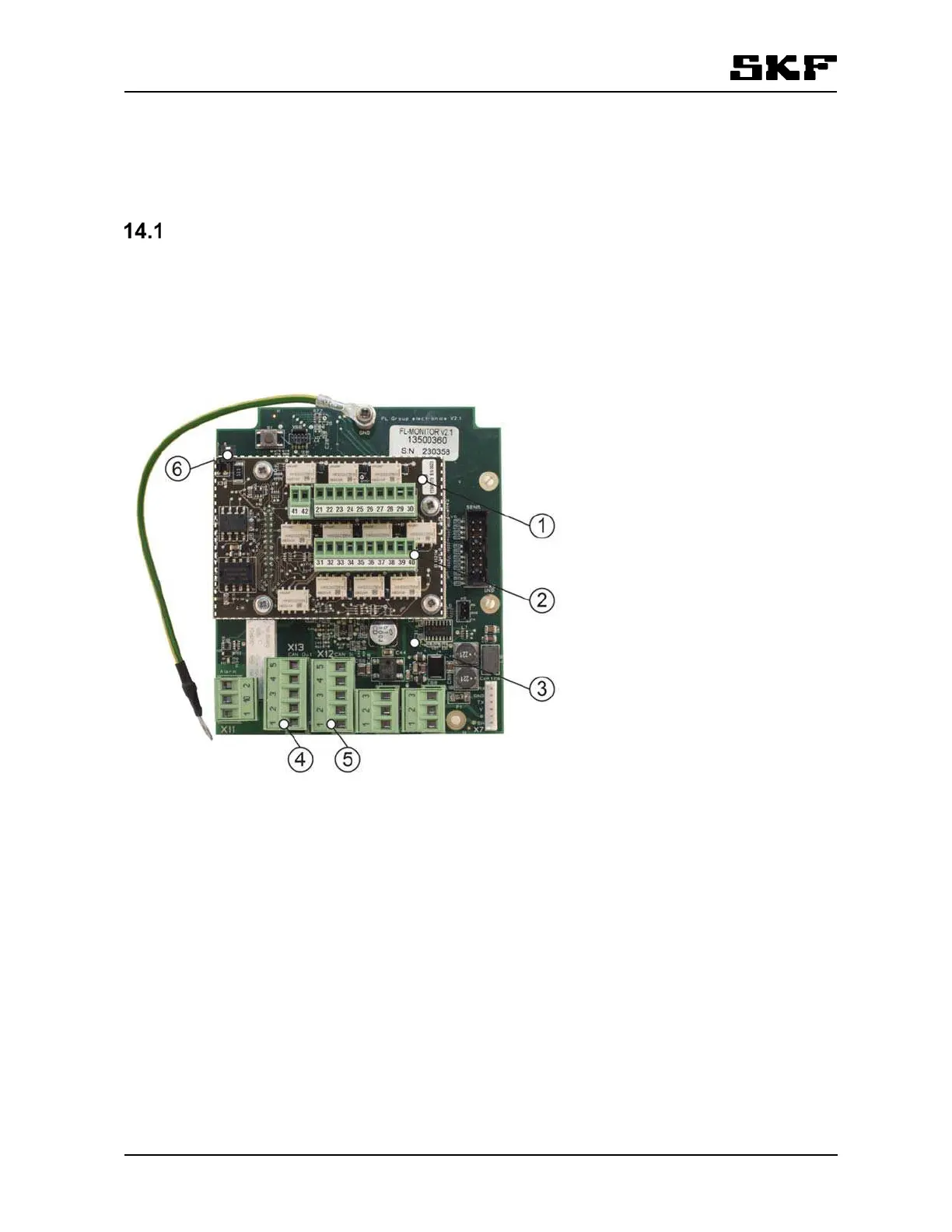

Figure 20 FL Group electronics with FL Relay-CAN board inserted
1. FL Relay – CAN module
2. Terminals for relay output
3. FL Group electronics module
4. Connector for CAN bus, X13 CAN out
5. Connector for CAN bus, X12 CAN in
6. CAN-bus termination resistor jumper
14.1.1 Relay general description
The module contains 11 relays that can be configured to versatile flow alarm modes. The relay functions are
configured using the local user interface of SKF Flowline monitor.
