15.3 Cable sockets

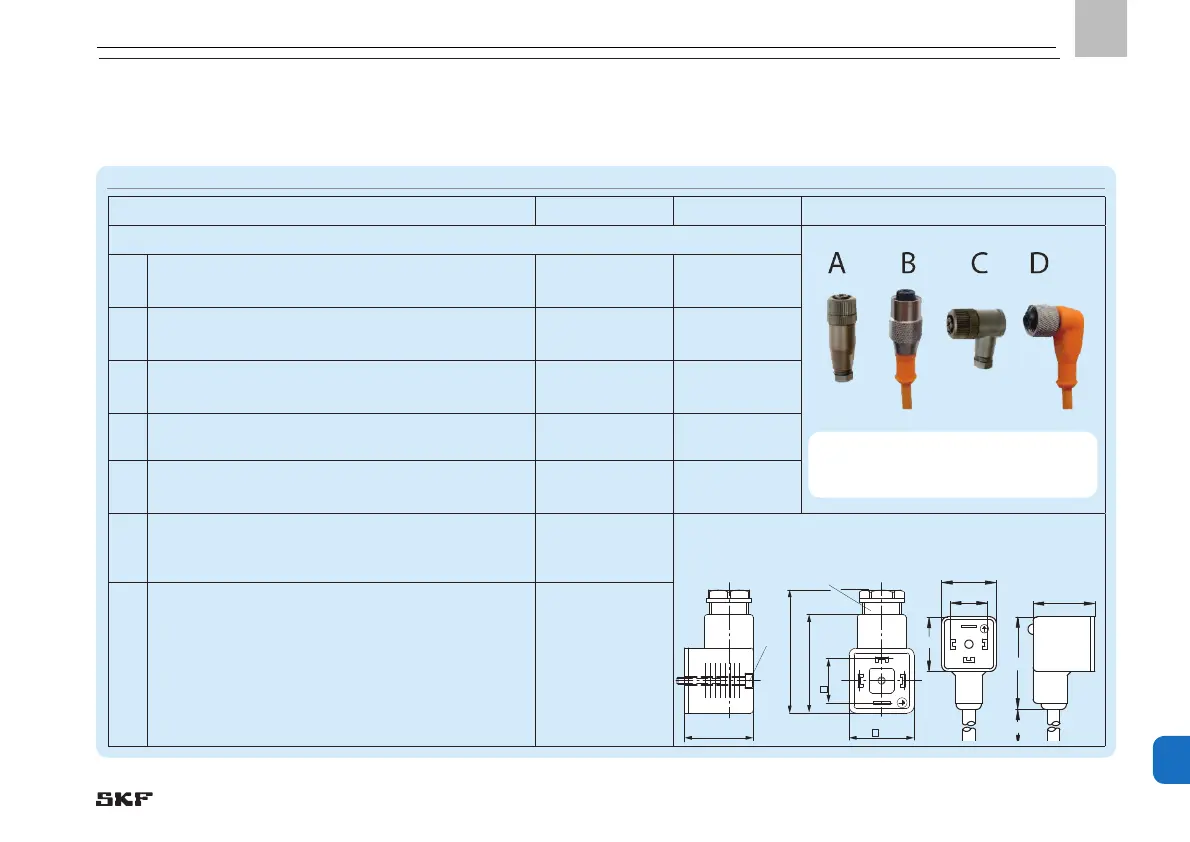

Fig. 52 Cable sockets
Designation Order No. Weight [g] Illustration
Cable sockets M12x1, 4-pin design, without LED
A
Circular connector, straight, without cable
diameter 4–6 mm, 4-pin, max. 0.75 mm²
179-990-371
15
B
Circular connector, straight, with 5-m integrally
extruded cable, 4-pin, 4×0.25 mm²
179-990-600
178
B
Circular connector, straight, with 10-m integrally
extruded cable, 4-pin, 4×0.25 mm²
179-990-603
325
C
Circular connector, angled, without cable
diameter 4–6 mm, 4-pin, max. 0.75 mm²
179-990-372
16
D
Circular connector, angled, with 5-m integrally
extruded cable, 4×0.25 mm²
179-990-601
182
E
Rectangular quick disconnect coupling without cable,
according to DIN EN175301-803-A, poles 3+PE,
maximum conductor cross-section 4x1.5 mm
2
179-990-033
F
Rectangular quick disconnect coupling wit 3 m cable,
according to DIN EN175301-803-A, poles 2+PE,
maximum conductor cross-section 3x0.75 mm
2
with polarity reversal protection and LED status
display
179-990-416
For other cable sockets and technical data,
please refer to brochure No. 1-1730-EN,
"Electrical Plug and Socket Connectors.”
2
1
3
27
45
"L"
18
27
30
Rectangular quick disconnect coupling
F
27
28
50
40
18
3
2
1
M3
Cable fitting
E
