3. Overview/functional description

3.4 Overview of VP progressive metering device series

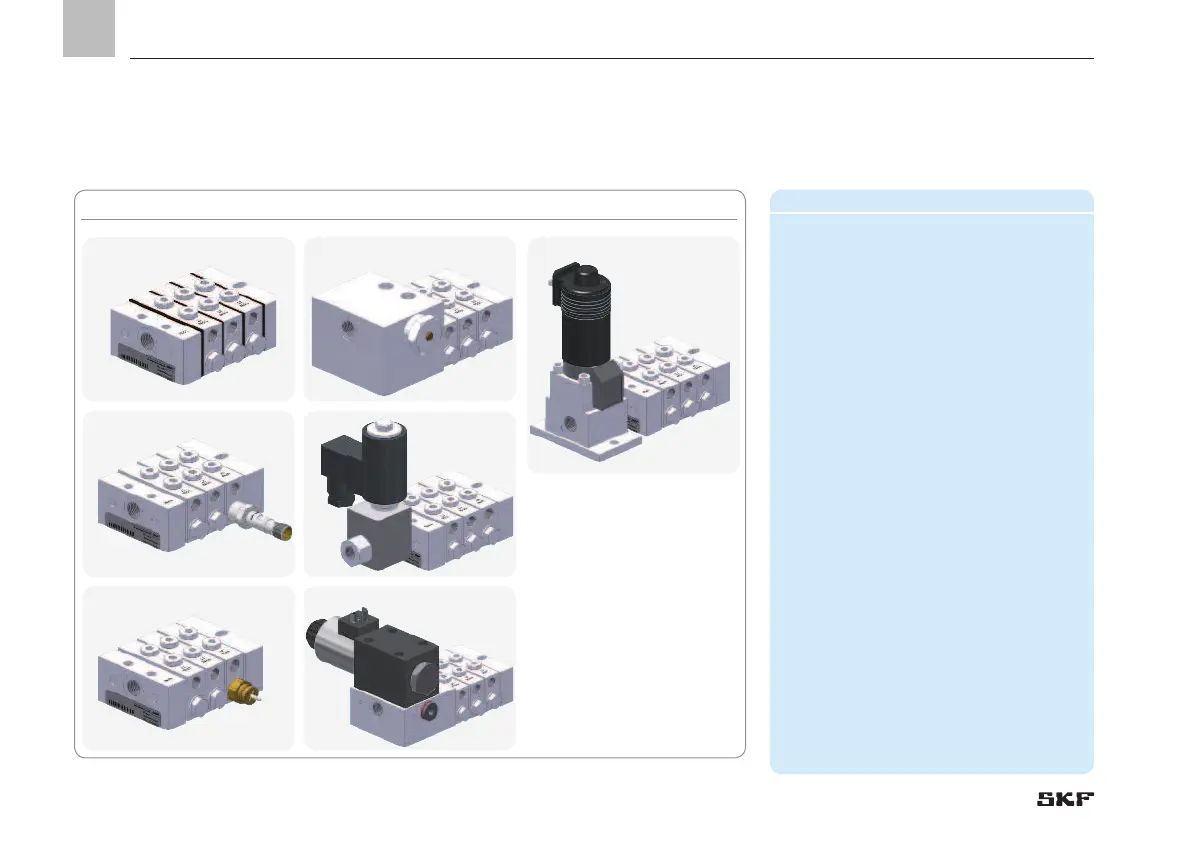

Fig. 4 VP progressive metering device series

Legend to Fig. 4

1 VP progressive metering device, basic

design for oil and grease, without attach-

ments, without monitoring

2 VP with piston detector

for oil or grease, monitoring types P2 and

P3 (electric monitoring)

3 VP with cycle indicator

for oil or grease, monitoring type ZY

(visual monitoring)

4 VP with flow limiter

for oil, attachment 07

5 VPG with 2/2 directional solenoid valve

for oil, attachment 13 with 2/2 directional

control valve, de-energized metering

device relieved, only for VPG

6 VP with 4/2 and 3/2 directional solenoid

valve for oil, attachments 08; 09; 14

7 VP with 2/2 directional solenoid valve

for grease, attachment 15 with

2/2 directional control valve,

de-energized, continuity to progressive

metering device closed
