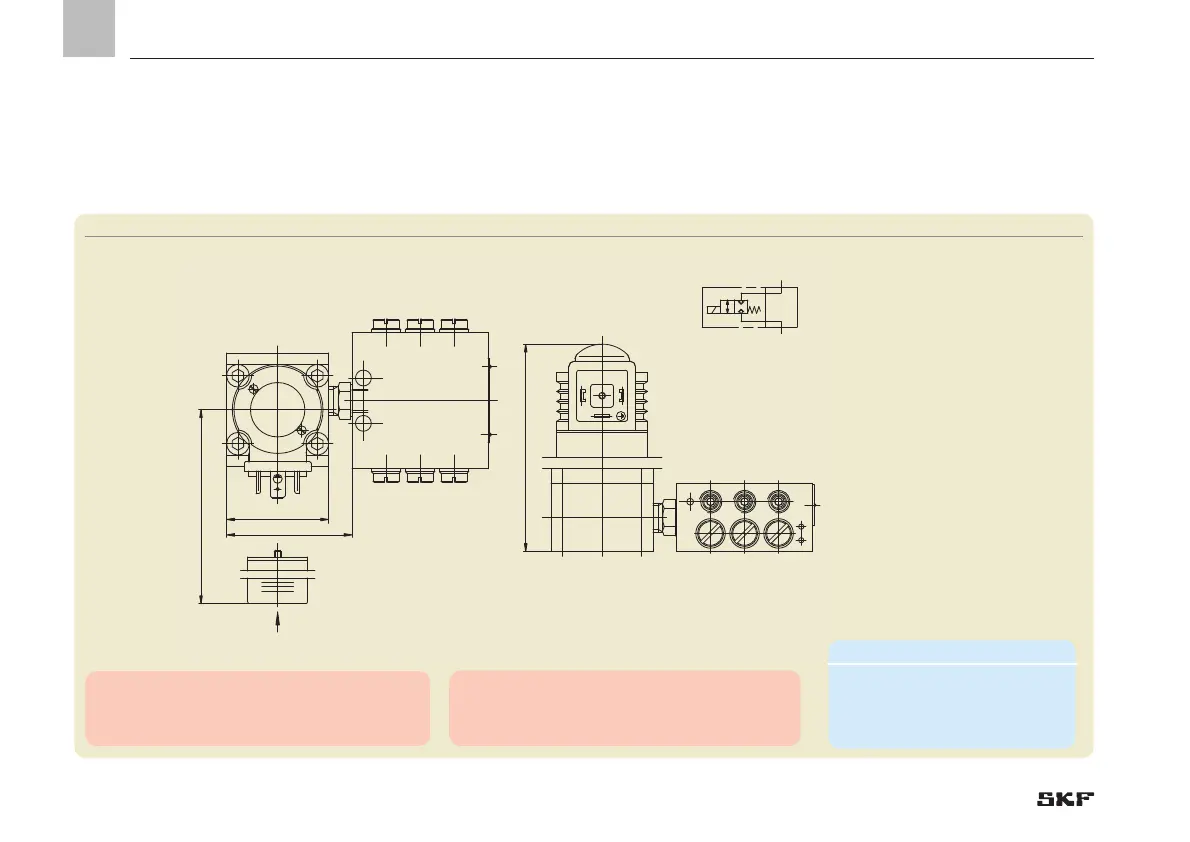

Fig. 35 VPB progressive metering device with 2/2 directional solenoid valve
6.5.4 VPB progressive metering device with 2/2 directional solenoid valve
for greases, attachment 15 with 2/2 directional solenoid valve, de-energized, continuity to progressive metering device closed
57
45
146.5
55
21 6 4
5 3
A
B
A
Ansicht A
Note!
Progressive metering device and directional so-
lenoid valve are delivered separately. They are
assembled by the customer.
View A
Attachment 15
Note!
Additional technical data on the cable sockets
can be found in brochure "Electrical Plug and
Socket Connectors,” brochure No. 1-1730-EN.
De-energized
Minimum mounting dimensions
W = width: 100 mm
H = height 155 mm
L = Length L+10 mm
- 76 -
951-230-008-EN
Version 04
