4. Technical data
4.4 Piston detectors

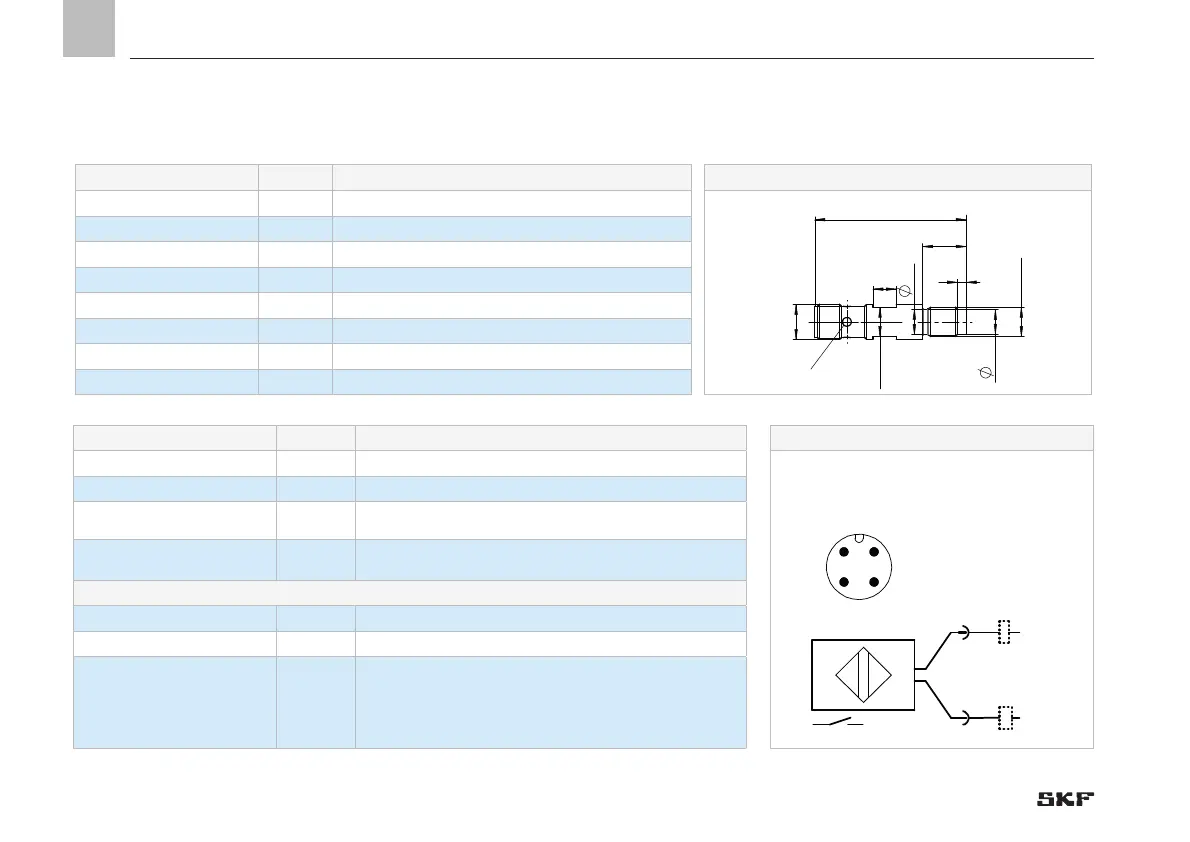

General data Designation Dimension drawing
Field of application Lubricant metering devices
Ambient temperature [°C] -40 ....+85
Principle of operation Piston detector/position sensor
Material Housing: Stainless steel; plug: PEI
Mounting type Mountable flush in associated adapter
Tightening torque [Nm] 7 ±0.5
Circuit state display LED Yellow/lights up on damping
Electrical connection M12x1 plug-in connection, gold-plated contact
Sensing range Universal piston detector
Sensing distance [mm] 2.6 condition on delivery
Effective sensing distance (Sr) [mm] 2.6 ±10%
Sensing distance after 3x
0....4.2 mm strokes
[mm] 3.3 ±20%, tracked
Hysteresis [% of Sr] ≤ 20 / ≤ 25, tracked
Accuracy/deviations
Switching point [% of Sr] ±10%
Reproducibility [% of Sr] ±10%
Permiss. operating pressure
with associated adapter
[bar]
Identical to permiss. operating pressure of the
progressive metering device in which the sensor with
adapter is installed
8,5
15
M10x0,8
52
SW10
M12x1
8
8,7
3
LED
