6.3.8 VP progressive metering device with 2/2 directional solenoid valve
for greases, attachment 15 with 2/2 directional solenoid valve, de-energized, continuity to progressive
metering device closed

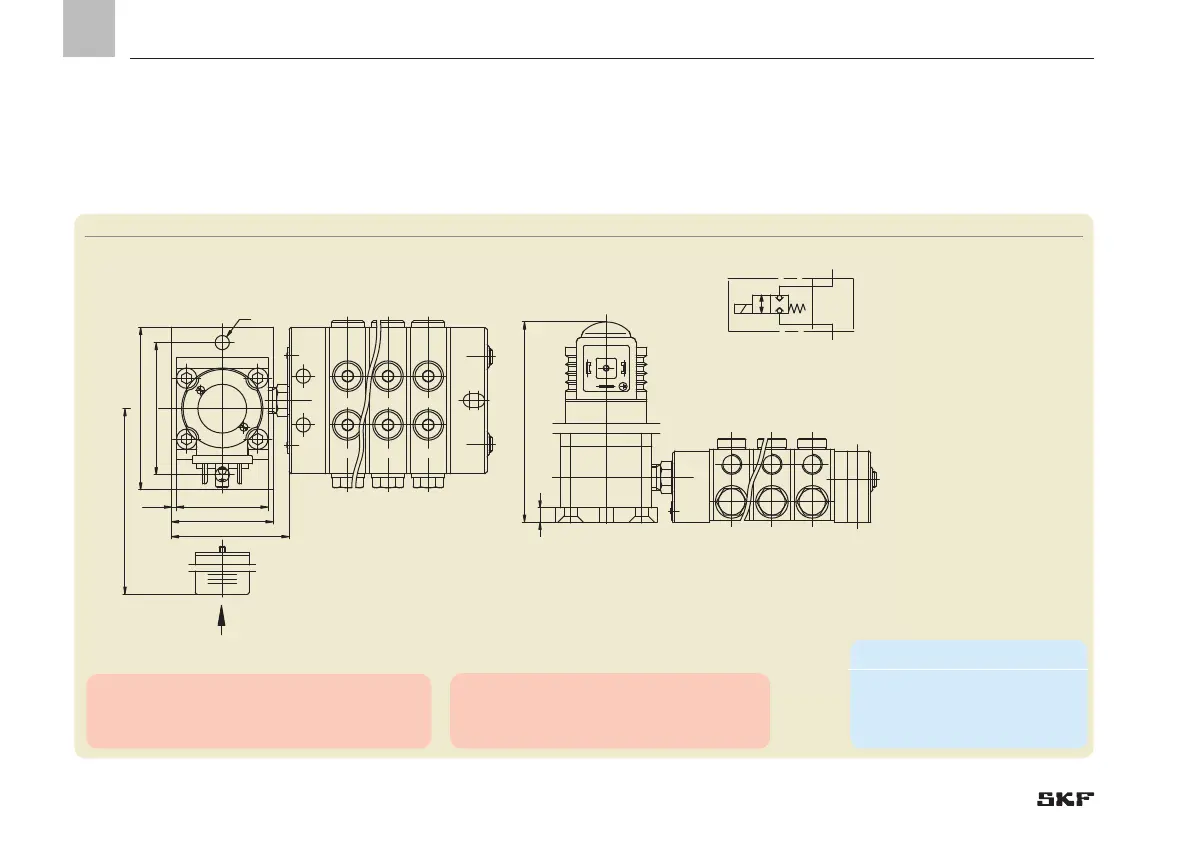

Fig. 18 VP progressive metering device with 2/2 directional solenoid valve
ca. 57.5
57
2.545
50
65
80
7
153.5
Ø7
A
B
VPMVPM
2T
3T
VPM
4T
A
Attachment 15
View A
Note!
Progressive metering device and directional
solenoid valve are delivered separately.
They are assembled by the customer.
Note!
Additional technical data on the cable sockets
can be found in brochure "Electrical Plug and
Socket Connectors,” brochure No. 1-1730-EN.
De-energized
Minimum mounting dimensions
W = width: 120 mm
H = height 170 mm
L = Length L2+60 mm
