6. Assembly
Monitoring types P2 and P3 (electric monitoring)

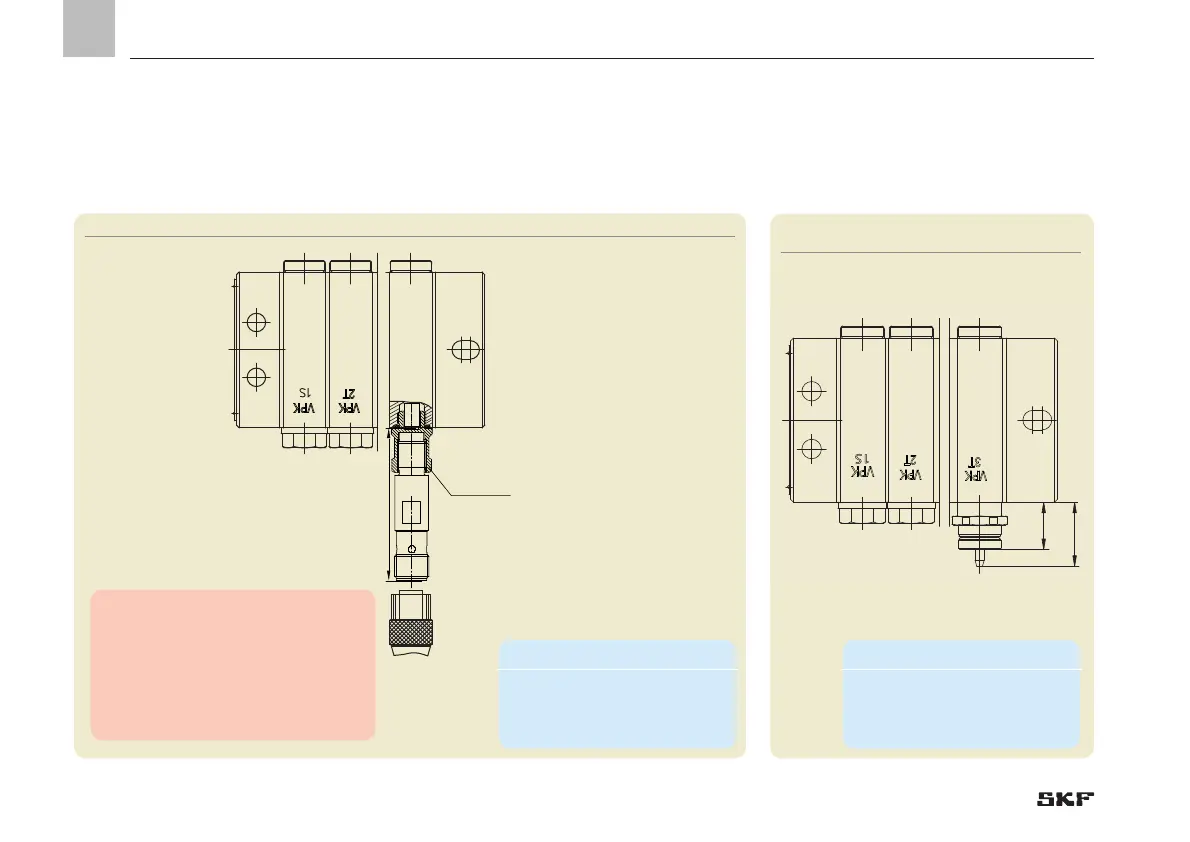

Fig. 23 VPK progressive metering device with piston detector
6.4.2 VPK with piston detector for oil or grease
VPKM
53,5
SW 12
44-0159-2508
1S
6.4.3 VPK progressive metering device
with cycle switch
for oil or grease, monitoring type ZY
Fig. 24 VPK progressive mete-
ring device with cycle indicator
VPKM
15,5
22,5
1S
Note!
For piston detector dimensions, see
Technical Data, Chapter 4.4.
Additional technical data on the cable
sockets can be found in brochure
"Electrical Plug and Socket Connec-
tors,” brochure No. 1-1730-EN.
Minimum mounting dimensions
W = width: 140 mm
H = height 40 mm
L = Length L2+10 mm
Minimum mounting dimensions
W = width: 110 mm
H = height 40 mm
L = Length L2+10 mm
- 62 -
951-230-008-EN
Version 04
EN
