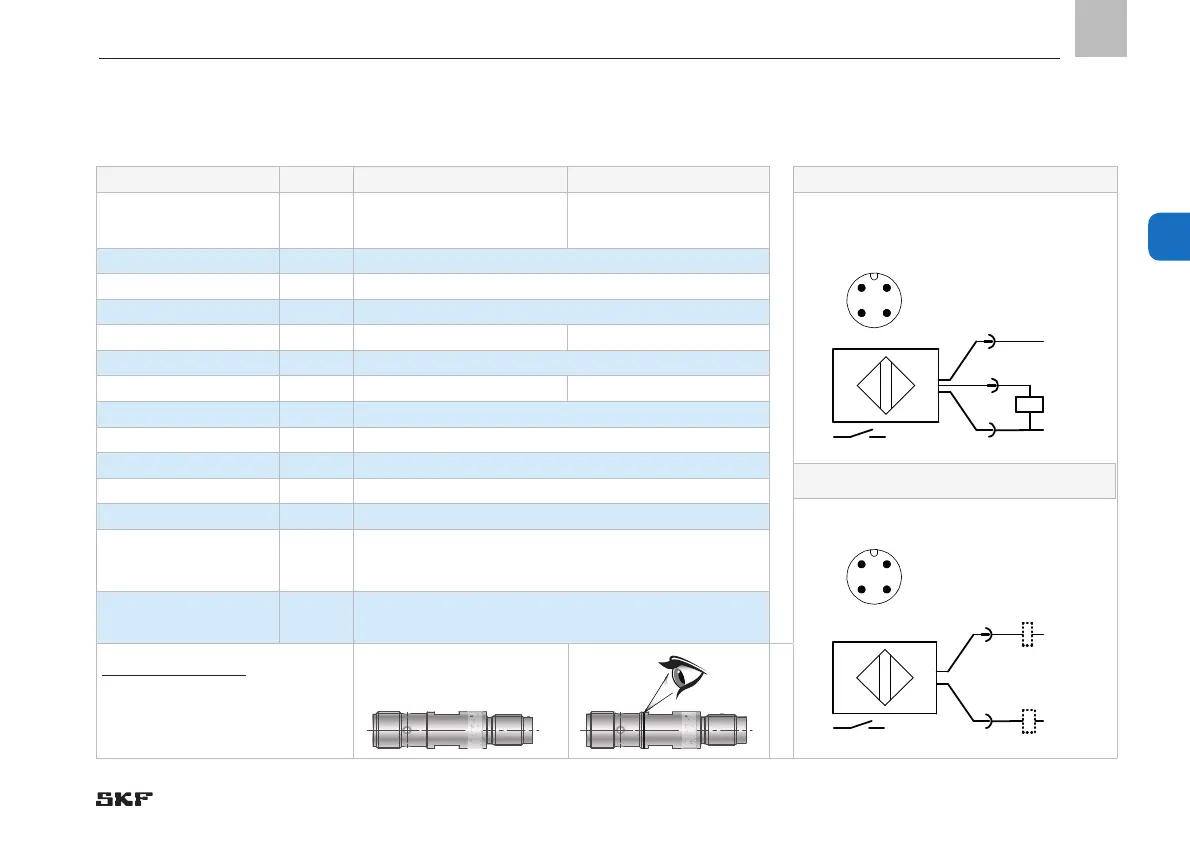

4. Technical data
4
Electrical data Universal piston detector Bipolar piston detector Universal piston detector
Design
3-wire DC PNP
2-wire DC PNP/NPN
2-wire DC PNP/NPN
Operating voltage [V] 10-36 DC, supply class 2 per cULus
Power consumption [mA] < 5
Safety class III
Polarity reversal protection Yes Reversible
Output function NO-contact
Voltage drop [V] 3.5 4.5
Minimum load current [mA] 5
Residual current [mA] < 0.8
Current-carrying capacity [mA] 100
Short-circuit-proof Yes
Overload-proof Yes
Switching frequency [Hz] 10, with damping surface Ø 4mm to 7 Hz
Protection class [IP]
IP65 / IP68 / IP69K; with cable box screwed
on properly
Visual differentiation
The bipolar piston detector is equipped
with a black marking ring.
