Section 05 TRANSMISSION
Subsection 02 (CLUTCH)
05-02-2 MMR2000_125_05_02A.FM
NOTE: Parts are not available separately. If clutch
no. 1 is damaged, replace clutch assembly.
REMOVAL
NOTE: Clutch can be removed without removing
brake. In that case drive chain no. 2 must be sep-
arated and removed first.
Lift hood.

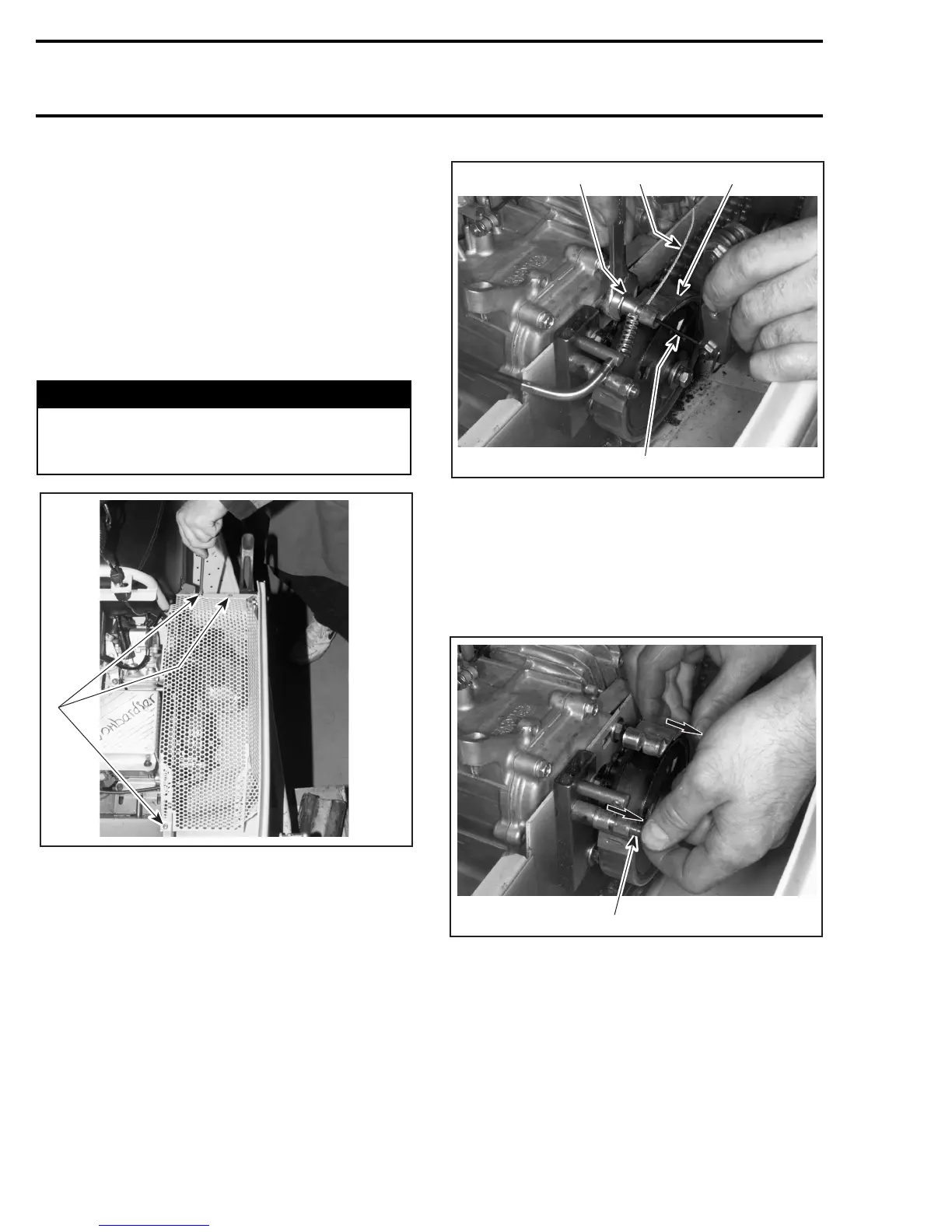

Remove chain guard retaining screws as shown in
the following photo and lift off guard.
1. Using a screwdriver, remove 3 screws
Brake Pad Removal
Using Allen key, unlock brake cable from brake
pad, as shown in the next photo.
UNLOCK BRAKE CABLE FROM BRAKE PAD
1. Brake pad
2. Brake cable
3. Unlock brake cable using Allen key
4. Hold screw head
Pull out brake cable from brake pad.
Remove elastic nut from pivot screw, then pull out
brake pad.
REMOVE BRAKE PAD
1. Pivot screw
WARNING
When removing chain guard, ensure that en-
gine is not running. Serious injuries may oc-
cur.
1
A31C0DA
A31D07A
1
3
24
A31D08A
1
