Section 05 TRANSMISSION
Subsection 03 (BRAKE)
05-03-4 MMR2000_126_05_03A.FM
ADJUSTMENT

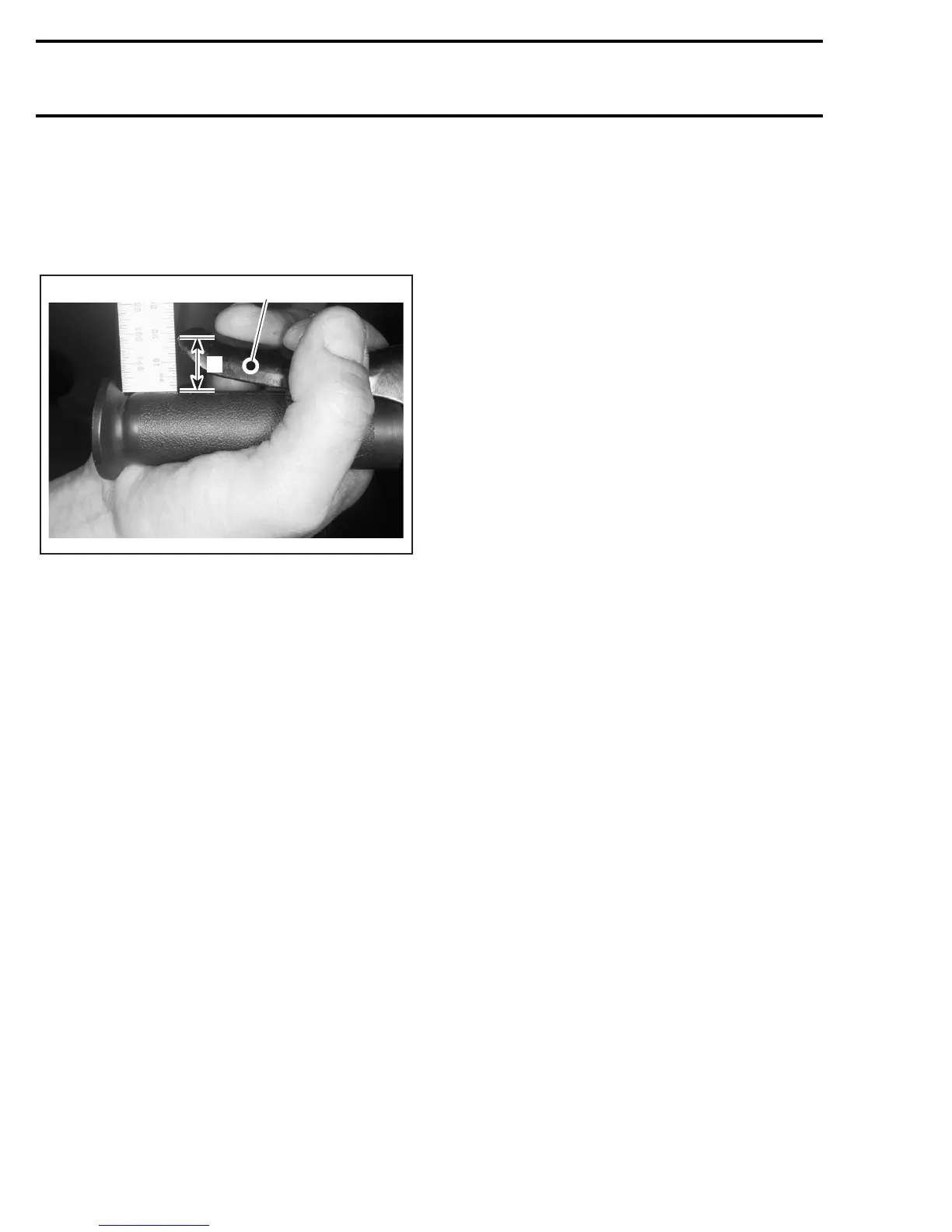

Fully apply brake with brake lever. If brake lever is
not within 15 mm (19/32 in) to 20 mm (25/32 in)
of the handlebar, readjust brake. Refer to the fol-
lowing photo.
1. Brake lever
A. If measurement is not within 15 mm (19/32 in) to 20 mm (25/32 in),
readjust brake
To adjust brake, loosen Allen screw then pull or
push on brake cable.
Retighten cable lock Allen screw.
Finally check brake adjustment.
A31D03A
