Section 06 ELECTRICAL
Subsection 03 (TESTING PROCEDURE)
06-03-2 MMR2000_129_06_03A.FM
Secondary Side
Bring multimeter selector switch to Ω position.
Remove spark plug cap by unscrewing cap from
cable.
NOTE: A false resistance reading will result if
spark plug cap is not removed.
Connect first multimeter probe to spark plug lead
wire then second probe to ignition coil iron core,
as shown in the next photo.

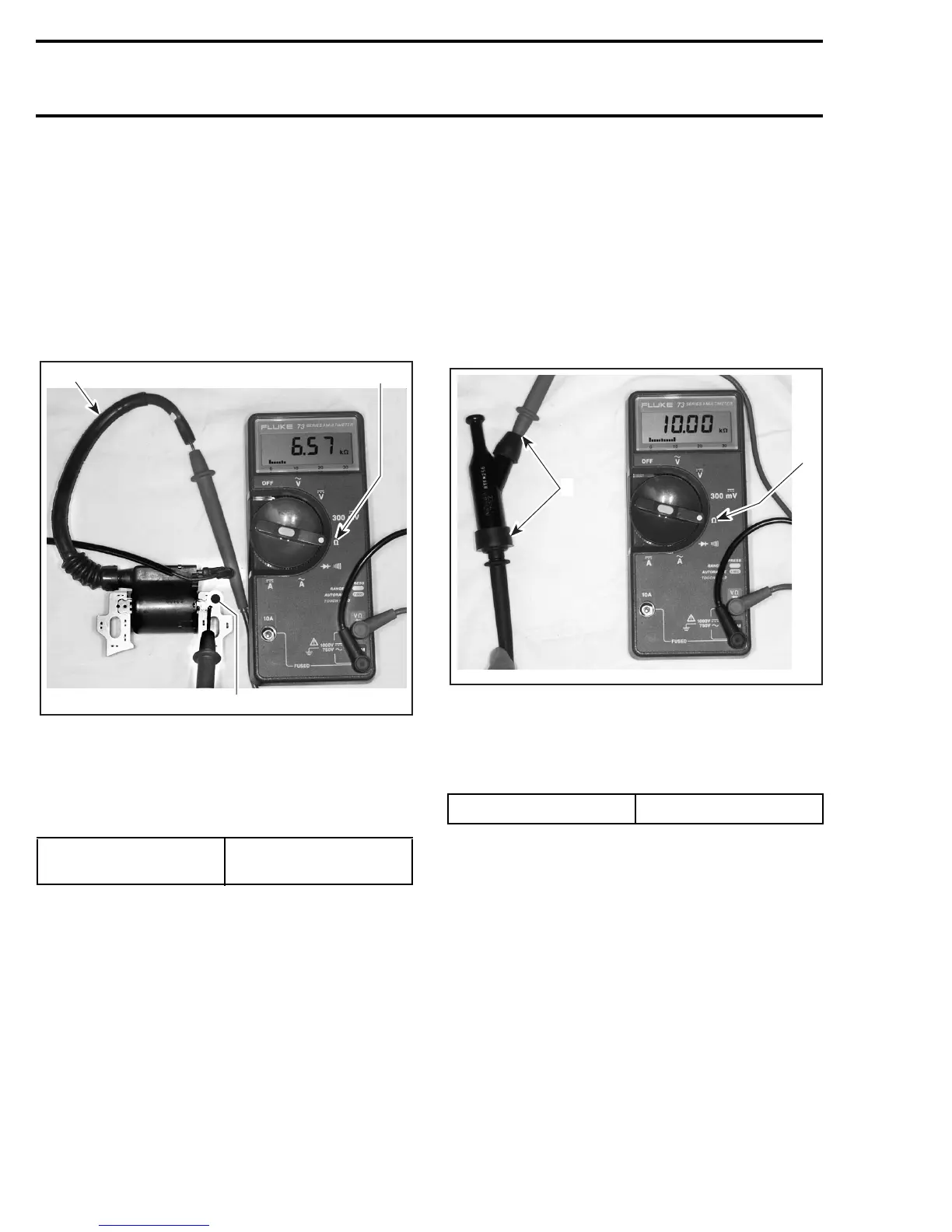

SECONDARY SIDE TESTING
1. Multimeter to
Ω position
2. Spark plug lead wire
3. Ignition coil iron core
The measured resistance should be according to
the following table. If not, replace ignition coil.
4. SPARK PLUG CAP TESTING
Remove spark plug cap by unscrewing cap from
cable.
NOTE: A false resistance reading will result if
spark plug cap is not removed.
Bring multimeter selector switch to Ω position.
Connect first multimeter probe to one end of the
spark plug cap then second probe to the other end
as shown in the next photo.
SPARK PLUG CAP TESTING
1. Multimeter to
Ω position
2. Spark plug cap end
The measured resistance should be according to
the following table. If not, replace spark plug cap.
SECONDARY SIDE
RESISTANCE VALUE
5.9 - 7.1 kΩ
3
2
A31E0GA
1
RESISTANCE 7.5 - 12.5 kΩ
A31E0HA
2
1
