Section 04 ENGINE
Subsection 07 (REWIND STARTER)
MMR2000_122_04_07A.FM 04-07-3
INSPECTION
Check rope no. 2 for fraying. Replace if so.
ASSEMBLY

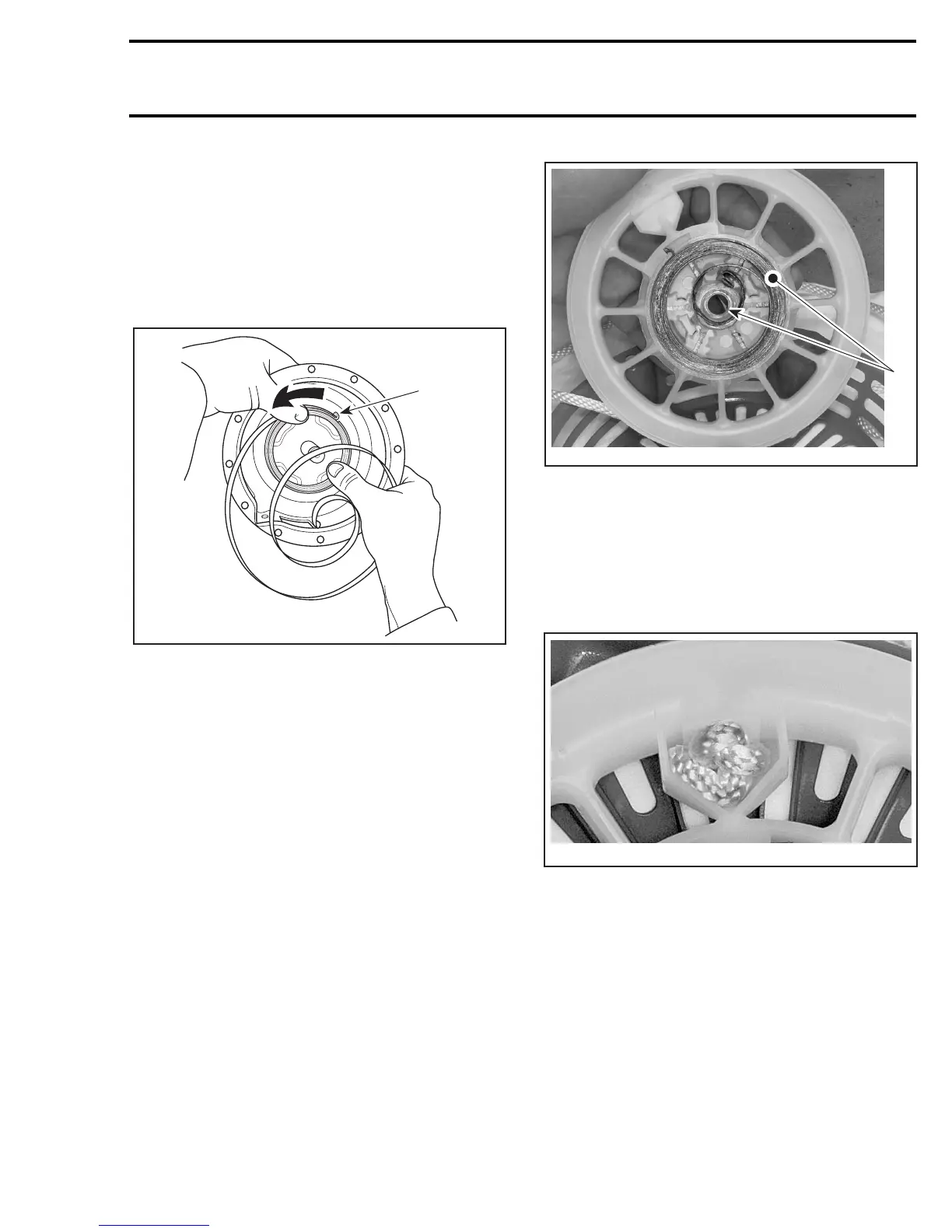

At assembly, position spring no. 11 outer end into
spring guide notch then wind the spring counter-
clockwise into guide.
TYPICAL
1. Outer end into guide notch
NOTE: Due to dust accumulation, rewind starter
must be periodically cleaned, inspected and relu-
bricated.
CAUTION: It is of the utmost importance that
the rewind starter spring be lubricated period-
ically using specific lubricants. Otherwise, re-
wind starter component life will be shortened
and/or rewind starter will not operate properly
under very cold temperatures.
Lubricate spring assembly with silicone com-
pound grease (P/N 420 897 061) and position into
starter housing as in the next photo.
1. Grease inside spring guide and sheave hub
CAUTION: The use of standard multi-purpose
grease could result in rewind starter malfunc-
tion.
To install a new rope:
Insert rope into sheave orifice and lock it with a
knot as illustrated.
ROPE KNOT INTO SHEAVE ORIFICE
A01C13A
1
A31C1CA
1
A31C1DA
